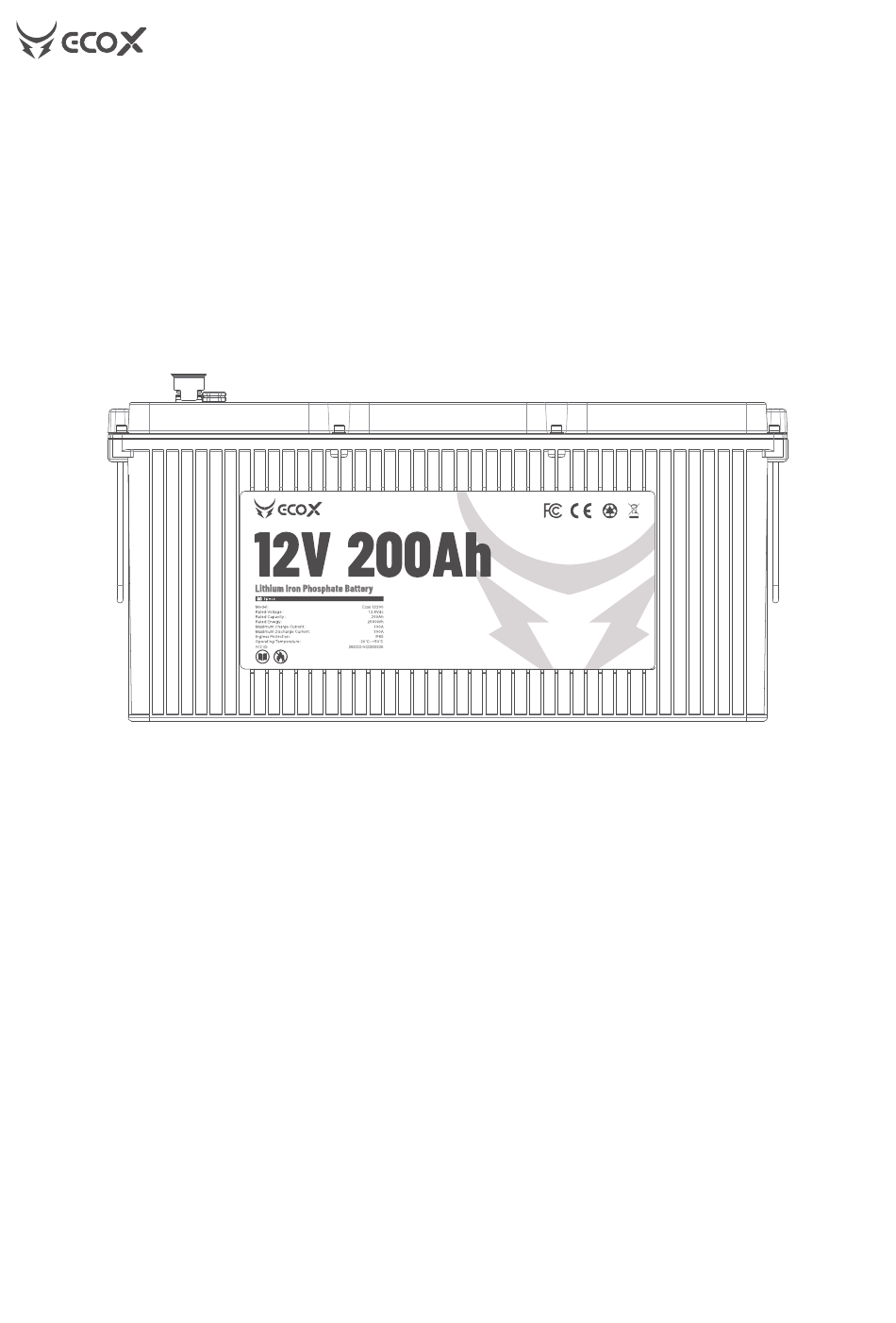

- Page 1 Smart Lithium Iron Phosphate Battery Ecox 12200 User Manual Information Version: 1.0...
- Page 3 Legal Information Copyright©2024 All rights reserved. Any reproduction or distribution of this manual or any part of this manual, or any uploading of this manual to a third party website, in any form by any means is prohibited. Disclaimer The Manual contains instructions for the use of the product. All the pictures and charts in this manual are for description and explanation only.
- Page 4 Safety Instructions Warning · The device should be used in strict compliance with local laws, electrical safety regula- tions, and fire prevention regulations of the nation or the region. · Do not place the device near open fire, heat sources and flammable materials. ·...
- Page 5 Safety Instructions Maintenance · Charge the device regularly. If you need to store the device for a long time, please charge it to 40% ~ 70% every time before storing it. · Recharge the device as soon as possible after it has been fully discharged. ·...
- Page 6 Contents 1 Introduction............................1 2 Packing List............................2 3 Interface............................2 4 Battery Installation..........................2 4.1 Tools and Accessories Preparation..................2 4.2 Pre-installation Check.......................3 4.3 Battery Connection........................3 4.4 Post-Installation Check......................6 5 Battery Activation..........................6 6 Battery Monitoring...........................7 6.1 App..............................7 6.2 Battery Networking........................7 7 Battery Storage..........................8 8 Battery Management System.....................8 9 Specifications..........................9 10 Troubleshooting..........................11...
- Page 7 Introduction Ecox 12200 is a smart lithium iron phosphate battery module. It is designed to replace deep cycle lead-acid batteries. With a standard BCI 4D size, it is perfect for recreational vehicles (RV), marine (boats), trucks, cabins, and other off-grid deep-cycle applications.
- Page 8 Packing List Insulating Cap × 2 Terminal Bolt × 2 2BOCO-ECOX12200 (M8 × 1.25 × 14 mm) Battery User Manual Interface Negative Pole Positive Pole Battery Installation Tools and Accessories Preparation Voltmeter Torque Wrench Wire Cutter Screwdriver...
- Page 9 Battery Installation Bus Bar Insulating Gloves Safety Goggles Pre-installation Check • Ensure that the battery is away from open flames, heat sources and flammable materials. • Cut off the power before wiring, installing or removing the battery. • To prevent electric shock, please remove watches, bracelets, rings and other conductive items (if any) and wear insulating gloves and safety goggles before installation.
- Page 10 Battery Installation 4.3.2 Multiple Batteries Connect batteries in series and parallel via power adapter cables to increases voltage and capacity. Caution • Check if the voltage difference between the batteries is less than 0.1 VDC before using them in series connection, or 0.5 VDC in parallel connection. If not, please balance the voltage first. Otherwise, over-current protection may be triggered due to the large voltage difference.
- Page 11 Battery Installation ① Connecting the Batteries in Parallel Method 1 (Optimal) Method 2 Voltage of Battery Pack (VDC) Current of Battery Pack (A) 12.8 Total Current of All Batteries Note Up to 8 batteries can be connected in parallel. The pictures above shows 4 batteries in parallel as an example.
- Page 12 Battery Installation Series Recommended Charging Voltage of Battery Pack (VDC) Current of Battery Pack (A) Configuration Voltage Value (VDC) 12.8 ~ 51.2 Current of Single Battery 14 ~ 14.6 28 ~ 29.2 Note 42 ~ 43.8 • Up to 4 batteries can be connected in series. 56 ~ 58.4 •...
- Page 13 Battery Monitoring You can finish battery networking, check battery information, complete remote upgrades and more through RE+ App. Google play Battery Networking •Basic Mode Before first use, follow "Connect" section in the App Quick Guide to Mobile Phone finish battery networking. Host Battery Note...
- Page 14 Battery Storage 1.Make sure the battery level is 2.Disconnect the battery from all external above 40% (Optimal 70%). devices (if present)..40%~70% 2200 2200 2BOCO -ECOX1 2BOCO -ECOX1 Loads Inverter Charger Other Batteries 4.Store the battery in a well-ventilated, 3.Turn off the battery.
- Page 15 Specifications Electrical Specification Nominal Voltage 12.8 VDC 200 Ah Nominal Capacity < 10 mΩ Resistance Efficiency ≤ 3% per month Self Discharge 4S4P Max. Batteries in Parallel or Series ﹥ 4000 (80% DOD, 0.5 C, 25 °C) Cycle Life (25°C) ≥...
- Page 16 Specifications Mechanical Specification Dimensions 18.07 in × 7.48 in × 9.23 in (L × W × H) (459 mm × 190 mm × 234.5 mm) Weight Approx. 46.08 lbs (20.9 kg) Terminal Type Terminal Torque 9 ± 1 N·m Case Material IP65 IP Rating Other...
- Page 17 Troubleshooting My battery won’t turn on? Check if the charger output is normal. Check if the charger is connected properly. Contact your distributor. My battery won’t turn off? Disconnect all external devices, and the battery will turn off after 24 hours of inactivity. My battery won’t charge? Restore the battery by discharging it.
