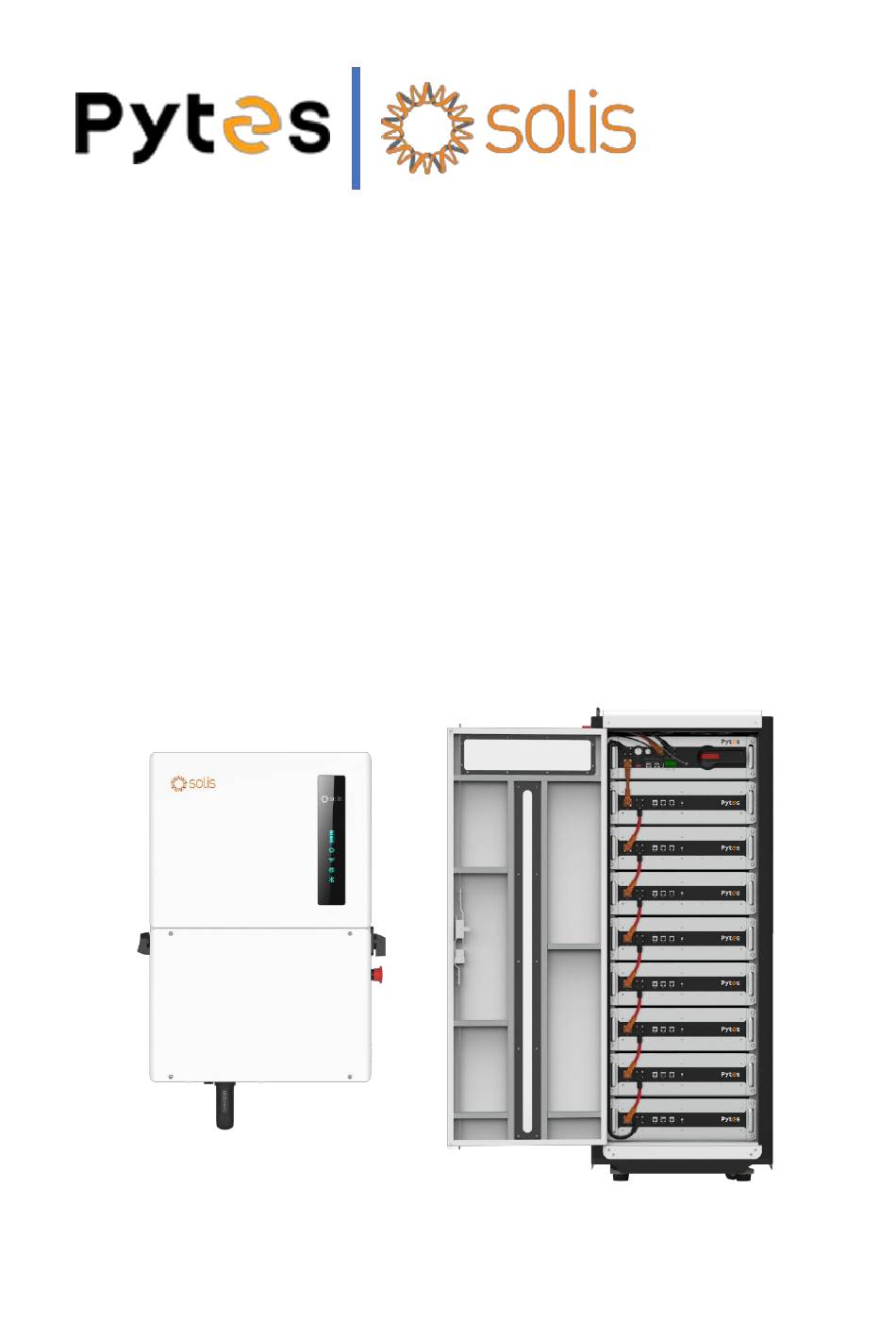

- Page 1 Installation and Configuration Manual With Solis Pytes Lithium Battery HV48100 With Solis Inverter...
-
Page 2: Table Of Contents
Content WARNING ................................2 Prepare Tools ................................3 Check BOM List ..............................3 Connect Power Cable............................4 Install WIFI Receiver ............................5 Connect Communication Cable ........................6 Set DIP Switch ...............................7 Start System up ..............................8 Monitor System ..............................11... -
Page 3: Warning
Before connecting Please check products and components according to enclosed packing list after unpacking. Please contact PYTES if there is any damage or missing of products and / or components. Make sure power sources are cut off and battery system is powered off before installation. -
Page 4: Prepare Tools
Prepare Tools Before installation, prepare the following tools to ensure your safety. Check BOM List Before installation, you should prepare following items. Item Quantity PYTES HV48100 Battery Solis Inverter Positive Power Cable Negative Power Cable Communication Cable... -
Page 5: Connect Power Cable
Connect Power Cable Step 1 Double-check to ensure the battery power switch is in the off position before operation. Step 2 Open the cabinet and plug the positive and negative power cables into the battery power terminals. Step 3 Connect the opposite ends of the positive and negative power cables to the corresponding positive and negative terminals of the inverter. -
Page 6: Install Wifi Receiver
Step 4 Double-check to ensure that the positive terminal of the battery is connected to the positive terminal of the inverter, and the negative terminal of the battery is connected to the negative terminal of the inverter. Install WIFI Receiver Step 1 Screw the WIFI receiver in. -
Page 7: Connect Communication Cable
Connect Communication Cable Step 1 Connect one end of the communication cable to the CAN port of the battery. Step 2 Connect the opposite end of the communication cable to the BMS_CAN_H and BMS_CAN_L ports of the inverter. (Blue line to BMS_CAN_H and blue-white line to BMS_CAN_L) -
Page 8: Set Dip Switch
Set DIP Switch Step 1 Check to ensure that the isolation switch is in off position. Step 2 Set the DIP switch to the position as shown in the following pictures. -
Page 9: Start System Up
Start System up Step 1 Open the isolation switch. Step 2 Power on the physical switch. - Page 10 Step 3 Press the SW button for 1 second. Step 4 Ensure that the indicator is lighting.
- Page 11 Step 5 Ensure that the panel light is on.
-
Page 12: Monitor System
Monitor System Step 1 Download SolisCloud App from Google Play store or Apple App store. Step 2 Open the App and click More Tools. - Page 13 Step 3 Click Local Operation. Step 4 Click Connect With WiFi.
- Page 14 Step 5 Wait for the device to be detected and click it. Step 6 Click Select Account Type, choose Installer, and click Verify.
- Page 15 Step 7 Click Settings. Step 8 Click Battery Setting.
- Page 16 Step 9 Click Battery Model. Step 10 Ensure Lithium battery HV is selected and click Save.
- Page 17 Step 11 Return back to Home page and click Info. Step 12 Click Battery tab to check battery information.
- Page 18 Step 13 Check system running.
