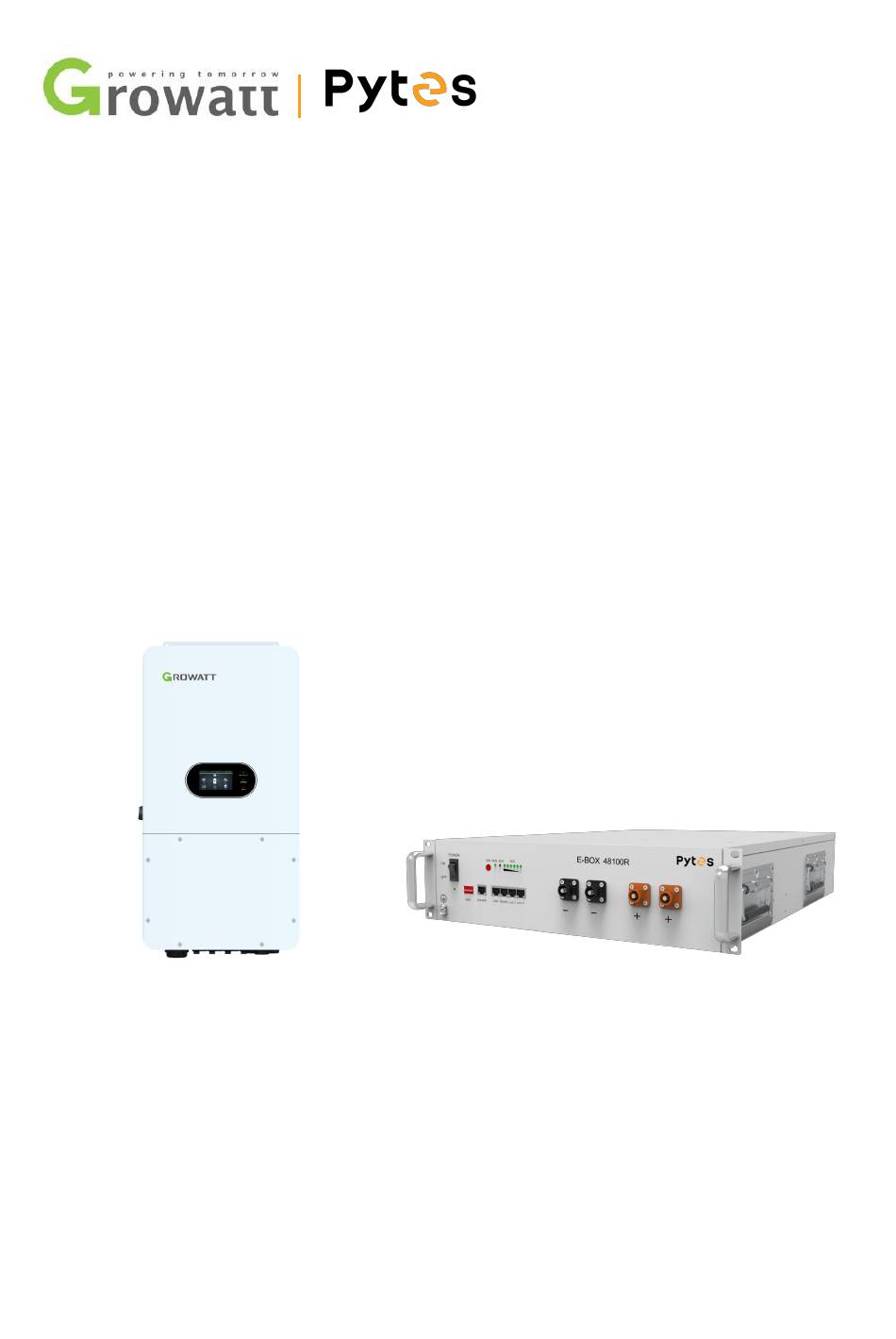

- Page 1 Installation and configuration manual With Growatt SPH_10000TL-HU Pytes Lithium Battery E-BOX series With Growatt SPH_10000TL-HU...
- Page 2 BOM LIST Before installation, you should prepare following items. Item Remarks Quantity ☐ Conductor cross-section: 50 mm² to 95 mm² ☐ Cable diameters: 14 mm to 25 mm Depends on the number of ☐ Only copper cables may be used. Power Cable batteries and the ☐...
- Page 3 CAN port definition Version of 48100R Pin number of com. cable A version B and C version RS485 port definition Version of 48100R Pin number of com. cable A version B and C version...
- Page 4 HOW TO INSATLL communication cable Power cable connection connection Start up the system Set the DIP switch change the battery Check the battery soc setting of the inverter CAUTION: If you want to get more inverter-related settings, please refer to the inverter user manual first.
-
Page 5: Power Cable Connection
1. Power Cable Connection Step.1 Open the front housing of the Growatt SPH_10000TL-HU. Step.2 Connect the red and black cables to the inverter DC connector as shown in Pic 1.1.1. Pic 1.1.1 Step.3 At the other end of the cable, connect to the battery as shown Pic 1.1.2.（Ensure that the battery power switch is off）... -
Page 6: Communication Cable Connection
2. Communication Cable Connection Connect the end of the cable to the inverter communication port as shown in pic 1.2.1. Make sure which communication port to use. Pic 1.2.1 The battery supports both CAN and RS485 protocol. Choose one port shown in pic 1.2.1 and using the corresponding port.(Ensure the correct sequence of communication cable) Pic 1.2.2... - Page 7 3. Set The DIP Switch Set the DIP switch as shown in Pic 1.2.3. Version of 48100R ADD setting A and B version C version Pic 1.2.3 4. Start up the system Start up the inverters and batteries. 5.Change the battery setting of the inverter ※...
- Page 8 Pic 2.2.1 Pic 2.2.2 Step2. Turn to the 3/4 page, set the lithium mode to 00 if you use RS485 communication. If you use CAN communication, set the lithium mode to 01. Pic 2.2.4...
- Page 9 6.Check the battery soc Touch the battery icon of the inverter’s touch panel. Pic 3.1.1 The details of the battery will be shown on the parameter if the connection between battery and inverter is correct. Pic 3.1.2 Please refer to the Growatt inverter manual for more settings.
