1313DXT-I/1515DXT-I/2520DX-I/3030DX-I X-ray Detectors

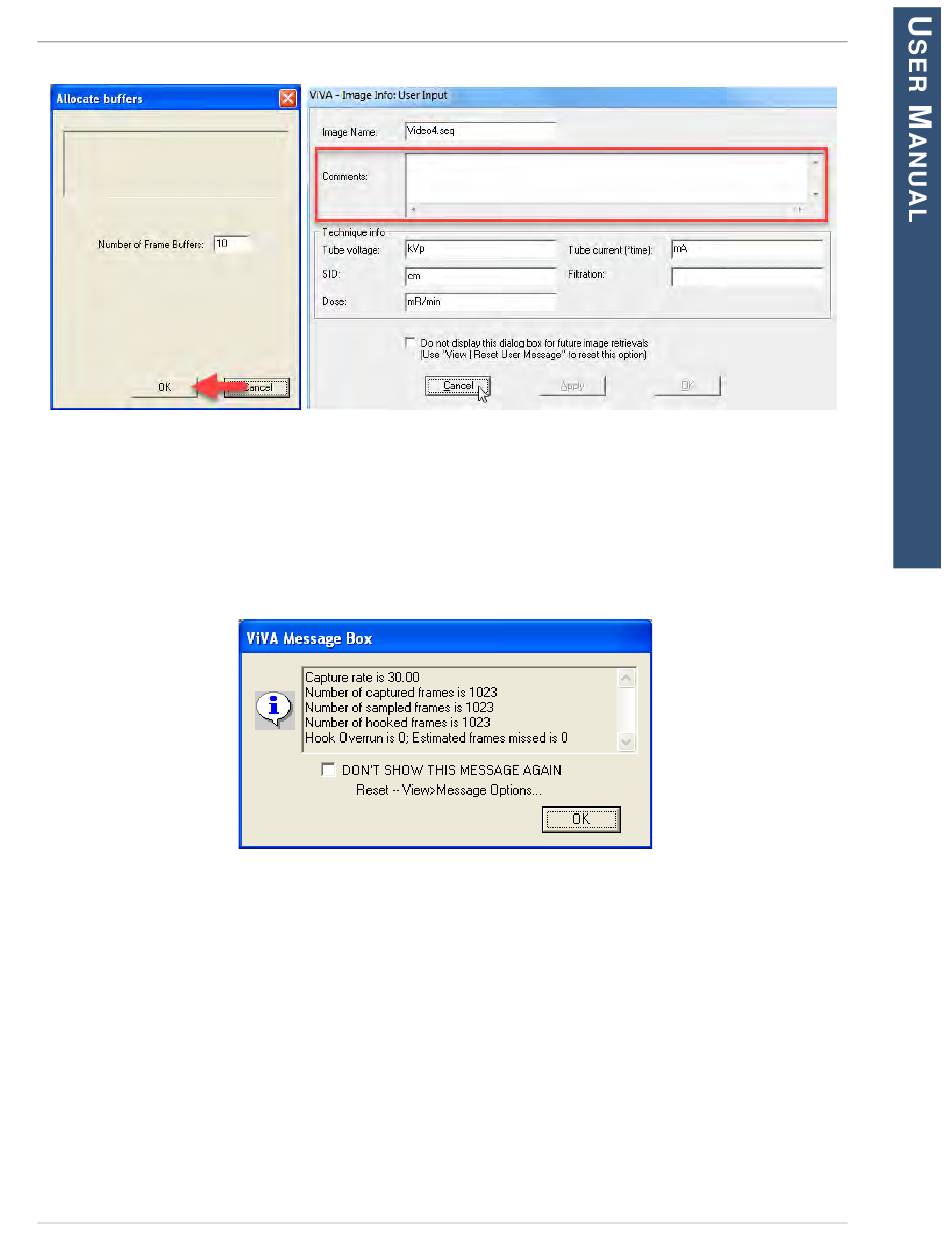

Figure 48 Buffer Allocation and User Comment Windows

Enter user comments if necessary.
4
Click OK.
5
If no comments are entered, click Cancel to continue.
6
Following acquisition, a message box appears, providing active image capture data.
7

Figure 49 Capture Data

Click OK.
8
Save the acquired image by selecting File from the menu bar and click on Save As.
9
Select the seq/avi file format.
10
www.vareximaging.com 45
