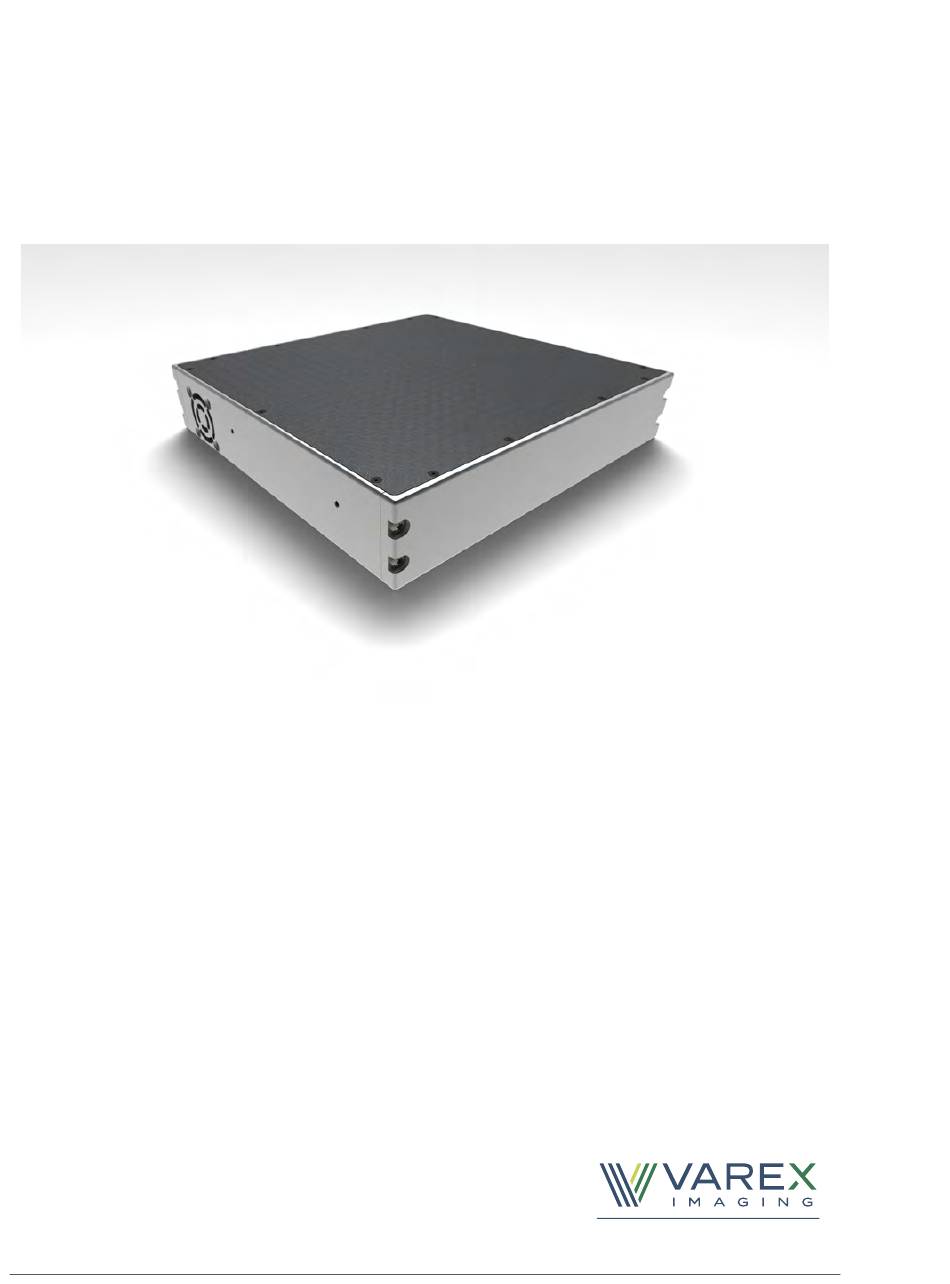

2315NDT v2 CMOS X-ray Detector
Before using the flat panel X-ray detector please be sure to read these instructions
thoroughly, along with any other documentation provided for software and/or other
system components.
Keep these instructions easily accessible for future reference.
Making the Invisible Visible
Advertisement
Table of Contents
Related Manuals for Varex Imaging 2315NDT
Summary of Contents for Varex Imaging 2315NDT
- Page 1 2315NDT v2 CMOS X-ray Detector Before using the flat panel X-ray detector please be sure to read these instructions thoroughly, along with any other documentation provided for software and/or other system components. Keep these instructions easily accessible for future reference.
- Page 2 • In no event is Varex Imaging liable for direct, indirect, or consequential injury, damage, or loss of equipment operation time or image data arising from the use of the X-ray detector, its components, and/or accessories.
- Page 3 2315NDT v2 CMOS X-ray Detector User Manual Meaning of Alerts and Notes This indicates a potentially hazardous situation which, if ignored, may WARNING result in severe personal injury, death, or substantial product damage. This indicates a potentially hazardous situation which, if ignored, may Caution result in minor or moderate personal injury or damage to the product.
- Page 4 Installation and Environment for Use 2315NDT v2 CMOS X-ray Detector User Manual An Image Quality Test or Customer Acceptance test should be WARNING performed before the detector is used for the first time The Original Equipment Manufacturers (OEMs) of X-ray systems or...
- Page 5 2315NDT v2 CMOS X-ray Detector User Manual Interface and Power Unit and Cables Be sure to turn off the power of the X-ray detector, including turning WARNING off the power supply or removing the battery (if applicable) before servicing, maintaining, connecting, or disconnecting the cables or accessories.
- Page 6 Handling 2315NDT v2 CMOS X-ray Detector User Manual Handling Never disassemble, modify, or alter the X-ray detector, its components, WARNING or accessories. Ignoring this warning may cause electrical shock and/or unknown hazards, which may result in severe personal injury, death, or substantial product damage.
- Page 7 2315NDT v2 CMOS X-ray Detector User Manual Maintenance and Inspection Turn off the power for the X-ray detector when the inspections WARNING indicated in this manual are going to be performed. Ignoring this warning may result in electric shock, which may result in severe personal injury, death, or substantial product damage.
- Page 8 2315NDT v2 CMOS X-ray Detector User Manual This page intentionally left blank. viii www.vareximaging.com...
-
Page 9: Table Of Contents
Table of Contents Scope ............. . . 1 Usage . - Page 10 External DC Power Supply Requirements ....... . . 22 16.1 2315NDT Detectors Voltage Requirements....... . 23 17.0 Permanent Mounting .
- Page 11 2315NDT Front Panel........
- Page 12 List of Figures 2315NDT v2 CMOS X-ray Detector User Manual This page intentionally left blank. www.vareximaging.com...
- Page 13 Frame Readout Time for 2315NDT ....... . 29...
- Page 14 List of Tables 2315NDT v2 CMOS X-ray Detector User Manual This page intentionally left blank. www.vareximaging.com...
-
Page 15: Scope
Manufacturers are responsible for qualifying, validating, and certifying their products for their intended uses and meeting all applicable regulatory requirements. The 2315NDT CMOS X-ray detector contains specific models for which the main difference is the scintillator or X-ray shielding of the flat panel X-ray detector. Final application and intended use is determined by the X-ray system manufacturer and is based on the completed X-ray system design. -
Page 16: Interferences With Other Devices
Comparison of v1 and v2 Detectors The 2315NDT detector is based on a CMOS 1512 v2 sensor, which is an update of the already existing v1 sensor, used previously. The aim of the update was to implement functional and per- formance improvements and to solve some known issues, and meanwhile keep the detectors backwards compatible. - Page 17 2315NDT v2 CMOS X-ray Detector User Manual Table 1 List of discrepancies between v1 and v2 detectors Parameter v1 sensor v2 sensor Readout column There are 6 readout columns There is a dead column in each sensor (x=9 evenly spread in each sensor.
-
Page 18: Table 1 List Of Discrepancies Between V1 And V2 Detectors
2315NDT v2 CMOS X-ray Detector User Manual Table 1 List of discrepancies between v1 and v2 detectors (Continued) Parameter v1 sensor v2 sensor Trigger sources Software Software External edge External edge External duration External duration (Continuous mode only) Sensitivity LFW... -
Page 19: Abbreviations
2315NDT v2 CMOS X-ray Detector User Manual Abbreviations Table 2 includes a list of abbreviations used in this manual and a description of each abbreviation. Table 2 Abbreviations Abbreviation Description Analog-to-digital Converter Application Programming Interface Bayonet Neill–Concelman Camera Link Data acquisition... -
Page 20: References
2315NDT v2 CMOS X-ray Detector User Manual Table 2 Abbreviations (Continued) Software trigger/SyncIn signal WEEE Waste electrical and electronic equipment Number References Table 3 includes a list of documents referred to in this manual. For access to the following references, contact your establishment’s representative or your dealer, distributor, or device manufacturer. -
Page 21: Definition Of Symbols
Read the instruction manual. Manufacturer‘s name and address. Date of Manufacture, YYYY-MM, where YYYY=Year, MM=Month OR Date of Manufacture, YYYY-MM-DD, where YYYY=Year, MM=Month, DD=Day REF = Reference Number. Varex Imaging Catalogue Number, Part Number, or Material Number. Serial Number. D.C. Voltage. - Page 22 2315NDT v2 CMOS X-ray Detector User Manual Table 4 Symbols (Continued) Indicates temperature limits within which the transport package shall be stored and handled. The box bearing this symbol is recyclable. Atmospheric pressure limitation. Reusable. www.vareximaging.com...
-
Page 23: Standards, Directives And Regulations
Detectors employ Lead as exempted under Annex III Item 13(a) and Annex IV Item 5. b. Per Article 33, Detector components contain Lead Oxide. 12.0 Storage and Use 2315NDT flat panel X-ray detectors can be used or stored within the conditions listed in Table Table 6 Storage and Use Conditions... -
Page 24: Description Of The X-Ray Detector
Varex Imaging CMOS flat panel X-ray detectors are supplied to X-ray equipment manufacturing companies to be incorporated as a component of a larger system (see Figure They may be supplied with optional power supply units and cables, upon request. -
Page 25: Detector Functions
13.3 Detector Design Varex Imaging CMOS detectors use CMOS image sensors. The 2315NDT uses a sensor with 74.8 µm pixel pitch. The 2 sensors are tiled, the gap between active pixels across the butting gap is one pixel wide (74.8 μm). -
Page 26: Power Supply
Camera Link (CL) Medium 80 MHz (2 cables) interface. 13.4 Power Supply All Varex Imaging CMOS flat panel X-ray detectors require a DC power supply. For details of the power requirements, see Section 16.0. -
Page 27: Servicing
WARNING permitted. If the detector is used in a manner not specified by Varex Imaging, the protection provided by the equipment may be impaired. The service and repair of the detector unit should only be carried out by a qualified Varex Imaging service agent. -
Page 28: Getting Started
Varex Imaging CMOS flat panel X-ray detectors are designed to be used Note as components of an X-ray system and are supplied for integration in X-ray systems only. The development kit, which is supplied by Varex Imaging, includes the following items: • Detector unit •... -
Page 29: Installing And Connecting The Detector
14.1 Installing and Connecting the Detector Use the following steps to install and connect a Varex Imaging CMOS flat panel X-ray detector and to capture a first raw X-ray image. The detector and associated components should only be installed and... -
Page 30: Signal Levels
Input current high 6.4 mA 72 mA Table 10 shows the Sync input signal levels on the trigger connectors for 2315NDT. The core is the positive terminal while the shell is the negative terminal. Table 10 Sync Output Port specifications... -
Page 31: Installing The Detector
2315NDT v2 CMOS X-ray Detector User Manual 14.1.2 Installing the Detector To install and connect the detector: Install the Intel Epix E8 frame-grabber in the host PC. (Further information can be found in the Dexela X-ray Detector Software Manual) Install the detector unit below the X-ray source with the emission collimated to the active area. -
Page 32: Figure 3 Dark Image
2315NDT v2 CMOS X-ray Detector User Manual An image similar to Figure 3 should be visible. Position an X-ray opaque object (such as a metallic pen or phantom test piece) diagonally on the detector surface, near the center. Figure 3 Dark Image Set the generator to 50 kV, 32 mA (with an SID of 60 cm). -
Page 33: Producing A Corrected X-Ray Image
2315NDT v2 CMOS X-ray Detector User Manual 14.3 Producing a Corrected X-ray Image To obtain a corrected X-ray image, the detector shall be calibrated. The calibration is in three steps: Dark current (offset) calibration. Flood field (gain) calibration. Defect corrections. -
Page 34: Figure 5 Sample Image
2315NDT v2 CMOS X-ray Detector User Manual • Auto-descramble • Dark correction • Gain correction • Defect correction Place a phantom or a test object on the detector surface, within the FoV With the X-ray beam on, capture a single image by clicking Snap. -
Page 35: Powering-Down The Detector
2315NDT v2 CMOS X-ray Detector User Manual 14.4 Powering-down the Detector To power down the detector: Close SCap. Unplug the AC cable of the power supply to turn off the detector. 15.0 Calibration and Image Quality Guidelines SCap provides image processing stages that compensate for the following imperfections of the X-Ray system and detector: •... -
Page 36: Image Quality Guidelines
• The Varex Imaging CMOS flat panel X-ray detector is designed for maximum sensitivity to X-rays, enabling optimal image quality for a low dose exposure. In some situations, a higher dose is used to improve the image quality, but this may cause the pixels to saturate. -
Page 37: 2315Ndt Detectors Voltage Requirements
2315NDT v2 CMOS X-ray Detector User Manual Power supply voltages must be high enough to overcome a WARNING voltage drop caused by conductor resistance in the cables, especially where thinner conductors are used in flexible cables for rotating or moving platforms. -
Page 38: Permanent Mounting
The detector MUST be cooled via forced air cooling system. WARNING The 2315NDT has forced air cooling provided by fans, which run in the powered-on state. The air flowing through the detector is sufficient to cool the unit without relying on conductive or convective cooling provided that the air flows into the entrance fan from the outside of the X-ray housing, and is expelled such that it does not loop back into the fan inlet. -
Page 39: Figure 7 Cooling Airflow
2315NDT v2 CMOS X-ray Detector User Manual Figure 7 Cooling Airflow On the left, correct air flow with baffles preventing re-circulation. On the Note right, wrong air flow where air flows back to inlet fan. www.vareximaging.com... -
Page 40: External Connection
2315NDT v2 CMOS X-ray Detector User Manual 18.0 External Connection Varex Imaging CMOS flat panel X-ray detectors can be used in a stand-alone mode, where the detector image acquisition is triggered by software (using the data interface) while X-rays are controlled separately. -
Page 41: Continuous Readout - Software Trigger
2315NDT v2 CMOS X-ray Detector User Manual Triggering the detector is the attempt to synchronize the detector to other devices, for example, other X-ray sources that have their specific schemes of radiating X-ray pulses. In Continuous readout mode there are three trigger sources available: •... -
Page 42: Table 12 Software Trigger Values For Continuous Readout
2315NDT v2 CMOS X-ray Detector User Manual Table 12 Software Trigger Values for continuous readout. Detector exposure windows Minimum = 200 µs SyncOut pulse width. Due to (not including the frame latency in the optocoupler, a Table 13 on readout T pulse sent to the output has an additional 100 µs duration. -
Page 43: Figure 9 Sync Connection For Software Trigger
X-ray emissions. This must be compensated by increasing the programmed exposure window , so that the frame readout does not start before the X-ray emission has finished. The frame readout time and fps of 2315NDT detectors are shown in Table... -
Page 44: Continuous Readout - External Edge Trigger
2315NDT v2 CMOS X-ray Detector User Manual 19.1.2 Continuous Readout - External Edge Trigger In External Edge Trigger, the detector is triggered by an external signal, for example, Pulse Generator. The detector exposure time is pre-defined by the software (SCap or API). In SCap, this source is selected by using Configuration –... -
Page 45: Continuous Readout - External Duration Trigger
2315NDT v2 CMOS X-ray Detector User Manual In this case, the Sync In pulse is driven high when the user activates the ‘Expose’ button for the X-ray equipment. With the change of the Sync Out level the generator is informed that the... -
Page 46: Figure 12 Continuous Readout - Duration Trigger Schematic
2315NDT v2 CMOS X-ray Detector User Manual Figure 12 shows a schematic example of this trigger. Table 14 lists the timing values. The falling edge of the SyncOut 2 signal is designed to facilitate the synchronization between detector and generator as it is coupled with the end of the readout cycle. -
Page 47: Continuous Readout - Expose And Read
2315NDT v2 CMOS X-ray Detector User Manual Figure 13 displays an example of the External Duration Trigger configuration. Figure 13 Sync Connection for Duration Trigger 19.1.4 Continuous Readout - Expose and Read In Expose and read, the detector receives a trigger and grabs an image (see Figure 14). -
Page 48: Continuous Readout - Frame-Rate Exposure
2315NDT v2 CMOS X-ray Detector User Manual Figure 15 Continuous readout - Sequence exposure timing 19.1.6 Continuous Readout - Frame-rate Exposure In Frame-rate exposure, the detector receives a trigger and grabs a pre-determined number of images with a specified gap-time between exposures (see Figure 16). -
Page 49: Continuous Readout - Pre-Programmed Exposure
2315NDT v2 CMOS X-ray Detector User Manual 19.1.7 Continuous readout - Pre-programmed Exposure Figure 17 Continuous readout - Pre-programmed exposure, two images example timing In Pre-programmed exposure, the detector receives a trigger and grabs a pre-determined number of images that can have different detector exposure times (see Figure 17 ). -
Page 50: Idle Readout - Software Trigger
2315NDT v2 CMOS X-ray Detector User Manual The Exposure modes for multiple images acquisition with one trigger (Sequence, Frame-rate and Pre-programmed) shown in “Readout Mode ‘Continuous’” on page 26 are not available in Idle mode as the exposure window is determined by the distance of the trigger sent and not via register. -
Page 51: Idle Readout - External Edge Trigger
X-ray emissions. This must be compensated by increasing the delay between trigger so that the frame readout does not start before the X-ray emission has finished. The readout time and fps of 2315NDT detectors are shown in Table 13 on page 19.2.2... -
Page 52: Figure 19 Idle Readout - Edge Trigger Timing
2315NDT v2 CMOS X-ray Detector User Manual In Idle mode, T is not defined on the detector but it is determined by the interval between trigger (minus T ) so the time between trigger (minus the readout time T ) defines the... -
Page 53: Idle Readout - Expose And Read
2315NDT v2 CMOS X-ray Detector User Manual 19.2.3 Idle Readout – Expose and Read In Idle mode, the first trigger will read out the accumulated dark current and then starts the exposure. A second trigger is needed to read out the exposed image (see Figure 20). -
Page 54: Disposing Of The X-Ray Detector
These other manufacturers are directly responsible for the collection and processing of their own waste products under the terms of the WEEE Directive. Contact these producers directly before discarding any of their products. Consult the Varex Imaging web site (above) for pro- ducer names and web addresses. -
Page 55: Appendix A - Technical Drawings
2315NDT v2 CMOS X-ray Detector User Manual 21.0 Appendix A – Technical Drawings www.vareximaging.com... - Page 56 2315NDT v2 CMOS X-ray Detector User Manual This page intentionally left blank. www.vareximaging.com...
- Page 57 Index Numerics 2315NDT Detectors Voltage Requirements Embedded Features External Connection External DC power supply requirements Abbreviations External Edge Trigger Appendix A – Technical Drawings Audience Getting Started Calibration Dark current Idle readout – Expose and read Flood field Idle readout - External Edge Trigger fully corrected image Idle readout –...
- Page 58 Index 2315NDT v2 CMOS X-ray Detector User Manual Gain Correction Linearity Correction SCap Image Correction Functions Scope Servicing Software Trigger Standards, Directives and Regulations Storage and Use Usage Varex Imaging 2315NDT CMOS X-ray Detector www.vareximaging.com...
- Page 59 2315NDT v2 CMOS X-ray Detector User Manual This page intentionally left blank.
- Page 60 ©2023-2024 Varex Imaging All rights reserved. The Varex Imaging logo and design are registered trademarks of Varex Imaging or its subsidiaries, in the United States and other countries. Paxscan is a registered trademark and ViVA is a trademark of Varex Imaging. All other trademarks not owned by Varex Imaging or its subsidiaries that are depicted herein are the property of their respective owners.
