1313DXT-I/1515DXT-I/2520DX-I/3030DX-I X-ray Detectors
8.3.1

Cables

For illustration purposes only, detector is representative of the family of detectors.

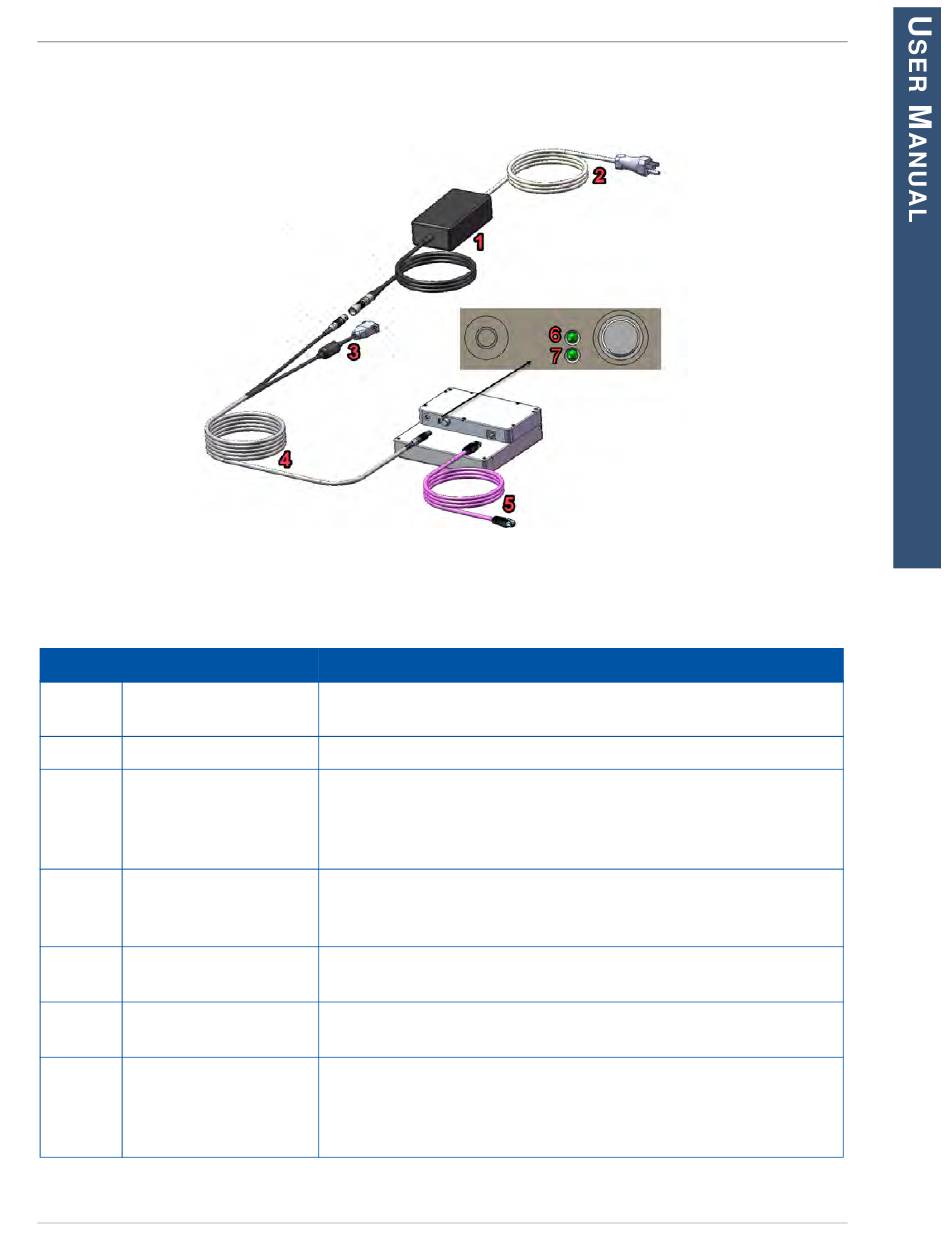

Figure 4 Cable Connections
Table 6 Cable Names & Descriptions
Number Cable
1
Power Supply
2 Mains
Receptor Sync to Gen-
3
erator
4
Detector Cable
5
Gigabit Ethernet Cable
6 LED 1
7 LED 2
Provides power to the detector. See
power requirements.
AC Power Cord
Provides the user with a means to synchronize the end-user
system-level application with the detector. This connector provides
the connections for two opto-isolated signals, one output and one
input. See Section 8.8.
Terminates into two separate connections, providing a link from
the detector to the power supply and to the user's
X-ray generator equipment.
Connects to the NIC card on the user's workstation and provides
interface between the user's workstation and the detector.
Power indicator, if User_Sync is applied the LED will blink at the
User_Sync frame rate.
Acquisition frame rate indicator, if Internal Sync is selected the
LED will flash at the Internal Sync frame rate. If User_Sync is
selected, the LED will flash at the User_Sync frame rate (should
match LED 1).
www.vareximaging.com
Description
Section 8.5 for detector DC
