Table 13 User Sync Pulse Duration and Response
User_Sync Pulse Duration User_Sync Pulse Response
Pulse Duration < 200µs User_Sync signal is ignored
Detector is readout and Valid Image bit is set to 1 in
200µs < Pulse Duration < 4ms
Diagnostic Data. VCP ignores the image data.
Detector is readout and Valid Image bit is set to 0
Pulse Duration > 4ms
and the frame is handled normally.
User_Sync Blanking is activated/de-activated through a register in the detector configuration
file. In both cases, the detector readout is triggered after the rising edge of the User_Sync pulse.
The minimum User_Sync pulse width is 200µs.

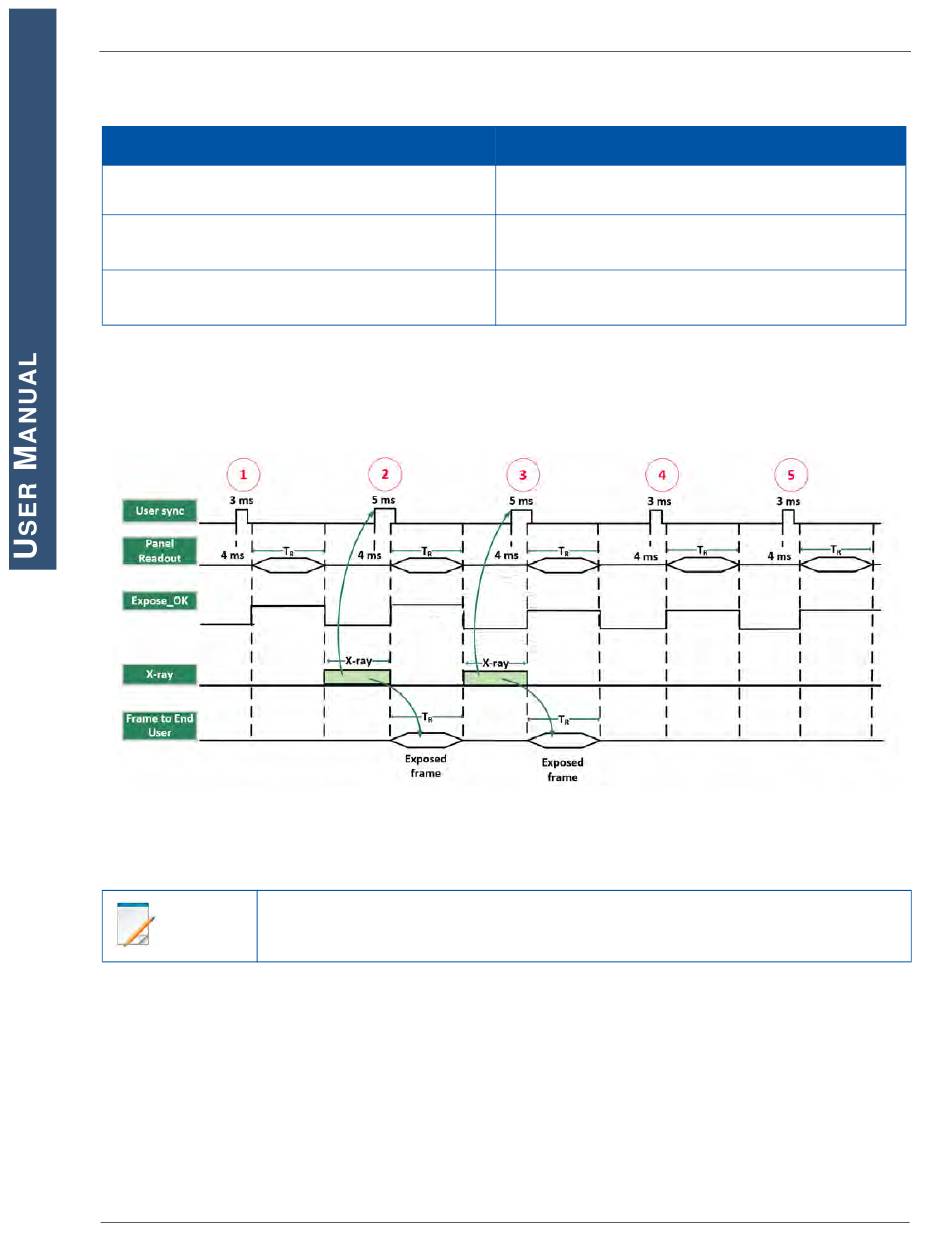

Figure 11 User_Sync Blanking Activated

The detector readout time may vary and depends on the detector mode.
