10.4

ViVA Mode and System Settings

Perform the following steps to adjust the ViVA mode settings.
Ensure that the link to the VCP is established. See step 4 of
1
Click on the Mode Drop Down Menu and click the desired mode.
2

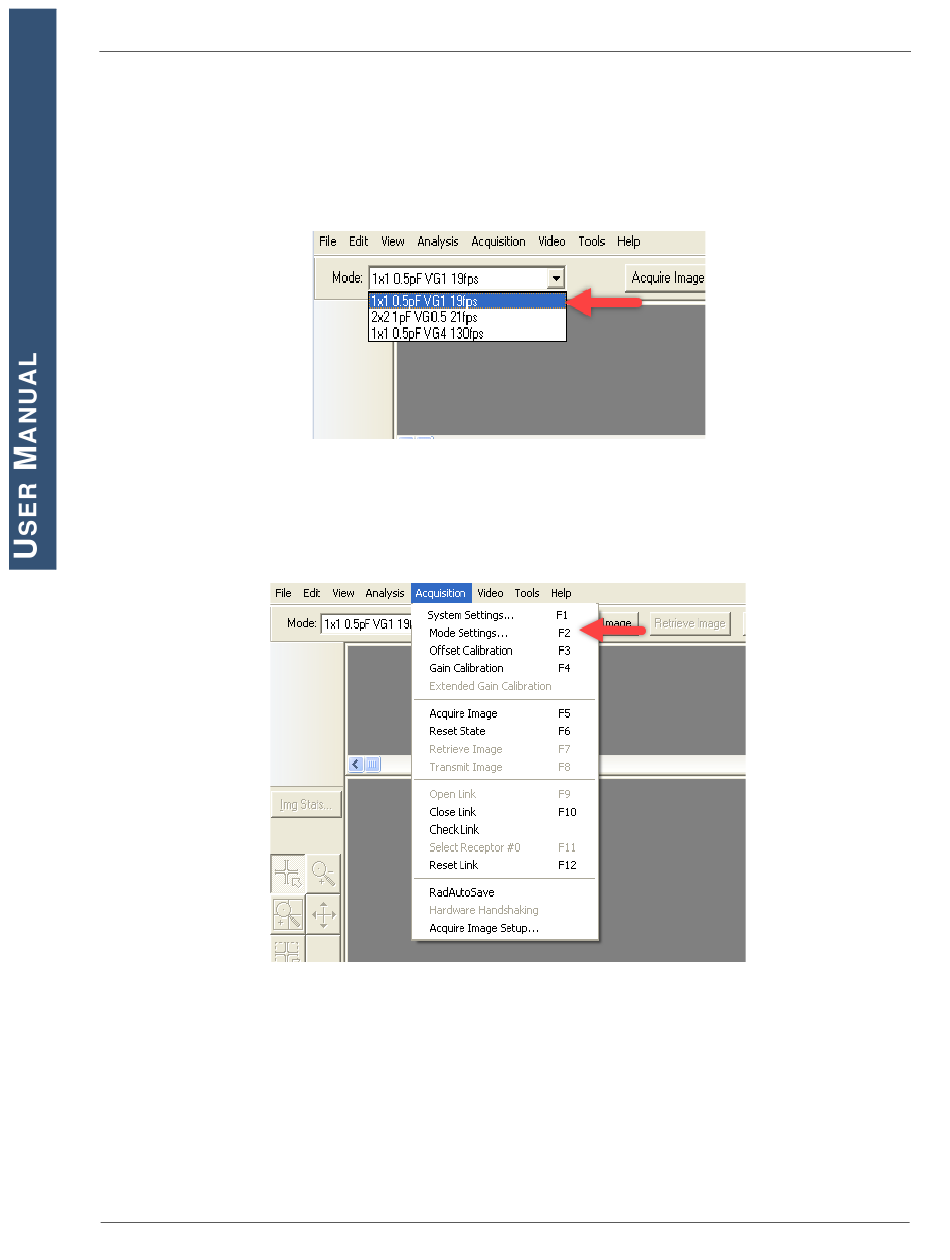

Figure 32 Mode Drop Down Menu

Click Acquisition from the menu bar and click on Mode Settings to adjust mode
3
settings.

Figure 33 Mode Settings selection in Acquisition menu

Frame Rate settings and number of frames taken are changeable. If User Sync is checked, an
4
external trigger which determines the frame rate must be supplied.
34
1313DXT-I/1515DXT-I/2520DX-I/3030DX-I X-ray Detectors
www.vareximaging.com
Section 10.3.
