Image Acquisition

Once offset and gain calibration are complete, the detector is ready to capture images.
10.6.1 Fluoroscopy 2
The Fluoroscopy mode is commonly used for its ability to provide real-time moving images
for positioning and verification.
Click the desired mode.
1

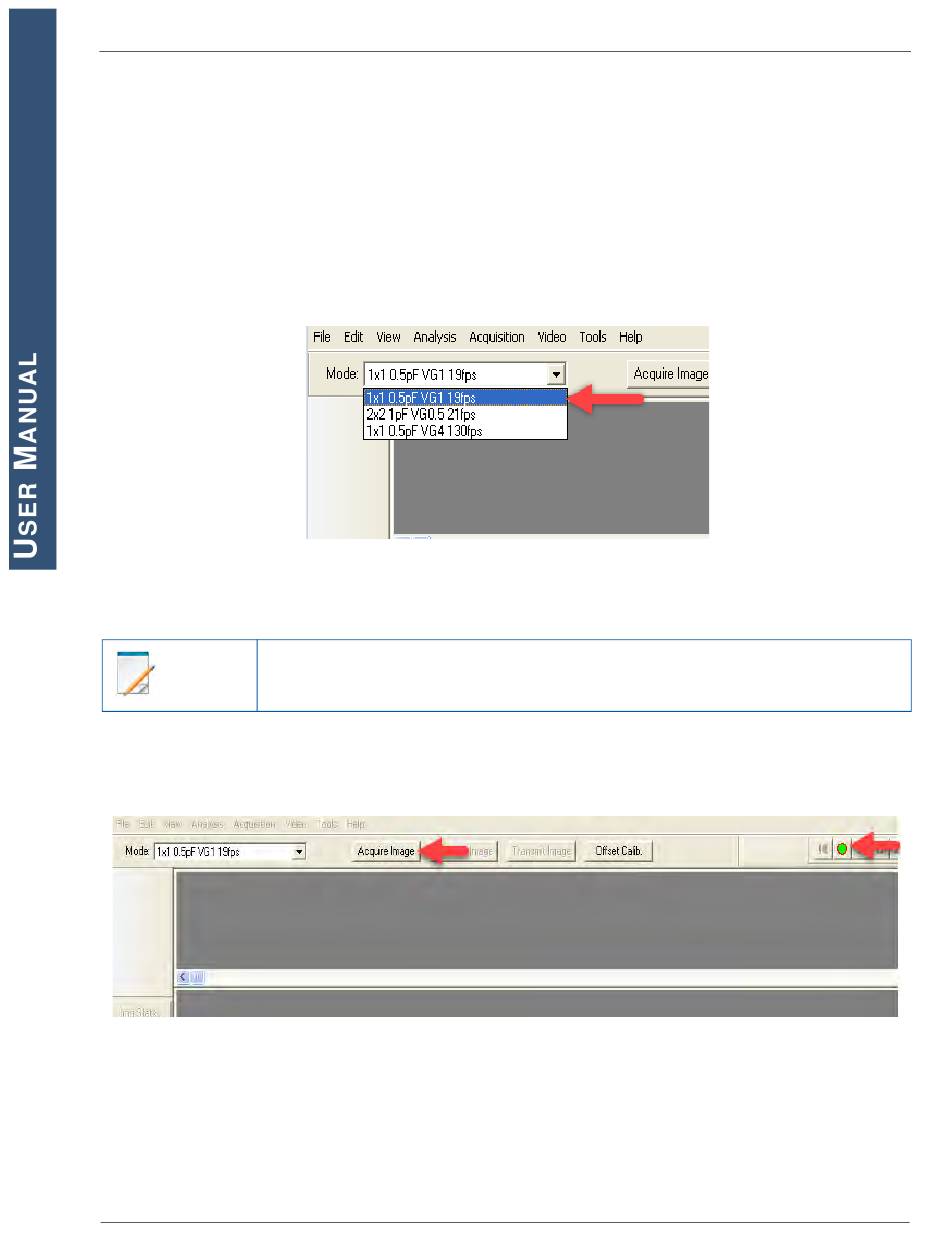

Figure 46 Mode Drop Down Menu

Ensure Hardware Handshaking is unchecked under the Acquisition menu.
Note
Click the Acquire Image button or the Green Radio button on right which triggers the
2
detector to begin acquiring images.

Figure 47 Acquire Image and Radio Button

Upon first acquisition, two windows appear. The first one provides buffer allocation
3
information. The second provides a window for user comments.
