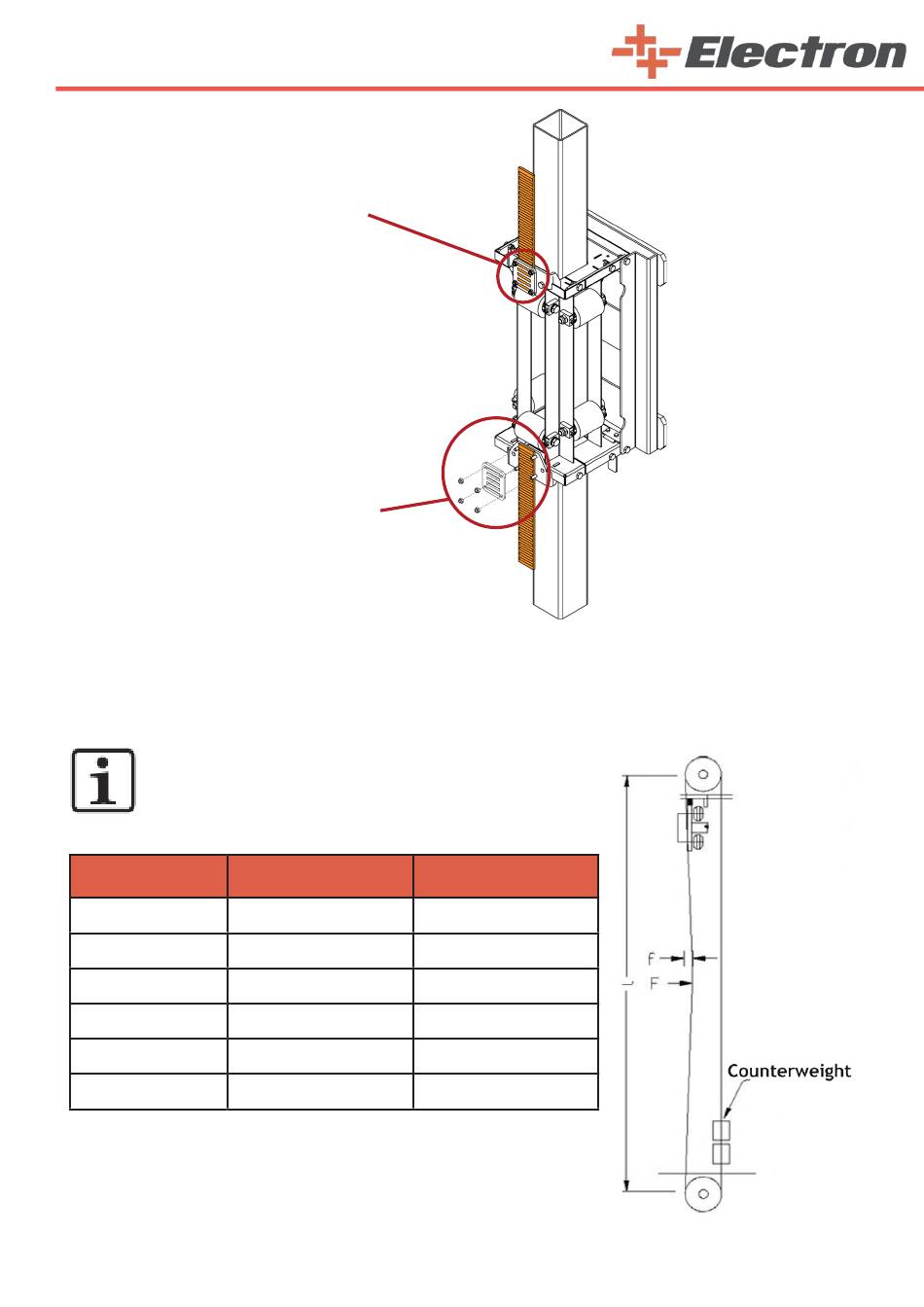

9.4.1.2 Belt Tension Setting
After the belt is installed, tighten the tension screws on the reciprocator to adjust its tension. You can
adjust the belt tension according to the table below.
NOTE:
It is assumed that a force of F = 50 N is applied.
Stroke Lenght [mm]
1200
1500
1800
2100
2400
2700
Belt Lower Locking Plate
1
2
Distance Between
Gears (l) [mm]
2196
2496
2796
3096
3396
3696
2
Tension Distance (f)
[mm]
28,0
31,2
34,9
38,7
42,5
46,2
