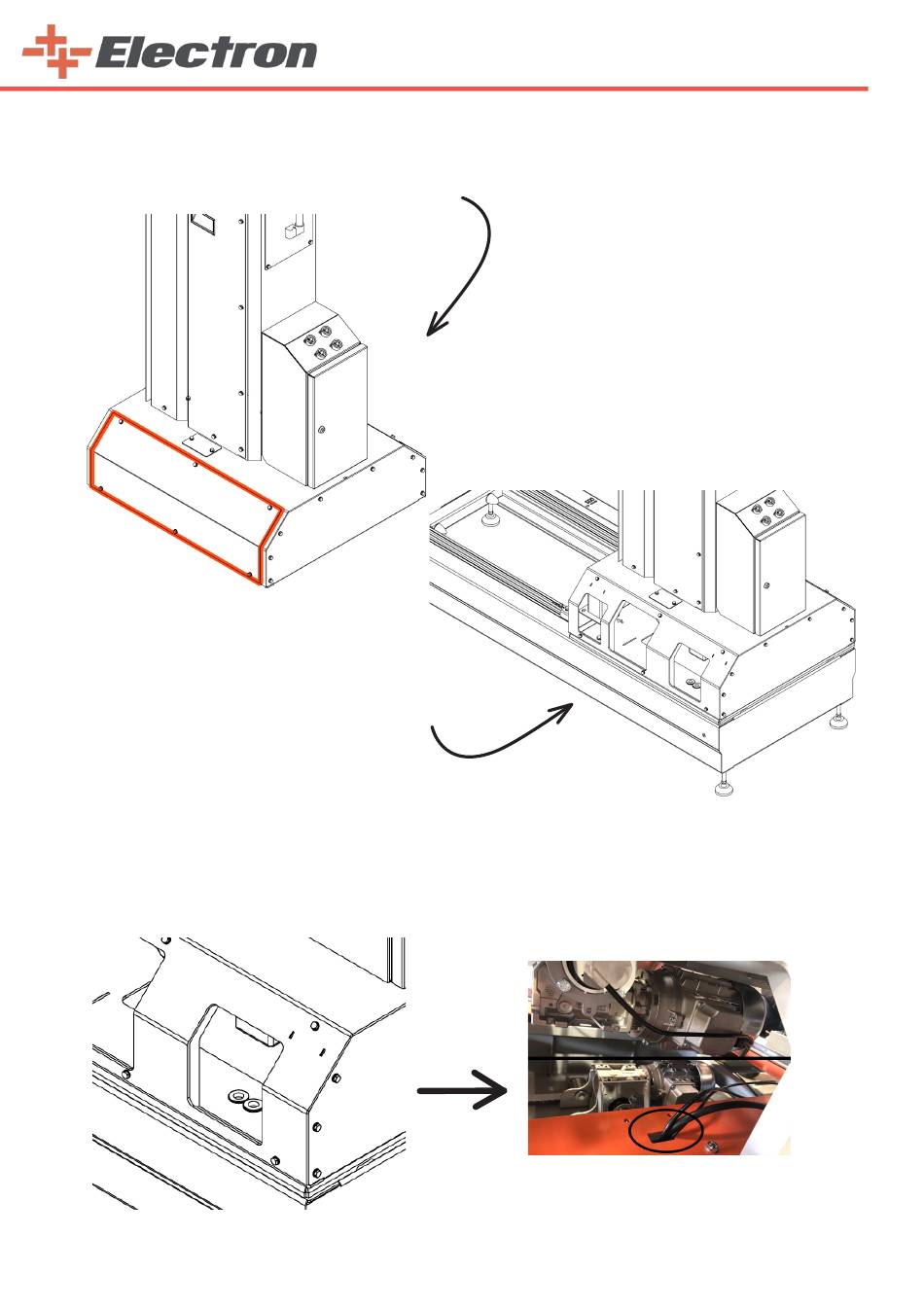

• Place Horızontal Unit Accordıng To The Project Values.
Make sure the base is on a flat floor. Use M16 fixing plug.
•
Open bottom side covers of the reciprocator.
• Position the reciprocator on the
base of the horizontal unit.
4.1.3. Connecting the E-ROBOT+3 X Horizontal Motion Unit to the Z Reciprocator
1. Ensure that the cables are routed at the specified points to avoid crushing the cables. (Motor, encoder and
sensor cables)
