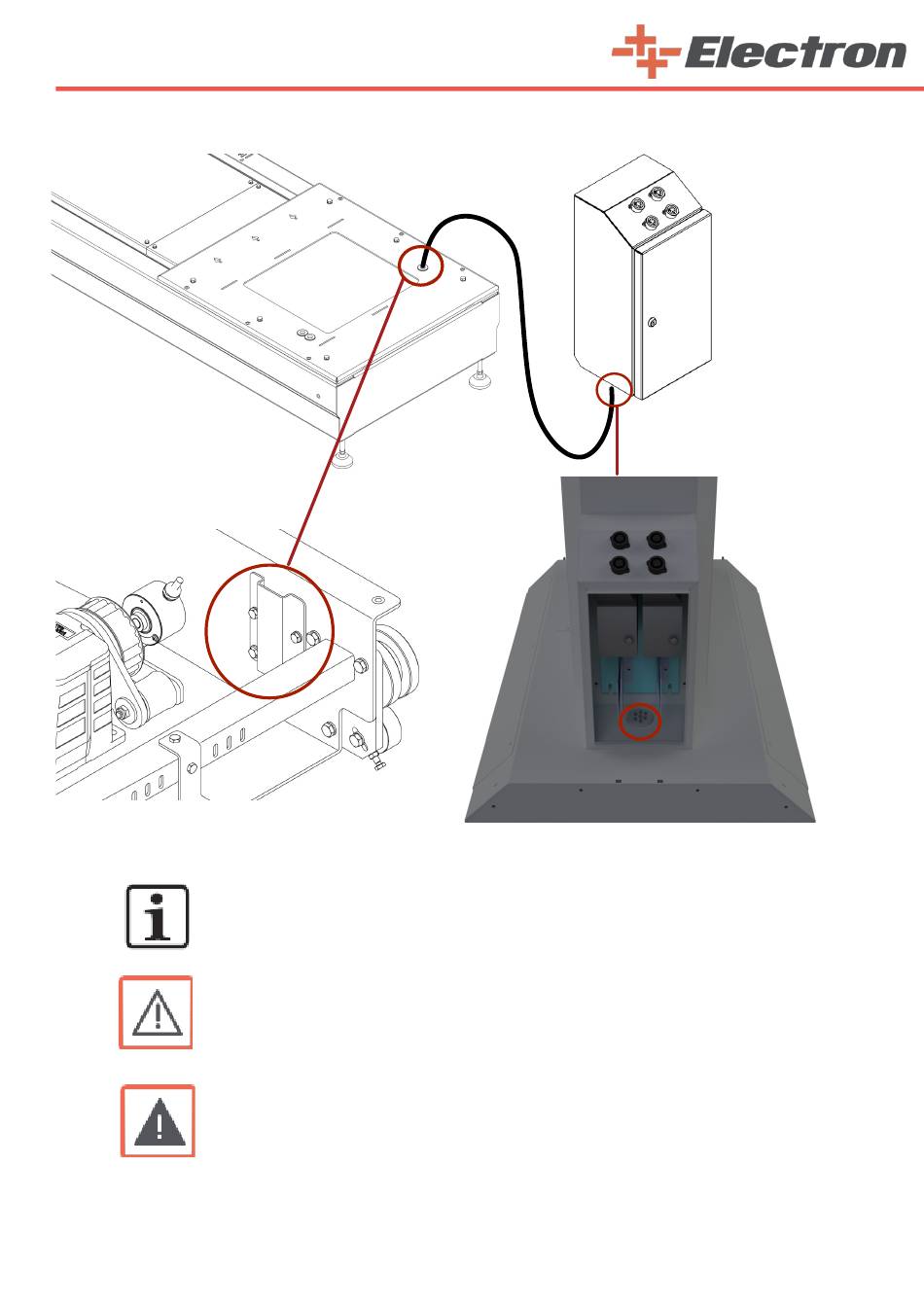

2. Remove the back cover of the reciprocator (vertical axis). Route the cables through the cable holes (1) of
the junction box mounted on the cover. (as shown in the picture)
3. Connect the cable (according to the enclosed wiring diagram)
NOTE:
After positioning, the E-ROBOT+3 X Horizontal Motion Unit must be firmly fixed on the floor.
DANGER:
Never stand on the horizontal axis or under the carriage of the vertical axis when it is in ope-
ration!
WARNING:
- The power of the horizontal axis is much stronger than that of a human!
- All axes must be secured against admittance during operation (see local regulations).
Before start-up the horizontal axis, the following points must be observed:
- The frame and the drive carriage of the axis must be grounded! The grounding of the frame
must be done by the customer.
- Adjust the system parameters in the E-Drive control unit.
