5.Commissioning

5.1. Preparation for start-up

WARNING:
Before connecting or switching on the reciprocator, read carefully these operating
instructions!
Before the reciprocator is put into operation, the upper stroke limit must be set on the
reciprocator control unit!
5.1.1. General information
5.1.2. Reference point
At every start-up after the mains have been interrupted, the reference point of the reciprocator must be refer-
red again (see "Reference point and mechanical stops"). After the reference point is reached, the reciprocator begins
to carry out the movements set on the reciprocator control unit.
Before the reciprocator is put into operation, the upper stroke limit must be set on the reciprocator control
unit!

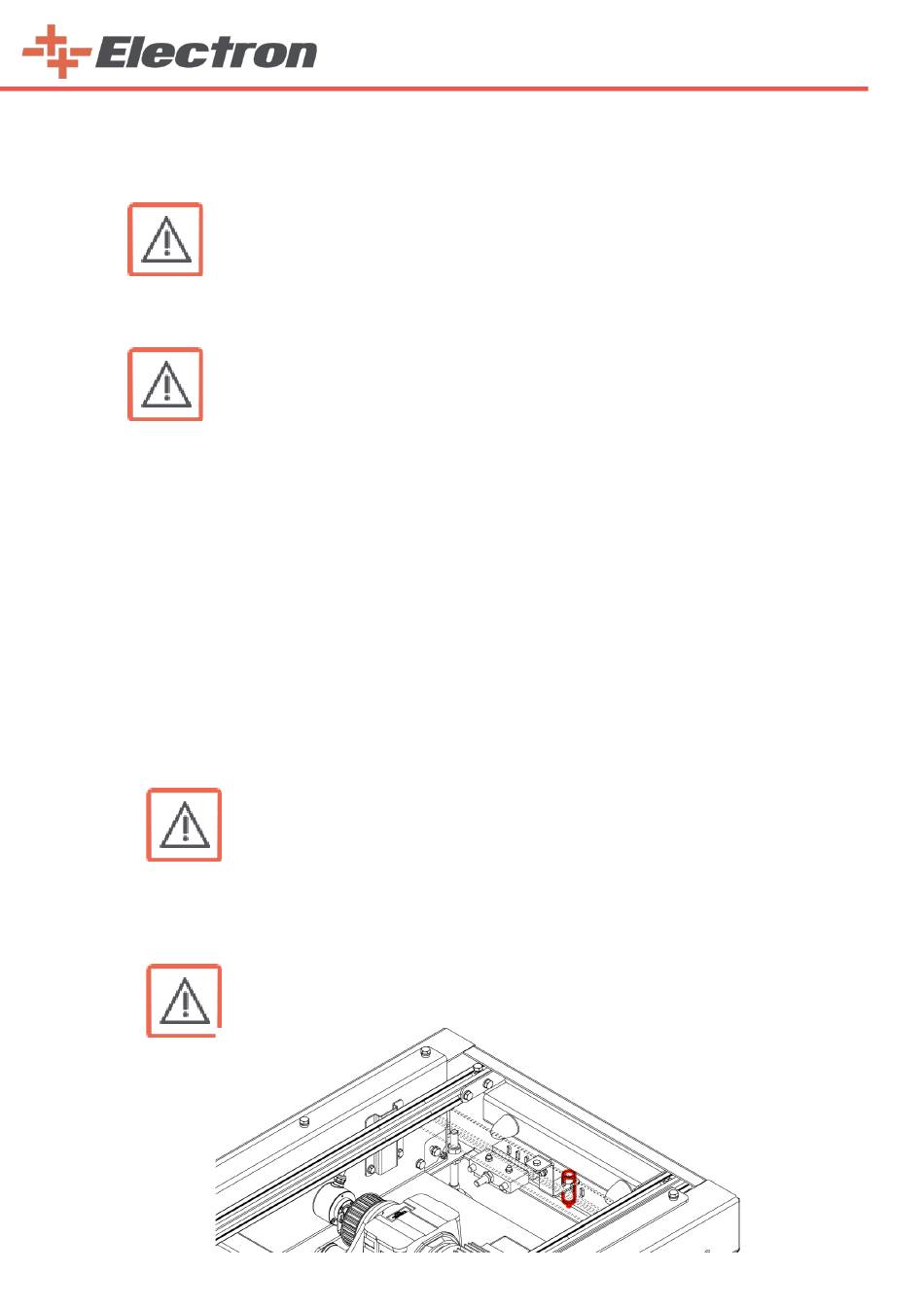

5.1.3. Horizontal Axis Reference point
The reference point of the horizontal axis is selected when the sensor passes mechanical stop bumper by 2
mm. This is a factory setting. It will be set and sent. Unless necessary, do not pull by manually adjusting the move-
ment mechanism of the horizontal axis.
16
WARNING:
Before start-up works are done, make certain that nobody can
switch on the reciprocator! Switch off and lock the mains switch!
Before starting up, the following checks should be done:
• Check the gun holder and hose holder if they are firmly fitted.
Mount the gun holder in such a way that they do not hit the bottom of the booth
slots on start-up and cause damage
• Lay out the cables and hoses in such a way that even at the highest stroke no strain
can arise
• Check the grounding of the guns and hose carriers
• Check if the upper and the lower reversing point of the Z carriage are set
correctly. The stroke length of the reciprocator must be in the range of the booth
opening (collision danger!)
• Make sure that the automatic guns cannot collide with the work pieces
(incorrectly adjusted stroke parameters on the reciprocator control unit)
WARNING:
Incorrect setting of the upper and lower stroke limits can cause
damages to the reciprocator, to the booth and/or to the applicators!
WARNING:
In order to avoid damages to the booth or the gun holder etc. the reference point must be
set by Electron authorized person before the first start-up!
