Start up preferences

After the power button on the back end of the control unit is turned on, pressing the power button on the front
screen turns on the system. When there is an error in the Reciprocator, it writes the error code on the left side
of the page and warns the operator. Please refer to the "Error Codes Section" for error scenarios.
After the start up procedure, the "Main Menu" page will be seen on the screen. When the ''Main Menu'' appears
on the display the operator can start using the reciprocator.
At the end of the start up procedure, the mechanical unit drives down to the reference point (zero point). The
Z carriage travels to the mechanical stop, hitting the rubber buffer and then saves the point as reference for
the operation.
7.3. Setup Pages
7.3.1. Main Setup

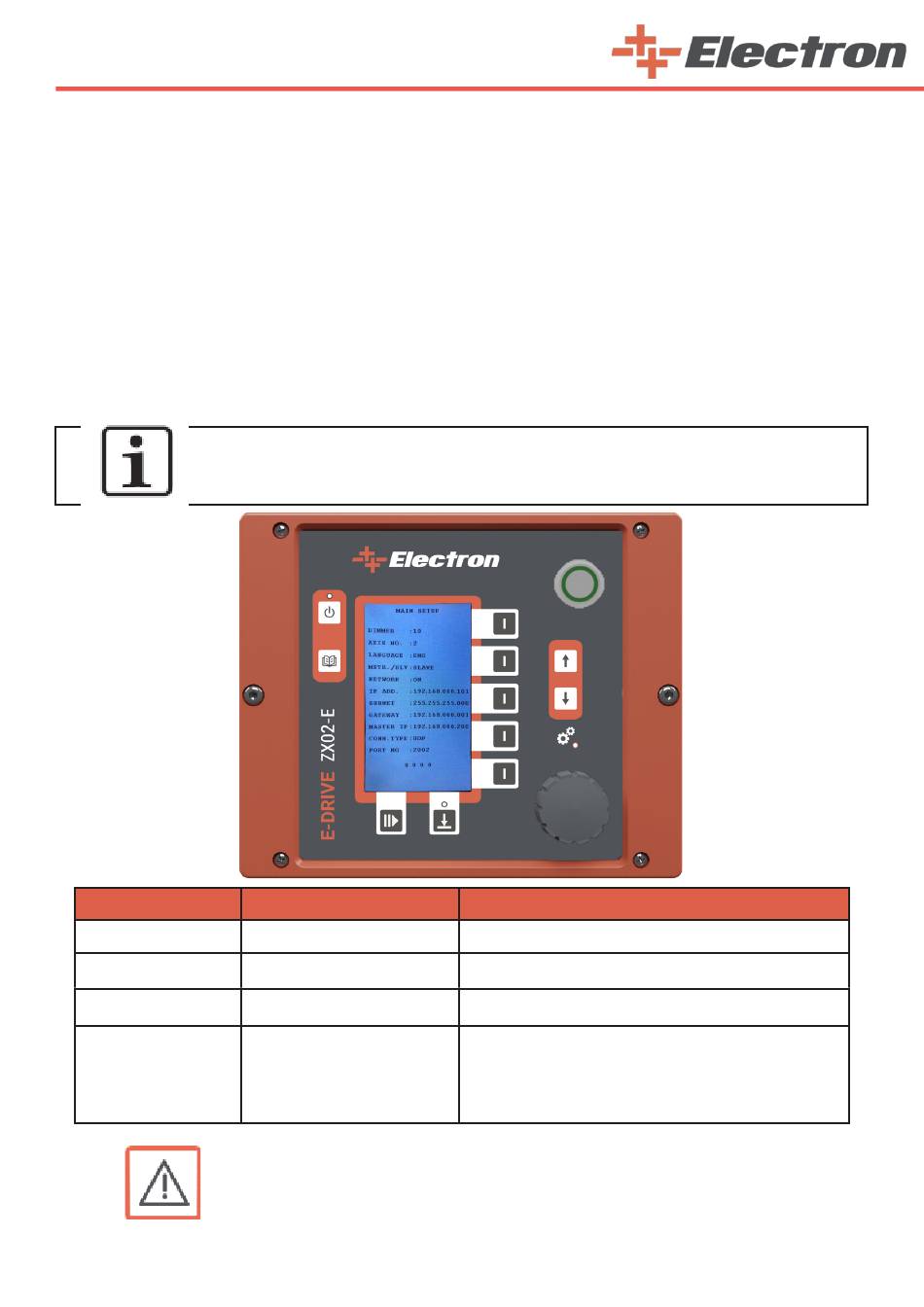

When you press the 'Main Switch', switch to the "Main Setup" page by holding the ''Axes Active/Passive
Button'' (B14) for 2 seconds without making any changes on the screen.
NOTE:
You can move up and down between rows with the 'Segment Buttons'(B5 and B6).
Turn the ''
Line Name
Dimmer
Axis No.
Language
MSTR./SLV.
Page
Rotary Adjustment Knob
Limits
0/10
0/8
ENG-TR-RU
Master/Slave Modes
WARNING:
If you want to increase the number of axes later, do not forget to select your
total axis number in the "axis no." Section. (For example, if you have 2 axes,
when you order 2 more, you need to edit the number here as 4.)
''(K10) to change the value in any row.
Explanation
Screen Brightness Adjustment
Maximum number of axes that can be controlled
Language Options
Master
= The device is set as a commander in a network
where the operational parameters of this device is sent to
other devices.
Slave
= The device is set as a listener in a network
where the operational parameters of the device is cop-
ied from a desired master device.
