Main Menu Page - Electron E-ROBOT+3 Series User Manual

Code Info
Axis Type
Max POS.
Min POS.
HOM. Delay
HOM. Freq.
Max Freq.
Max V (Velocity)
Min V
Recommended V
Max a (acceleration)
Min a
Recommended a
HOM. T. Out
MOT. T. Lim
ENC. 1P . mm
1Hz/V

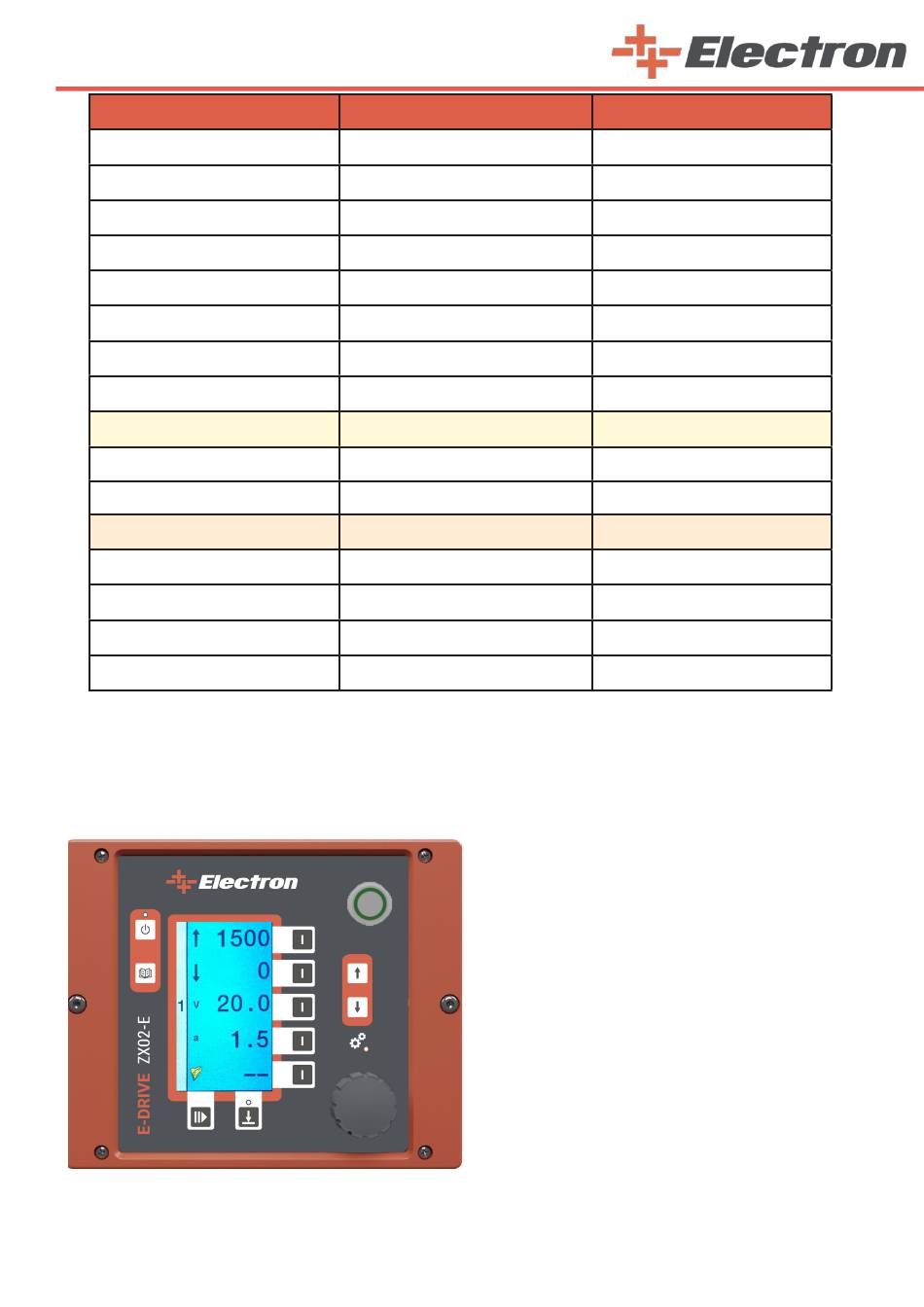

7.4. Main Menu
After making the main settings and axis settings, press the 'Axes Active / Passive Button' (B14) to switch
to the ''Main Menu'' page. Here you need to edit the reciprocator's operating settings, that is, create a recipe.
For Vertical Axis
1500/1800/2100/2400/2700/3000
36.0 m/min.
6.0 m/min.
20.0 m/min.
2.5 m/s²
0,5 m/s²
1.5 m/s²
Default
Default
Page
OSC.
0
50 ms
10 Hz
75 Hz
30
120
You can select the setting of each line with the
buttons (B5,B6,B7,B8,B9) on the right sides and change
their values with the 'Rotary Adjustment Knob' (B10).
1st Line: It is the upper working height adjustment of your
reciprocator stroke. The maximum can be up to the value
you set on the setup page.
2nd Line: It is the bottom working height adjustment of
your reciprocator stroke. The minimum value is zero. This
value is referenced as the location of the mechanical stop
bumper.
3th Line: It is velocity adjustment.
4th Line: It is acceleration adjustment.
5th Line: It shows the prescription.
Note: Prescribing will be explained in the next section.
Press the 'Menu Button' (B13) to adjust the other
axes settings.
For Horizontal Axis
POS.
1000
0
0
10 Hz
50 Hz
8.0 m/min.
4.0 m/min.
5.0 m/min.
2.5 m/s²
0,5 m/s²
1.5 m/s²
30
120
Default
Default
25
