6.
Start up preferences
After the power button on the back end of the control unit is turned on, pressing the power button on the front
screen turns on the system. When there is an error in the Reciprocator, it writes the error code on the left side of
the page and warns the operator. Please refer to the "Error Codes Section" for error scenarios.
After the start up procedure, the "Main Menu" page will be seen on the screen. When the ''Main Menu'' appears on
the display the operator can start using the reciprocator.

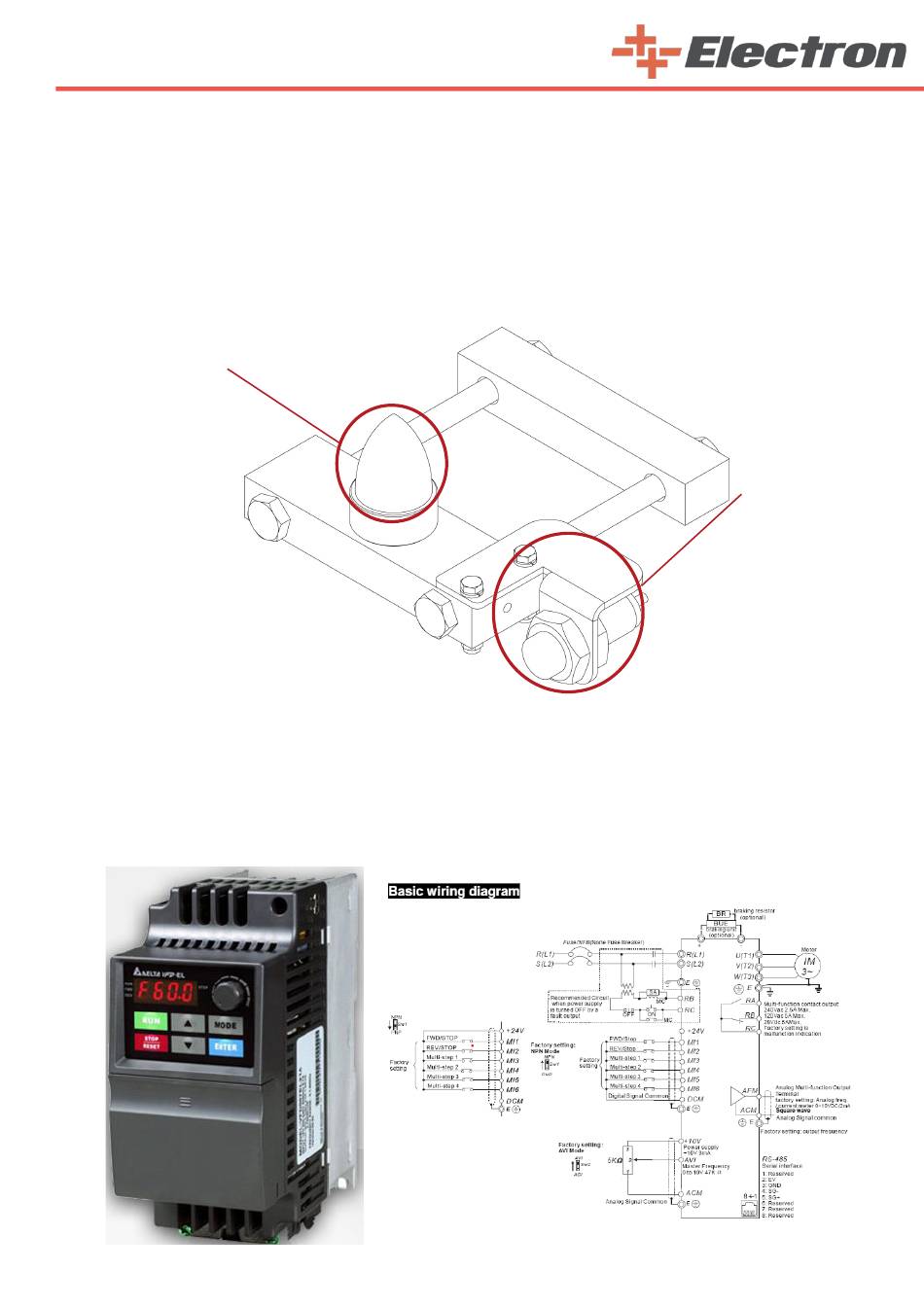

At the end of the start up procedure, the mechanical unit drives down to the reference point (zero point). The Z
carriage travels to the mechanical stop, hitting the rubber buffer and then saves the point as reference for the
operation.
Mechanical Stop Bumber
6.1.

Electrical Connections

Make connections according to Section 11 Electrical Schematic Diagram.

6.2. Simple General Purpose AC Drive Settings

Zero Point Sensor/Rubber Buffer
Zero-Point Reference Sensor
19
