5.2. Connections

Electrical connections / cable connection
E-DRIVE ZX02-E

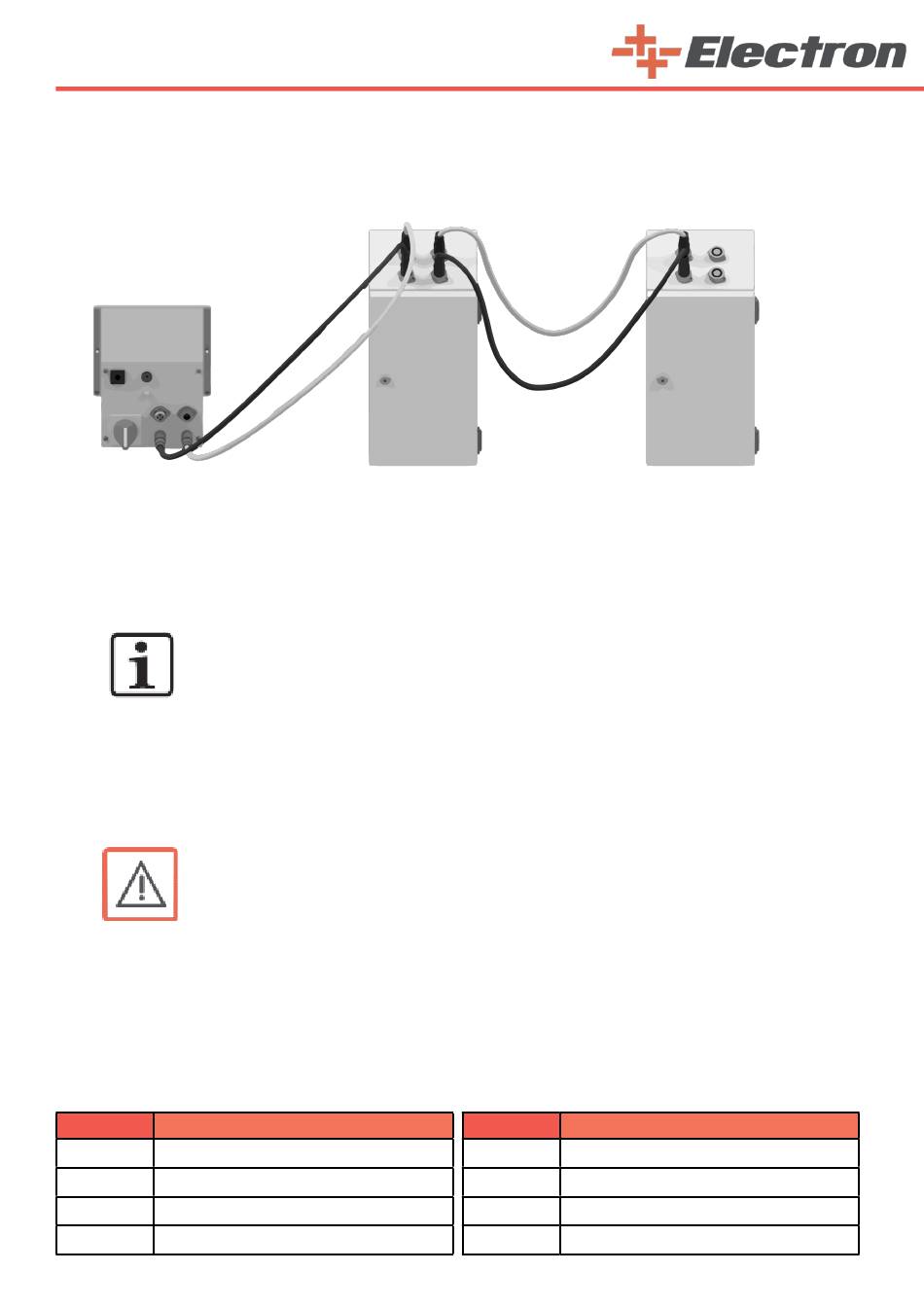

Electrical connections of E-ROBOT+3 Z;
Power supply cable (black) and signal cable (white) are connected between the E-DRIVE control unit and the
control unit on the reciprocator. For each reciprocator to be added from now on, power and signal connections are
made from the empty slots of the previous reciprocator with the same type of cables.
NOTE:
To order different lengths of cable, see "Ordering" on page 38.

5.3. Checkpoints before switching on

Before switching on, the following checks should be done:
• Check if the cables and hoses are laid out correctly
• Check if the guns have a clear run and do not touch the booth slots
• Check the distance between the work pieces and the guns

5.4. Grounding / protection type

All metal parts of the reciprocator must be grounded according to the local safety regulations. The gun hol-
ders must be connected to the grounding screw on the reciprocator base by the grounding strip.
All electrical installations are implemented in accordance to IP54 protection type regulations!
• See the section 12) Grounding Diagram.

5.5. Hoses and cables

All movable hoses and cables must be laid out in such a way that they are neither subjected to any loads nor
can hang on other parts. The electric cables of the reciprocators must be protected from mechanical damage.
Order Code
B08ZX02SC-E10 E-DRIVE ZX02-E RECIPROCATOR SIGNAL CABLE - 10 MT
B08ZX02SC-E15 E-DRIVE ZX02-E RECIPROCATOR SIGNAL CABLE - 15 MT
B08ZX02SC-E20 E-DRIVE ZX02-E RECIPROCATOR SIGNAL CABLE - 20 MT
B08ZX02SC-E25 E-DRIVE ZX02-E RECIPROCATOR SIGNAL CABLE - 25 MT
First Reciprocator
WARNING:
Before connecting or switching on the reciprocator, read carefully these operating
instructions!
Part Name
Second Reciprocator
Order Code
B08ZX02PC-E10 E-DRIVE ZX02-E RECIPROCATOR POWER CABLE - 10 MT
B08ZX02PC-E15 E-DRIVE ZX02-E RECIPROCATOR POWER CABLE - 15 MT
B08ZX02PC-E20 E-DRIVE ZX02-E RECIPROCATOR POWER CABLE - 20 MT
B08ZX02PC-E25 E-DRIVE ZX02-E RECIPROCATOR POWER CABLE - 25 MT
Part Name
