AIROC™ CYW20829: CYW920829B0M2P4XXI100-
EVK Module Evaluation Kit user guide

About this document

Scope and purpose

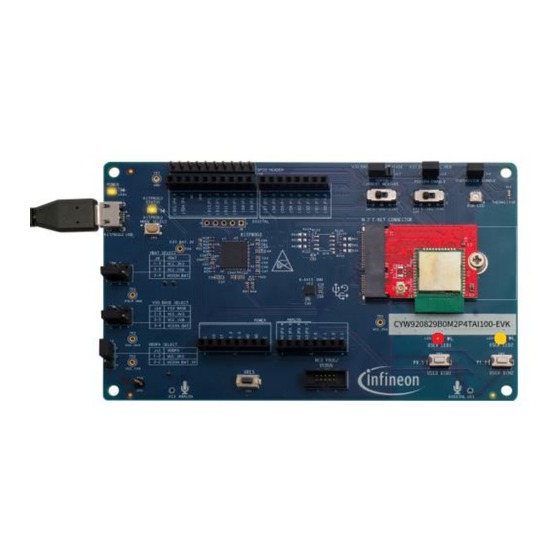

The Infineon AIROC™ CYW20829 Bluetooth® Low Energy module Evaluation Kit (CYW920829B0M2P4XXI100-EVK)
enables evaluation, prototyping, and development of a wide array of Internet of Things (IoT) applications using
the AIROC™ CYW20829 module, a low-power and high-performance Bluetooth® Low Energy MCU. The system
features an Arm® Cortex® - M33 core with the programmable and reconfigurable analog and digital blocks.
It is a combination of an MCU with the following:
Sigma delta switched-cap Analog-to-digital converter (ADC) for audio and DC measurements
•
Seven 16-bit and two 32-bit Timer/Counter Pulse-Width Modulator (TCPWM) blocks
•
98 dBm LE-1 Mbps RX sensitivity, -105 dBm LE-LR at 125 kbps, -101 dBm LE-LR at 500 Kbps, and an
•
integrated PA with 10 dBm TX output power for better link budgets
Serial Memory Interface (SMIF) for external flash with encryption support
•
Serial communication interfaces such as UART, I
•
Wake from Deep Sleep I
•
Two pulse density modulation (PDM) channels and one I
•
mode
Intended audience
This document is intended for users interested in the CYW920829B0M2P4XXI100-EVK. This comes in two
variants as given below
•
CYW920829B0M2P4TAI100-EVK- Trace antenna module EVK
•
CYW920829B0M2P4EPI100-EVK
User guide
Please read the sections "Important notice" and "Warnings" at the end of this document
www.infineon.com
2
2
C (sensors sitting on the I
- External RF pad module EVK
C, and Quad-SPI
2
C interface should be able to wake up the MCU)
2
S channel with Time Division Multiplexed (TDM)
002-39356 Rev. **
2024-02-07
