QUICK START GUIDE
AIROC
CYW20829 Bluetooth® Low Energy SoC
TM
Evaluation Kit
CYW920829M2EVK-02
Kit contents
1. AIROC™ CYW20829 Bluetooth® Low Energy SoC

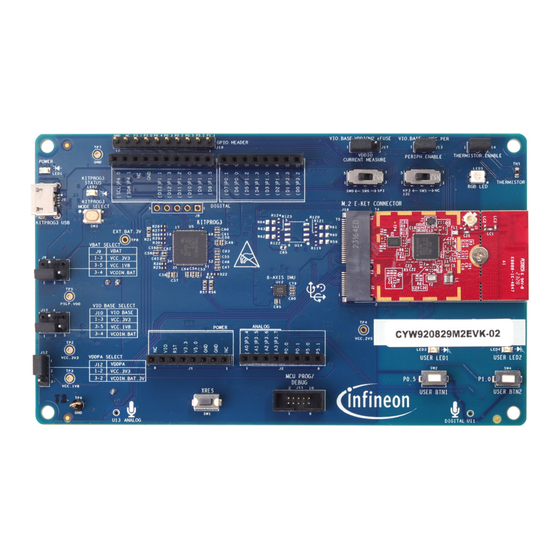

Evaluation Board (CYW9BTM2BASE3+CYW920829M2IPA2)
2. USB Type-A to Micro-B cable
www.infineon.com/CYW920829M2EVK-02
3. Six jumper wires (five inches each)
4 . Quick start guide (this document)
-
