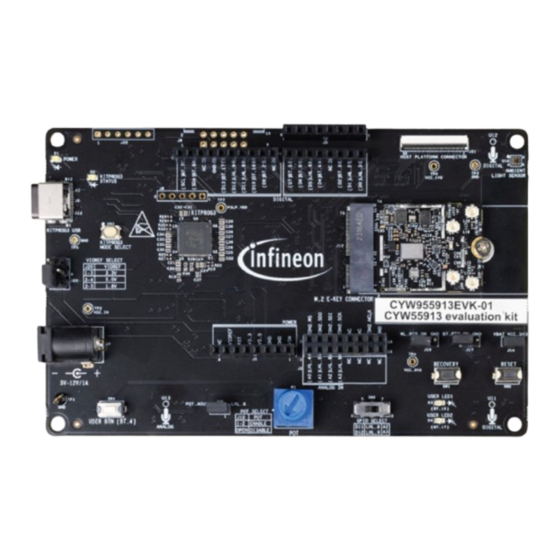

Infineon AIROC CYW55913 User Manual

Infineon AIROC CYW55913 User Manual

Wi-fi & bluetooth low energy connected mcu evaluation kit
Hide thumbs Also See for AIROC CYW55913:

Advertisement

Quick Links

Download this manual
AIROC
CYW55913 Wi-Fi & Bluetooth
™
connected MCU Evaluation Kit user guide

About this document

Scope and purpose
The Infineon AIROC
CYW55913 Wi-Fi and Bluetooth
™
(CYW955913EVK-01) enables the evaluation, prototyping, and development of a wide array of Internet of Things
(IoT) applications using the AIROC
®
Wi-Fi 6/6E, Bluetooth
LE 5.4, Matter, IP networking, with integrated PMU, targeted at IoT applications for
standalone operation or to offload a host-processor. An integrated 192 MHz Arm
and Networking Stacks, Bluetooth
®
The integrated Arm
Cortex
•
2048 KB of ROM and 768 KB of SRAM
•
Three Serial Control Blocks (SCB) and supporting I2C/SPI/UART
•
9x TCPWM blocks
•
PDM interface for digital microphone support
•
12-bit ADC with seven-channel mux input for analog microphone support or seven channels of DC sensing
•
A pair of time-division multiplexing (TDM) interfaces enables a flexible interface for various audio use cases
•
4-wire UART or SDIO (shared with Wi-Fi) interface is available for interfacing with the host processor
Intended audience
The target audience for this evaluation board comprises technical specialists with expertise in connectivity,
particularly those interested in Wi-Fi
is within laboratory conditions.
User guide
Please read the sections "Important notice" and "Warnings" at the end of this document
www.infineon.com
CYW55913, ultra-low-power, single-chip, connected MCU that support 1x1
™
®
LE 5.4 and supports a wide array of peripherals.
®
-CM33 can operate up to 192 MHz, supporting:
®
and Bluetooth
®
Low Energy (LE) connected MCU Evaluation Kit
®
LE development with connected MCU. Its intended usage
®
Low Energy
®
®
Cortex
-CM33 runs the Wi-Fi
002-38749 Rev. *B
2024-09-12
