Installing the Device
2.4 Connecting the Failsafe Alarm Relay
2.
14

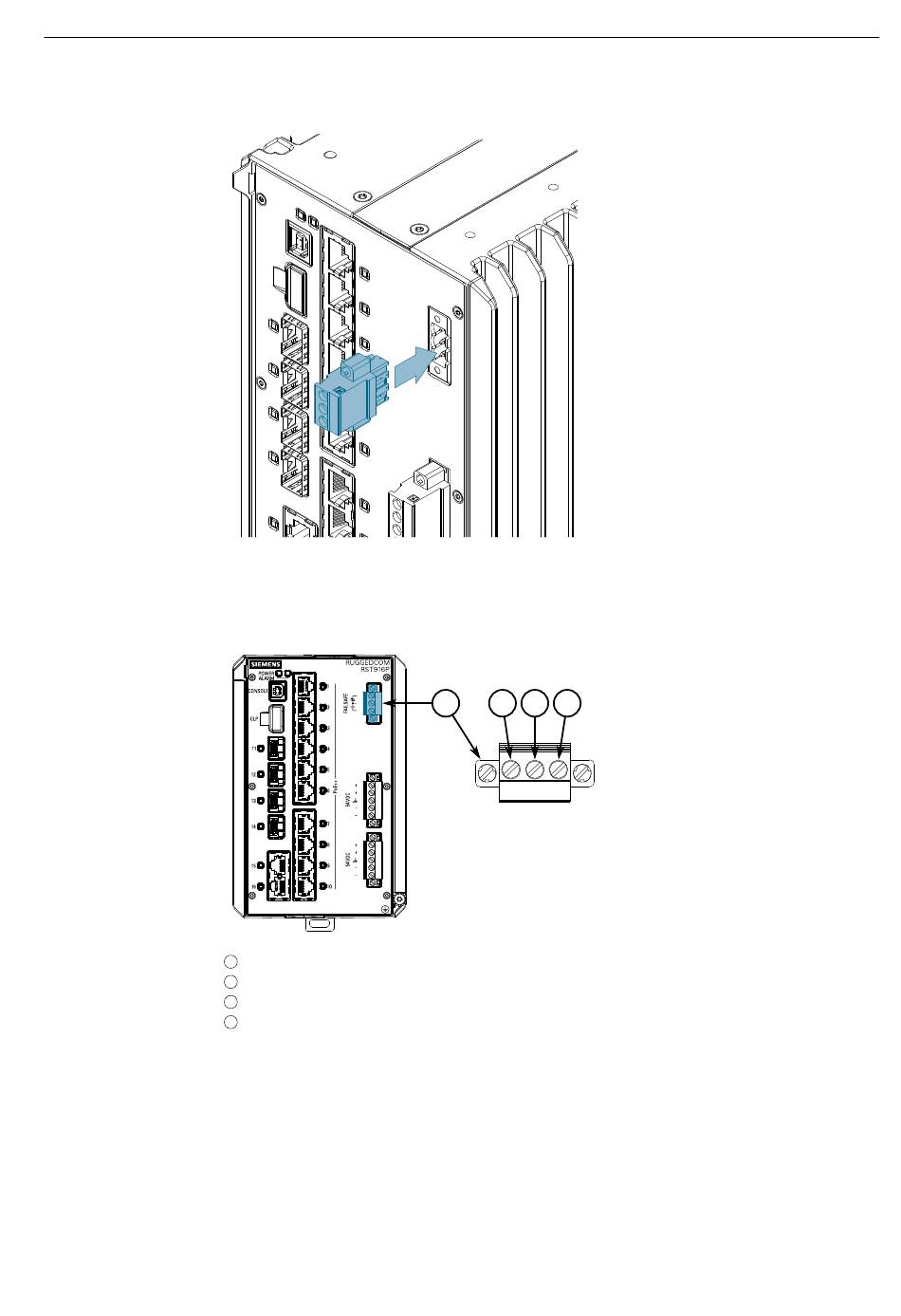

Figure 2.6
Assembling the Failsafe Alarm Relay Terminal Block
Connect a failsafe device to the terminal block.
Failsafe Alarm Relay Terminal Block
1
Normally Open
2
Common
3
Normally Closed
4
Figure 2.7
Failsafe Alarm Relay Wiring
1
2
3
4
RUGGEDCOM RST916P
Equipment Manual, 11/2023, C79000-G8976-1489-06
