Siemens SIMATIC NET RUGGEDCOM RST916P Equipment Manual page 12

3
4
5
6
1
2
3
4
5
6
7
8
9
10

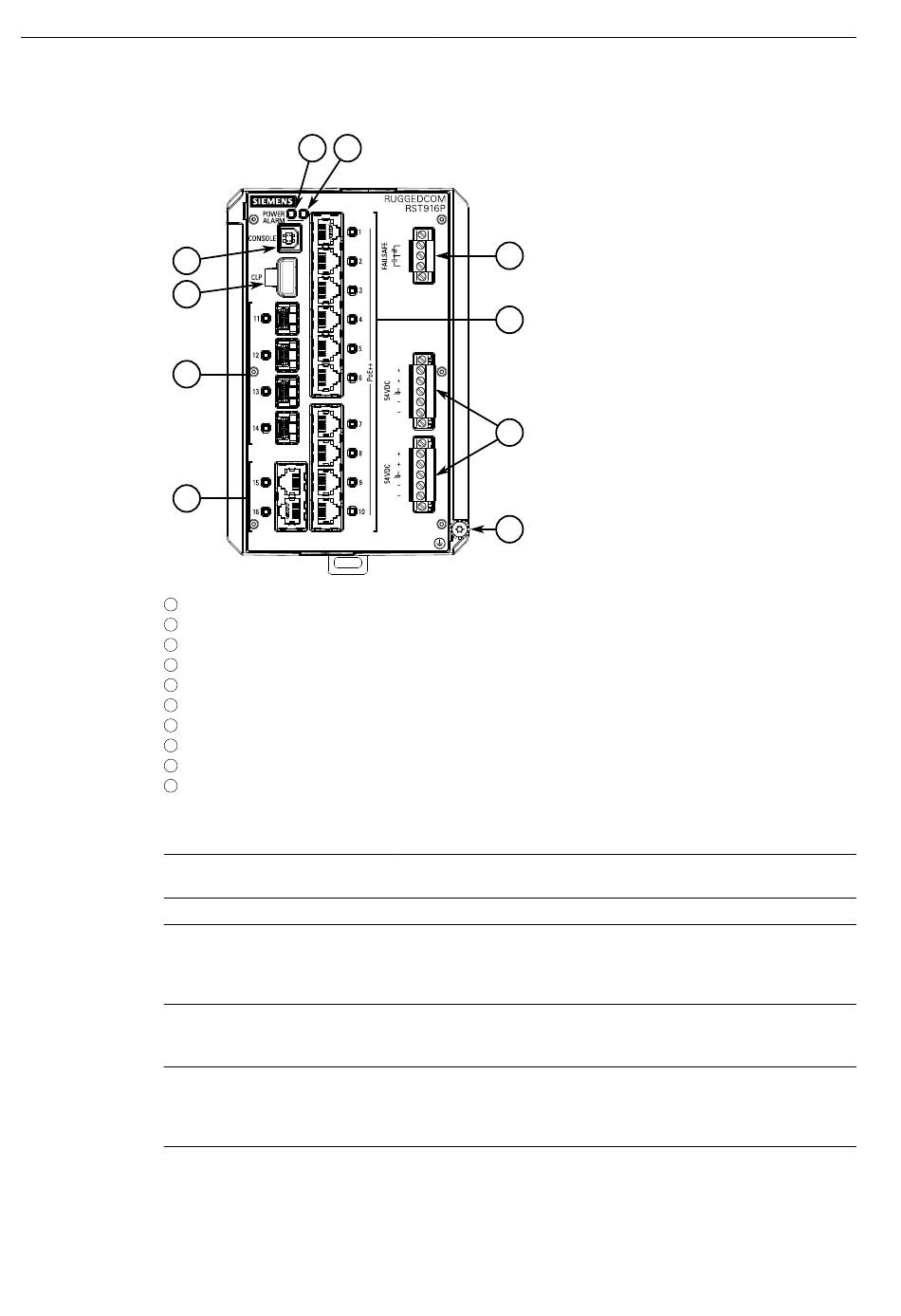

Figure 1.1
POWER LED
ALARM LED
USB Console Port
CLP Port
Communication Ports
Failsafe Alarm Relay
RUGGEDCOM RST916P
Equipment Manual, 11/2023, C79000-G8976-1489-06
1 2
POWER LED
ALARM LED
USB Console Port
CLP Port
SFP Tranceiver Sockets (Ports 11 to 14)
Copper Ethernet Ports (Ports 15 and 16)
Failsafe Alarm Relay
Copper PoE Ports (Ports 1 to 10)
Power Supply Terminal Block
Chassis Ground Screw
RUGGEDCOM RST916P
7
8
9
10
Illuminates green when power is supplied to the device and after
boot up is complete.
Illuminates red during boot up and when an alarm condition exists.
The USB Type-B console port is for interfacing directly with the
device and accessing initial management functions. For information
about connecting to the device via the serial console port, refer to
"Connecting to the Device" (Page 21).
The Configuration License PLUG (CLP) is a removable storage
medium for configuration data and licenses. For more information,
refer to "Inserting/Removing the CLP" (Page 22)
Communication ports in general receive and transmit data, as
well as provide access to the RUGGEDCOM ROS Web interface.
For more information about the various ports available, refer to
"Communication Ports" (Page 25).
Latches to default state when a power disruption or other alarm
condition occurs. For more information, refer to:
Introduction
1.2 Description
3
