User Lock; Message Log - SOLARFOCUS ecotopzero Manual

5 Use and operation

5.4.4 User lock

The function serves as protection against unau-
thorised modification of the control parameters.
When the user lock is active, the parameters of the
individual screens are displayed but cannot be
changed. The active user lock is indicated by the pad-
lock icon 1 in the screens.

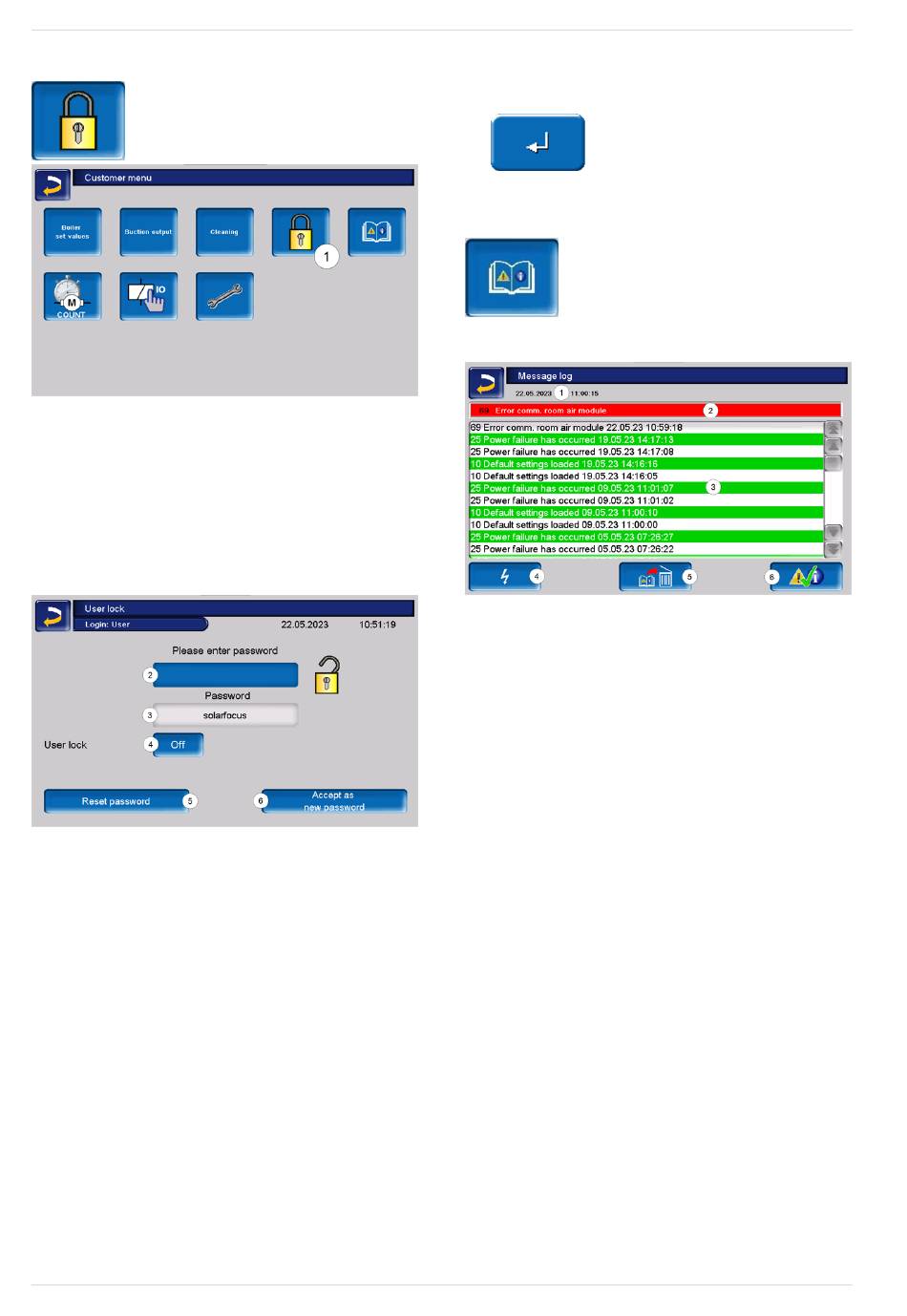

User lock screen
Enter the password 2
To define a new password (maximum 20 characters).
Password 3
The currently valid password is displayed.
User lock 4
Off: The user lock is switched off.
On: Switches on the user lock function. If the display
is not touched for one minute, the user lock is active
in the screens.
Password reset 5
The current password is reset to the value solarfocus.
16
Accept new password
Enter a new password in the input field and press the
button. Note on screen keyboard: Confirm input with
the button.

5.4.5 Message log

The button is only visible if a message is active, i.e.
not acknowledged.
Located in the upper screen is both the date and the
time 1. The messages
are recorded here, with the start and end time. The
message with the highest priority is highlighted in red
2, acknowledged messages are green.
Press the 6 button to quit messages. Button
the power failure log. All messages are acknow-
ledged with the 5 button and the entries in the mes-
sage log are deleted.
Possible messages > 45
Operation manual ecotop-zero, ecotop-light
6
3 saved in the boiler control
4 opens
