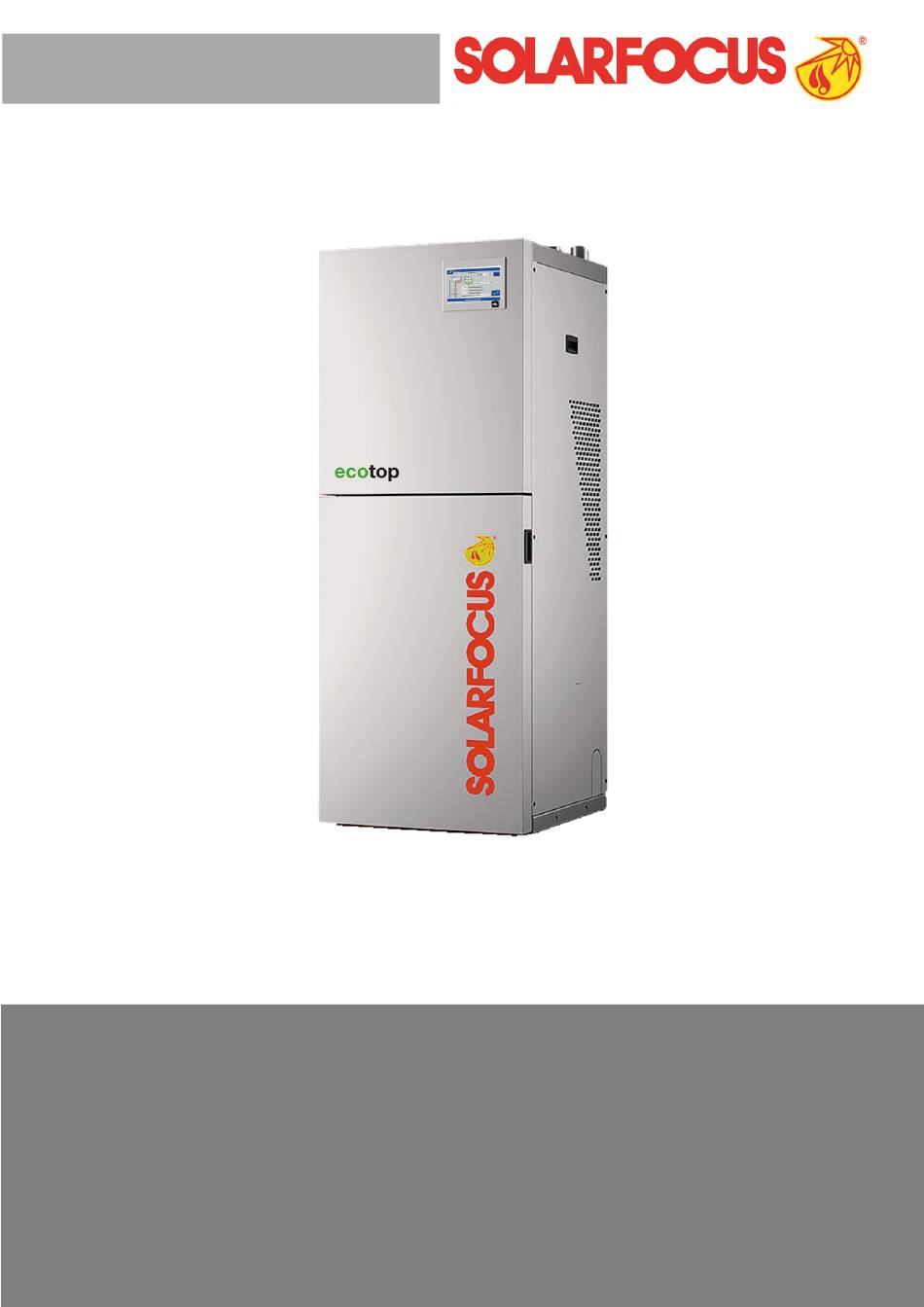

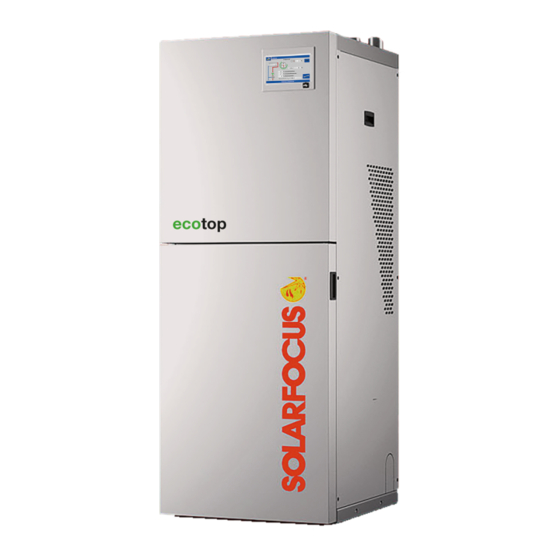

- Page 1 Pellet boiler ecotop zero , ecotop light Operation manual for the system operator Read carefully before operating. DR-0178-EN / v7-202109...
-
Page 2: Table Of Contents
1 About this manual Content 1 About this manual 11 Temperature difference charge control 2 Safety information 12 mySOLARFOCUS app 12.1 Requirements for use 3 Warranty, guarantee, liability 12.2 Connecting the control to the internet 3.1 Technical specifications for warranty and 12.3 Register on the web server guarantee claims 12.4 Install app, register user... -
Page 3: Safety Information
Installation and commissioning – System may only be installed and put into ope- The guide describes the software version 19.040 manager-touch ration by qualified personnel (SOLARFOCUS ser- of the controleco Main screen of the vice technician or SOLARFOCUS service partner. -
Page 4: Technical Specifications For Warranty And Guarantee Claims
Set pressure cor- – The repair and/or warranty replacement shall be rectly, check regularly. carried out on site or in the SOLARFOCUS fac- – Existing underfloor heating: Attention with old, tory at our discretion. diffusion-open plastic pipes (carry out a sys- –... -
Page 5: Cessation Of Entitlements
3.4 Limitation of liability – The boiler has an automatic fuel ignition system, SOLARFOCUS GmbH assumes no liability for injury automatic fuel supply and automatic cleaning of or material damage resulting from: the heat exchanger. -
Page 6: Accessories
2 Safety information 4.5 Accessories 4.6 Type plate Lifting aid – Optional accessories for carrying/moving the boi- – Item 6144 4.7 CE declaration of conformity Abb. 2-1: Lifting aid mounted The conformity of the produce is declared by the manufacturer in accordance with the Machinery Direc- Extension for exhaust pipe connection tive 2006/42/EC;... - Page 7 2 Safety information Overtemperature reset (OTR) The safety valve (or a boiler safety group) is not included in the boiler. On-site installation required. EMERGENCY OFF switch – The safety temperature limiter (STL) is a safety device that prevents overheating of the boiler. –...
-
Page 8: Efficient And Low-Emission Operation
2 Safety information 4.9 Efficient and low-emission operation 4.10 Functional components Please note the following recommendations from the EU Energy Efficiency Directive: Use of a buffer tank Since maximum combustion is possible only in stan- dard operation of the boiler, and greater losses and higher emissions occur during the warm-up and burn- out phases, use of a buffer tank is recommended. -
Page 9: Innovative Technologies
4.11 Innovative technologies Electrostatic dust collector To filter even the last remaining dust particles from the flue gas stream SOLARFOCUS has developed an integrated electrostatic dust collector. An elec- trode ionises the tiny dust particles, which then form a layer of dust deposits around the electrode. The elec- trode is cleaned automatically during the course of the heat exchanger cleaning process. -
Page 10: Technical Specifications
2 Safety information 4.12 Technical specifications zero light ecotop , ecotop Nominal heat output (NHO) 15.4 19.7 24.0 [kW] Heat output range 4.6 - 15.4 5.9 - 19.7 7.2 - 24.0 [kW] Energy efficiency class Boiler class (according to EN 303-5:2012) Boiler efficiency - zero - full load 95.7 95.3... - Page 11 2 Safety information zero light ecotop , ecotop zero Emissions according to test report - ecotop Emission values from the test report:Testing Insti- TÜV SÜD TÜV SÜD TÜV SÜD 2219038-1 2219038-2 2219038-3 tute / Test Report No. CO full load [mg/m³] CO Partial load [mg/m³]...
- Page 12 2 Safety information [1] Flue gas temperature can be adjusted electronically. [2] A draught stabiliser must be fitted if the specified draught of 15 Pa is exceeded (Caution: In a boiler with room-sealed operation, use a room-sealed independent draught limiter) Operation manual ecotop-zero, ecotop-light...
-
Page 13: Dimensions And Connections
2 Safety information Side view 4.13 Dimensions and connections Front Top view - flue gas pipe connection aligned upwards Back Top view - flue gas pipe connection aligned back- wards Boiler return Boiler flow Flue gas pipe Pellet return air Pellet suction Operation manual ecotop-zero, ecotop-light... -
Page 14: Use And Operation
5 Use and operation 5 Use and operation Chimney sweep function This function is used to perform the emission mea- Touch display for operation surements prescribed by law. If the boiler is supplied with a mains power supply, the manager-touch boiler control startseco . -
Page 15: Heating Circuit Output Test
5 Use and operation 5.3.1 Heating circuit output test 5.4 Customer menu The available electrical outputs can be switched on/off directly using the button. Can be used to test function of individual components. CAUTION - Only to be undertaken by qua- lified personnel. -
Page 16: Vacuum Output
An even reduction of the level external boiler may only start when it receives the in the pellet storage area is achieved. release from the SOLARFOCUS boiler (e.g. on the Selectively: The heads are successively sucked basis of a lack of fuel, operating fault). -
Page 17: Message Log
Password reset The current password is reset to the value solarfocus. Accept as new password Enter a new password in the input field and press the button. -
Page 18: Qualified Personnel Menu
– The password predefined by the manufacturer support activities). is solarfocus The following points are helpful for setting up a PC/- – After login, the screen view of the control unit router to control the VNC server, which requires know- is available. - Page 19 VNC Viewer on the local PC. ► Press the Reset password button to reset the password to the default password solarfocus. Version 2: Installation of VNC viewer for access from an external PC (PC outside the home net- work) –...
- Page 20 5 Use and operation Write e-mail 5.4.6.4 mySOLARFOCUS app Used to manually send e-mails. The recipient’s address can be selected from the address book using To and CC or manually entered in the recipient line. Pressing the button displays the screen with infor- mation relating to online registration for the mySOLARFOCUS app (serial number, PIN, status, etc.)
-
Page 21: Heating Circuit
6 Heating circuit 6.1 Heating circuit settings 6 Heating circuit Abb. 2-25 1 Heating circuit operating mode > 21 Abb. 2-24 2 Room settings (Button is only visible when the Room effect parameter is 1 Outside temperature set to On or Sliding; this can be found in the Specialist per- 2 Average outside temperature sonnel system parameters) 3 Room temperature... -
Page 22: General Settings
6 Heating circuit Buffer difference Time switching The burner starts when the tank temperature top falls below the required flow temperature minus the buffer In this operating mode, the timed switch-over bet- difference. ween Heating mode and Reduced mode is defined. You can enter the times for heating mode Daily or In Example: blocks. - Page 23 6 Heating circuit 2-point heating curve Example for calculation of nominal flow tem- perature (see the following illustration): Flow temperature at outside temperature of -15°C = 45°C Flow temperature at outside temperature of +15°C = 22°C Current external temperature = -5°C In the heating circuit operating mode Heating mode, this applies: >...
-
Page 24: Dhw Heating
7 DHW heating Perceived Current 7 DHW heating Recommended adap- Outside tem- room tem- tation of heating curve perature perature Increase temperature too cold value at -5°C to +5°C Reduce temperature too hot DHW can be heated up in two ways: value at –... -
Page 25: Dhw Tank Settings
6 Heating circuit 7.1.1 DHW tank settings DHW tank operating mode Always off: The DHW tank charge pump is switched off permanently. Exception for frost protection mode: The DHW tank charging pump is activated if - the outside temperature is <2°C, and - the DHW tank temperature goes to <10°C. -
Page 26: Recirculation Control
8 Recirculation control Fresh water module settings 8 Recirculation control Pump control (optional additional function) Always off: The fresh water module pump is per- A recirculation line means that hot water can be manently switched off; no domestic hot water is hea- quickly available at the extraction points (also called ted up. -
Page 27: Recirculation Control - Options
6 Heating circuit Release mode Temperature- and time-controlled recir- culation Always off: The recirculation control is switched off permanently. Temperature-controlled recirculation is only available if a temperature sensor is connected for the recircu- Always on: The recirculation control is switched on lation temperature. -
Page 28: Buffer Tank
9 Buffer tank 9 Buffer tank 10 Solar system (optional additional function) The solar yield is loaded into a solar tank. This tank can be a buffer tank or a DHW tank. Abb. 2-34 1 Buffer tank temperature Top Abb. 2-35 2 Temperature of the energy source 3 Buffer cylinder temperature bottom 1 Collector temperature (measured at the col-... -
Page 29: Temperature Difference Charge Control
11 Temperature difference charge control 11 Temperature difference 12 mySOLARFOCUS app charge control Function: The mySOLARFOCUS app allows you to (optional additional function) use your smartphone to access specific control manager-touch functions: – Setting the room temperature and heating circuit flow temperature, including heating times. –... -
Page 30: Register On The Web Server
(=DHCP OFF), i.e. the control unit has a constant IP address. 12.3 Register on the web server The touch display must be registered on the SOLARFOCUS Web server: ► Press the app button Abb. 2-41 12.4 Install app, register user The mySOLARFOCUS app is available in the Apple... -
Page 31: Add System
11 Temperature difference charge control ► Press the Register new user button. As an alternative to the app, you can also add systems on the website: https://www.mysolarfocus.com Important: In principle only one user may access a system. If additional users wish to access a system, then they must be approved in advance Approve additional users >... -
Page 32: Weatherman Function
> 29). Has your heating system been correctly regis- tered on the SOLARFOCUS web server? Is the connection status between the control and the SOLARFOCUS web server online? Is the Send data parameter set to Yes? Abb. 2-45 13.1 Information... -
Page 33: Heating Circuit
13 Weatherman function The following applies for three menus: The level of Solar yield in the room influence can be set using the plus/minus buttons on Activate this function only if solar radiation directly the bars, in 10 % steps, influences the heating circuit (e.g. -
Page 34: Buffer Tank Loading
14 Maintenance (and cleaning: Activate the weather influence domestic hot water The bar can be used to set the level of influence for function only if the DHW tank/domestic hot water each buffer tank individually. area is heated by a solar power system, or is charged 0% = if the burner has started and the buffer tank is from a buffer tank that is heated by a solar power sys- within a time release, the buffer tank is completely... -
Page 35: Required Activities - Overview
13 Weatherman function 14.1.1 Empty ash container 14.1 Required activities - overview The implementation responsibility of the maintenance Empty the ash container when the message on the activities is defined according to type and extent (sys- boiler control display appears. In the course of empty- tem operator SO or qualified personnel QP ). -
Page 36: Boiler Cleaning - Manual Activities
13 Weatherman function ► Press the Ash box emptied button (in the selec- 14.1.2.2 Check the stainless steel combustion tion menu,ash box button). grate support The stainless steel combustion grate must lie completely flat and horizontally. When inclined, ignition problems are possible, or this can lead to uneven wear of the stain- less steel combustion grate. -
Page 37: Check System Pressure
Depending on the operating hours (in each case after 1800 hours, fixed value) or a defined duration (in months), the control shows an indication of the ne- cessary professional maintenance of the boiler. Contact your heating engineer or the SOLARFOCUS Service Hotline > 3 Operation manual ecotop-zero, ecotop-light... -
Page 38: Perform Emissions Measurement
15 Perform emissions measurement 15.1 Emission measurement for external 15 Perform emissions mea- boilers surement If necessary, use the menu output test heating circuit – The emissions measurement at the boiler is a > 15 to carry out the emission measurement on an legal requirement and must be performed by qua- external boiler. -
Page 39: Messages
16 Messages Possible messages 16 Messages In accordance with the prevailing message, it is deter- Faults that occur are displayed in an information win- mined who is supposed to take the required action manager-touch dow in the controleco and each mes- (system operator SO or qualified personnel QP). - Page 40 16 Messages 7 - Flue gas sensor wrong measured value No. Message AB FP 67 Room air flap does not open The flue gas temperature sensor has a defect and must be replaced. 68 Room air flap does not close 69 Communication error with room air module 9 - Flue gas sensor short circuit...
- Page 41 16 Messages 19 - Extraction auger is blocked 24 - Safety chain has triggered The thermal contact on the motor of the storage area Due to a sudden reduction in the heat transfer, the auger has triggered. The boiler is still ready for ope- boiler temperature can rise above 90°C.
- Page 42 16 Messages 35 - CANbus disruption 40 – Ignition not possible Communication between the control panel (touch-dis- This message appears after two unsuccessful igni- play) and the boiler's electrical power element is dis- tion attempts. rupted. Pellet storage container is empty Bus cable defective ►...
- Page 43 16 Messages 43 - Suction head set error 52 - Limit thermostat is open This message is only possible in connection with the The heating circuit limit thermostat is open. Heating optional accessory Automatic suction head set, see water with too high temperature was discharged into also separate instructions DR-0004.
- Page 44 16 Messages A fuse in the electronic module is defective 77 - Fuse F12 defective ► Check the fuse, replace if necessary Fuse F12 protects outputs X26, X27 and X80 on the boiler power element (holding solenoids for air supply Error in the module’s power supply to the boiler).
-
Page 45: Electrical Fuses
17 Electrical fuses 82 - Differential pressure - Boiler stop 87- Differential pressure - Boiler immediate stop The permissible pressure difference measured by the The permissible pressure difference measured by the differential pressure gauge has been undershot. differential pressure gauge has been undershot. False air is sucked in at the ash box False air is sucked in at the ash box ►... - Page 46 16 Messages Fuses present on boiler power element Value Size Use F1 T 3.15A 5x20 Fuse 230V AC: Pre-fusing main transformer F2 T 125mA 5x20 Fuse 230V AC: Pre-fusing standby transformer F3 T 10A 5x20 Fuse 230V AC: relay outputs F5 F 8A 5x20 Fuse for X18 (power supply...
