5 Use and operation

Touch display for operation
If the boiler is supplied with a mains power supply, the
boiler control starts eco
started up to show the main screen.
i
Operate the touch display with a finger. Do not
use hard and/or sharp implements.
If no inputs are made for 5 minutes (factory setting),
the display will switch to standby mode.
Tapping the display again restarts the display with the
main screen.
Buffer battery in operating element
A replaceable buffer battery (CR2032) ensures that
data (time, settings) are retained in the operating unit
when the power supply is switched off.

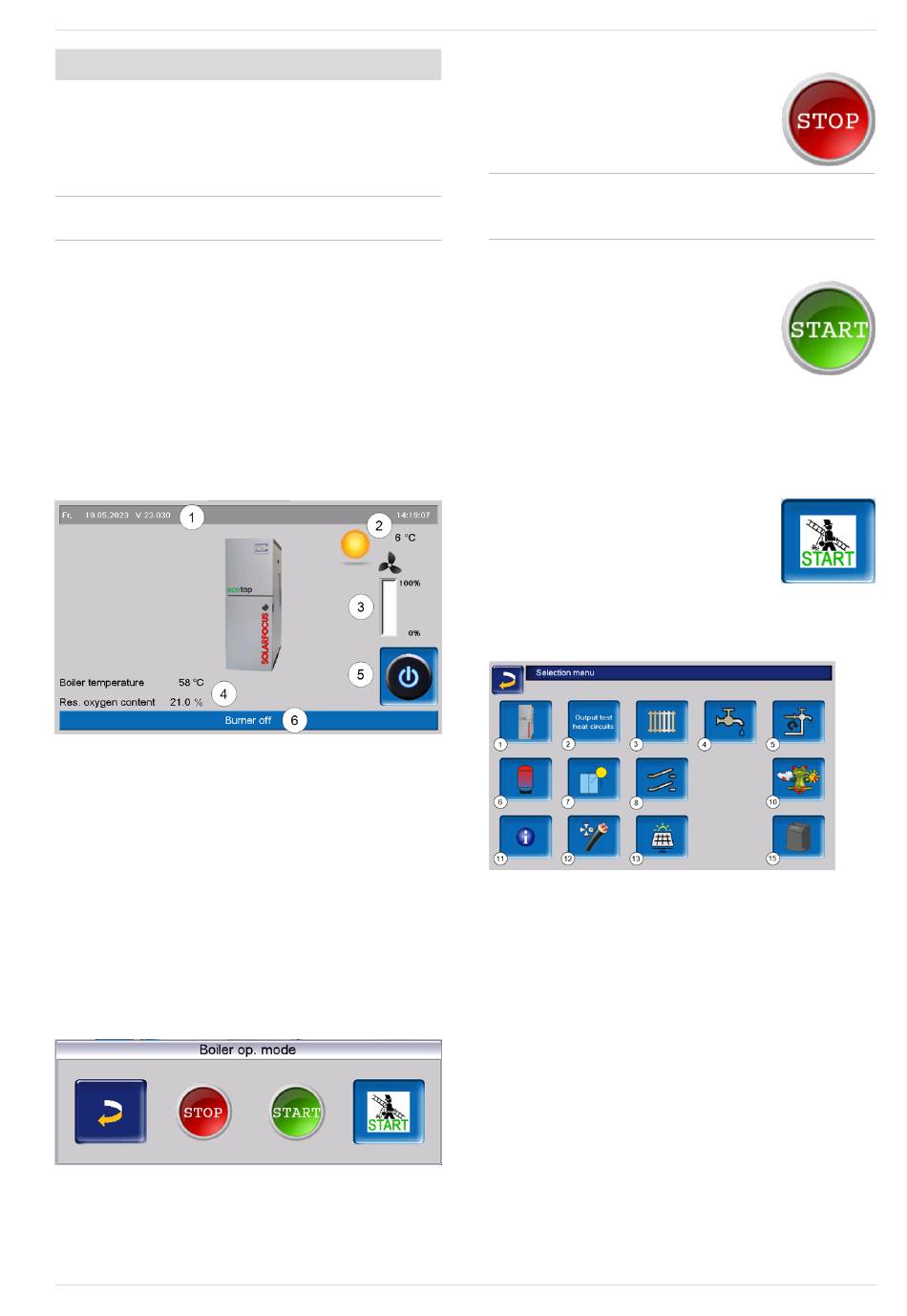

5.1 Main screen of boiler control

1 Software version for control
2 Outside temperature
3 Boiler output (rotational speed of induced
draught fan)
4 Boiler temperature and residual oxygen con-
tent in flue gas

5 Boiler operating mode

6 Status line
Touching the main screen changes to the Selection
menu > 13
5.2 Boiler operating mode
Operation manual ecotop-zero, ecotop-light
manager-touch
. The control is
> 13
STOP
The burnerisswitched off. No heating
requests of the connected devices are
fulfilled.
WARNING - The burner must not start! Only
!
the automatic start-up of the heating circuit
pump is active to protect against frost.
START
After pressing the START button, the
burner is ready for operation and is able
to fulfil heating requests from the con-
nected devices. The burner goes into
standby as soon as a heating request is
fulfilled, or the time release
able.
Chimney sweep function
This function is used to perform the emis-
sion measurements prescribed by law.

5.3 Selection menu

Access to the selection menu is possible by pressing
the boiler symbol on the main screen.
1 Customer menu
2 Output test heating circuit
(Only to be undertaken by qualified personnel.)
3 Heating circuit > 1
4 Hot water heating
5 Circulation control (optional)
6 Buffer tank(optional)
7 Solar system (optional)
8 Temperature difference, charge control
(optional) > 32
10 Weatherman function (optional)
11 Information
12 Remote line (optional)
13 Photovoltaic system (optional)
15 Boiler cleaning > 40
5 Use and operation
> 14 is no longer avail-
> 14
> 14
> 27
> 29
> 31
> 32
> 37
