FUNCTION MODES:

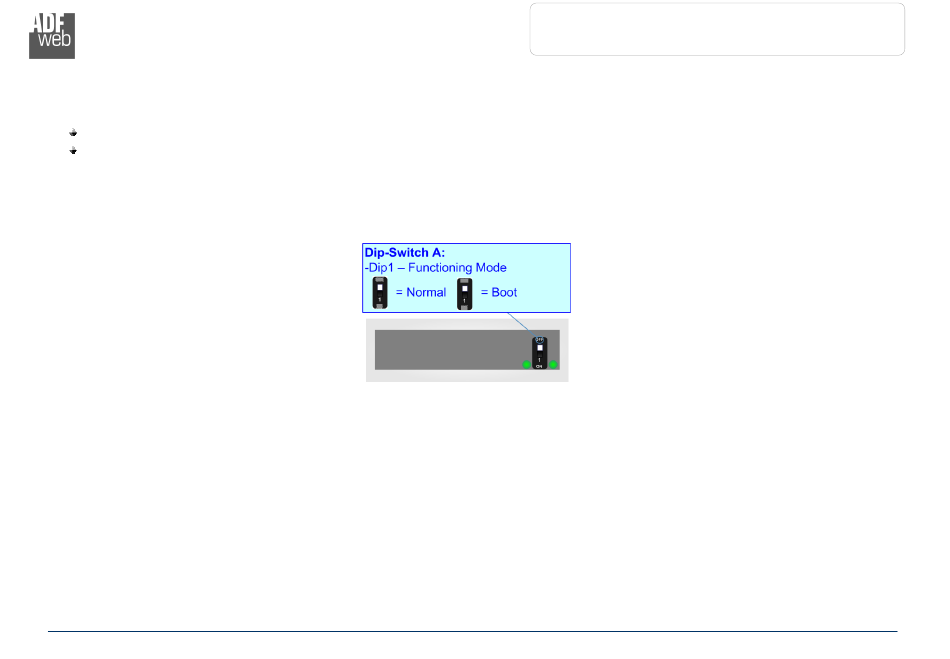

The device has got two functions mode depending of the position of the 'Dip1 of Dip-Switch A':
The first, with 'Dip1 of Dip-Switch A' at "OFF" position, is used for the normal working of the device.
The second, with 'Dip1 of Dip-Switch A' at "ON" position, is used for upload the Project and/or Firmware.
For the operations to follow for the updating, see 'UPDATE DEVICE' section.
According to the functioning mode, the LEDs will have specifics functions, see 'LEDS' section.
ADFweb.com S.r.l.
User Manual IO-Link Slave / DeviceNet Master
Document code: MN67969_ENG
Revision 1.000
Page 11 of 29
