User Manual PROFINET / PROFIBUS Slave
Document code: MN67605_ENG
For others PROFINET products see also the following link:
Converter PROFINET to
www.adfweb.com?Product=HD67608
www.adfweb.com?Product=HD67609
www.adfweb.com?Product=HD67610
www.adfweb.com?Product=HD67600
www.adfweb.com?Product=HD67601
www.adfweb.com?Product=HD67601
www.adfweb.com?Product=HD67602
www.adfweb.com?Product=HD67602
www.adfweb.com?Product=HD67603
www.adfweb.com?Product=HD67603
www.adfweb.com?Product=HD67604
www.adfweb.com?Product=HD67606
Do you have an your customer protocol?
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
in India
in India
in India
in India
Revision 1.000
Pagina 1 di 22
(DeviceNet Master)
(DeviceNet Slave)
(J1939)
(NMEA2000)
(Serial RS232)
(Serial RS485)
(Modbus Master RS232)
(Modbus Master RS485)
(Modbus Slave RS232)
(Modbus Slave RS485)
(PROFIBUS Master)
(CAN)
Phone +39.0438.30.91.31
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ADF Web HD67605-A1
Summary of Contents for ADF Web HD67605-A1

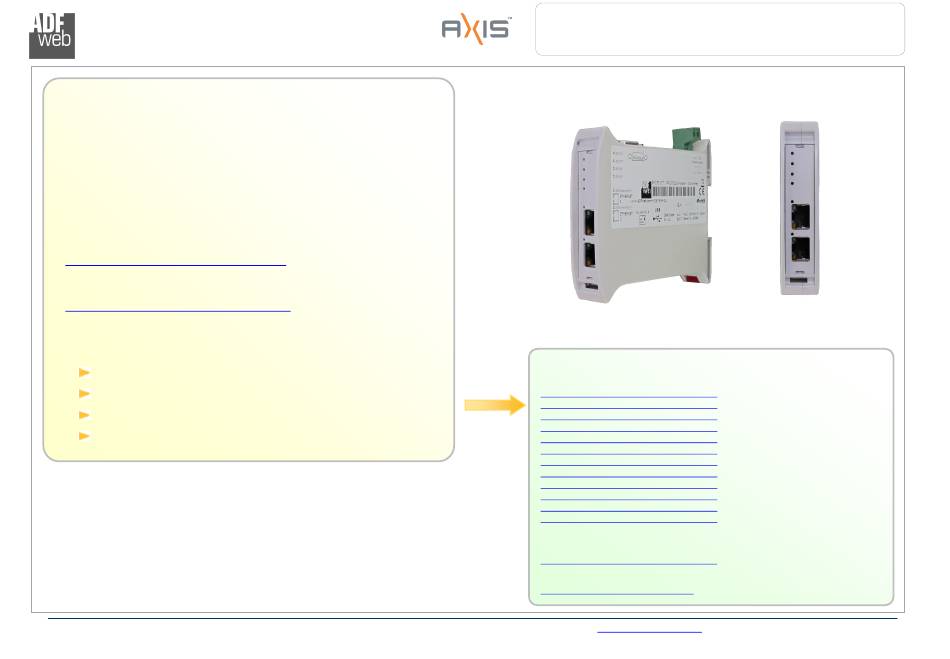

- Page 1 Pagina 1 di 22 Industrial Electronic Devices User Manual Revision 1.000 English PROFINET / PROFIBUS Slave - Converter (Order Code: HD67605-A1) for Website information: www.adfweb.com?Product=HD67605 for Price information: www.adfweb.com?Price=HD67605-A1 Benefits and Main Features: For others PROFINET products see also the following link:...
-
Page 2: Table Of Contents
User Manual PROFINET / PROFIBUS Slave Document code: MN67605_ENG Revision 1.000 Pagina 2 di 22 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that Page you need to check that the following document is: INDEX Updated UPDATED DOCUMENTATION... -
Page 3: Security Alert
User Manual PROFINET / PROFIBUS Slave Document code: MN67605_ENG Revision 1.000 Pagina 3 di 22 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device are required for each individual application, legal and safety regulation. -
Page 4: Example Of Connection
User Manual PROFINET / PROFIBUS Slave Document code: MN67605_ENG Revision 1.000 Pagina 4 di 22 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 5: Connection Scheme
User Manual PROFINET / PROFIBUS Slave Document code: MN67605_ENG Revision 1.000 Pagina 5 di 22 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67605-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 6: Characteristics
Pagina 6 di 22 Industrial Electronic Devices CHARACTERISTICS: The HD67605-A1 is a PROFINET / PROFIBUS Slave Converter. It allows the following characteristics: Up to 244 bytes in reading and 244 bytes in writing; Triple isolation between PROFIBUS - Power Supply, PROFIBUS - Ethernet, Power Supply - Ethernet. -
Page 7: Power Supply
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC: Device Consumption [W/VA] HD67605-A1 Caution: Not reverse the polarity power HD67605-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 8: Function Modes
User Manual PROFINET / PROFIBUS Slave Document code: MN67605_ENG Revision 1.000 Pagina 8 di 22 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the ‘Dip2 of Dip-Switch B’: The first, with ‘Dip2 of Dip-Switch B’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip2 of Dip-Switch B’... -
Page 9: Leds
User Manual PROFINET / PROFIBUS Slave Document code: MN67605_ENG Revision 1.000 Pagina 9 di 22 Industrial Electronic Devices LEDS: The device has got six LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode ON: Device powered... -
Page 10: Profibus
PROFINET: The PROFINET connection must be made using Connector3 and/or Connector4 of HD67605-A1 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. -
Page 11: Use Of Compositor Sw67605
User Manual PROFINET / PROFIBUS Slave Document code: MN67605_ENG Revision 1.000 Pagina 11 di 22 Industrial Electronic Devices USE OF COMPOSITOR SW67605: To configure the Converter, use the available software that runs with Windows, called SW67605. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 12: Set Communication
User Manual PROFINET / PROFIBUS Slave Document code: MN67605_ENG Revision 1.000 Pagina 12 di 22 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, PROFINET and PROFIBUS Slave. By Pressing the “Set Communication” button from the main window for SW67605 (Fig. 2) the window “Set Communication”... -
Page 13: Profinet Xml
User Manual PROFINET / PROFIBUS Slave Document code: MN67605_ENG Revision 1.000 Pagina 13 di 22 Industrial Electronic Devices PROFINET XML: By pressing the “PROFINET XML” button it is possible to save the GSDML file for the PROFINET side. With this feature you can save the configuration of the converter of the PROFINET side. PROFIBUS GSD: By pressing the “PROFIBUS... -
Page 14: Update Device
User Manual PROFINET / PROFIBUS Slave Document code: MN67605_ENG Revision 1.000 Pagina 14 di 22 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button it is possible to load the created Configuration into the device; and also the Firmware, if is necessary. If you don’t know the actual IP address of the device you have to use this procedure: Turn off the Device;... - Page 15 At this point the configuration/firmware on the device is correctly update. Note: When you install a new version of the software it is better if the first time you do the update of the Firmware in the HD67605-A1 device. Note: When you receive the device, for the first time, you have to update also the Firmware in the HD67605-A1 device.
-
Page 16: Mechanical Dimensions
User Manual PROFINET / PROFIBUS Slave Document code: MN67605_ENG Revision 1.000 Pagina 16 di 22 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 10: Mechanical dimensions scheme for HD67605-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 17: Ordering Informations
Enclosure Type A: 1M, 35mm DIN Rail mounting Device Family HD67605: PROFINET / CAN - Converter Order Code: HD67605-A1 PROFINET / CAN - Converter ACCESSORIES: Order Code: AC34001 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V AC Order Code: AC34002 35mm Rail DIN - Power Supply 110V AC 50/60Hz –... -
Page 18: Plc Configuration
User Manual PROFINET / PROFIBUS Slave Document code: MN67605_ENG Revision 1.000 Pagina 18 di 22 Industrial Electronic Devices PLC CONFIGURATION: The configuration and commissioning of the PROFINET Converter as described on the following pages was accomplished with the help of the TIA Portal V11-software of Siemens. - Page 19 User Manual PROFINET / PROFIBUS Slave Document code: MN67605_ENG Revision 1.000 Pagina 19 di 22 Industrial Electronic Devices 2) Import the module in the network; connect the device to the PLC network and edit the parameters of IP, station name etc. ADFweb.com Srl –...
- Page 20 User Manual PROFINET / PROFIBUS Slave Document code: MN67605_ENG Revision 1.000 Pagina 20 di 22 Industrial Electronic Devices 3) Load the configuration into the PLC. ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
-
Page 21: Disclaimer
User Manual PROFINET / PROFIBUS Slave Document code: MN67605_ENG Revision 1.000 Pagina 21 di 22 Industrial Electronic Devices DISCLAIMER All technical content within this document can be modified without notice. The content of the document content is a recurring audit. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 22: Warranties And Technical Support
User Manual PROFINET / PROFIBUS Slave Document code: MN67605_ENG Revision 1.000 Pagina 22 di 22 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following: 1) Obtain a Product Return Number (PRN) from our internet support at www.adfweb.com.
