SET COMMUNICATION:

This section define the fundamental communication parameters of the converter.
By Pressing the "Set Communication" button from the main window for SW67614 (Fig. 2) the
window "Set Communication" appears (Fig. 3).
The window is divided in two sections, one for PROFINET and one for DMX.
The means of the fields for "PROFINET" are:
In the field "IP ADDRESS" insert the IP address that you want to give to the Converter;
In the field "SUBNET Mask" insert the SubNet Mask;
In the field "GATEWAY" insert the default gateway that you want to use. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of the net;
In the field "Port" the port for PROFINET communication is defined (fixed to '34964');
In the field "PROFINET Name of
node.
The means of the fields for "DMX" are:
In the field "Channel Number" the number of channels of the DMX side is defined (up to 512
channels).
ADFweb.com Srl – IT31010 – Mareno – Treviso
Station" is possible to assign a name to the PROFINET
User Manual DMX / PROFINET
Document code: MN67614_ENG

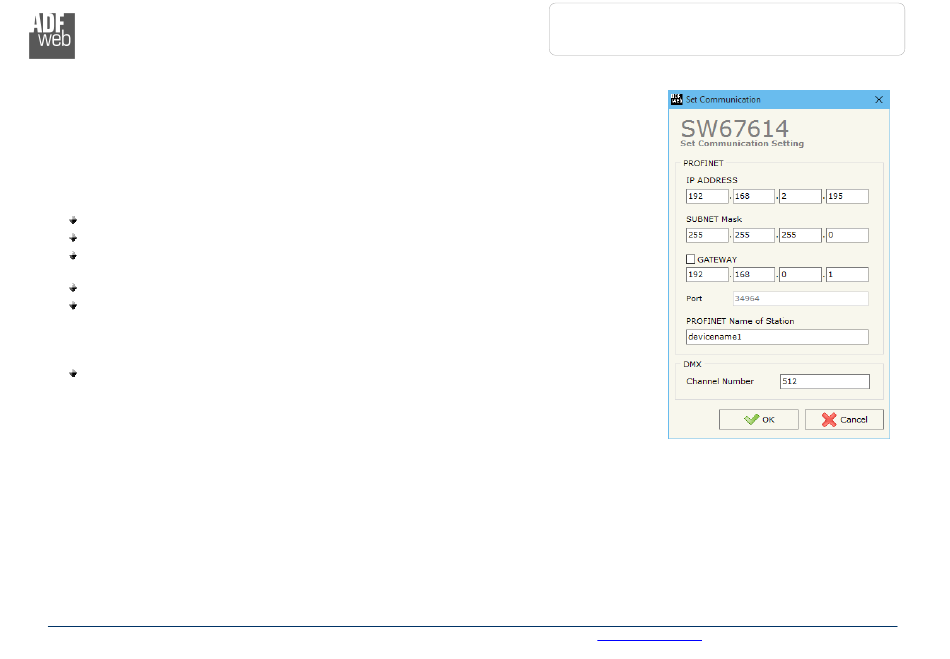

Figure 3: "Set Communication" window
