1.2.4 Cutter

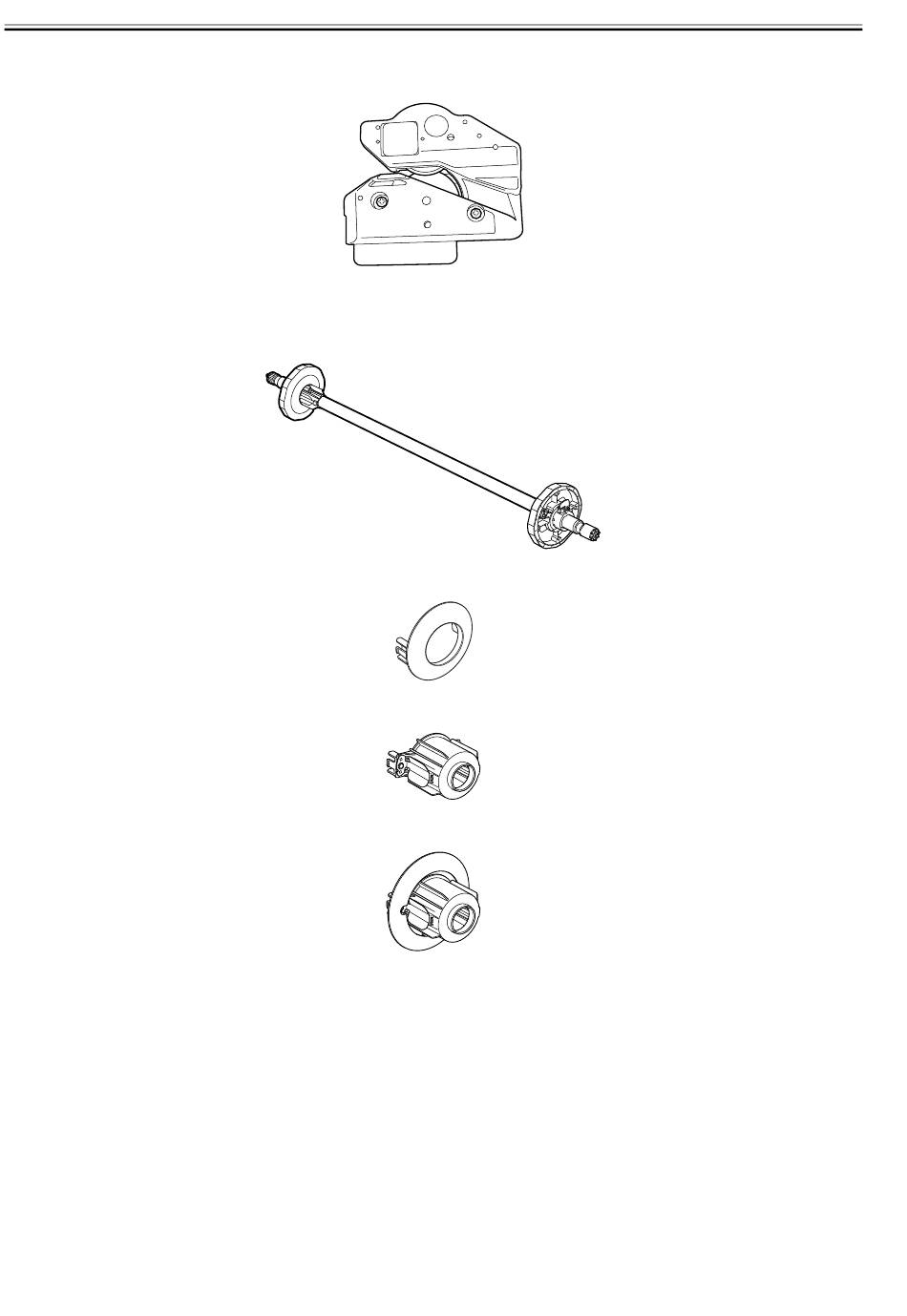

The cutter attached to the cutter unit is a round cutter.

1.2.5 Roll Holder

The roller holder accepts paper tubes having inside diameters of both 2 and 3 inches. It is furnished with attachments for 2- and 3-inch diameter paper tubes.
The roll holder clamps the paper tube of a roll not exceeding 150 mm in outside diameter from the inside.
[2-inch paper tube attachment]
[3-inch paper tube attachment 1]
[3-inch paper tube attachment 2]
