Chapter 4

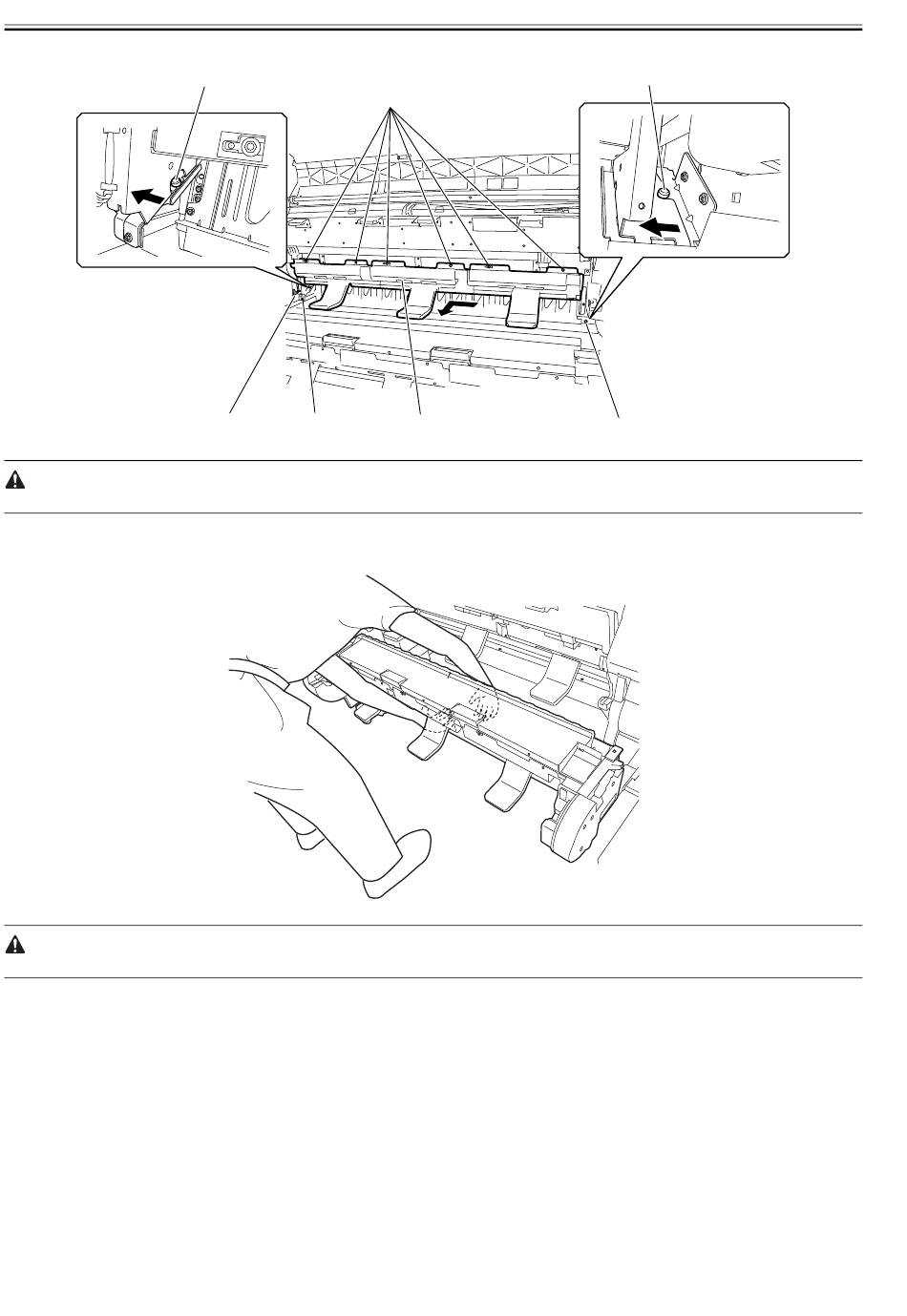

5) Remove eight screws [1] and connector [2] and remove slide pick-up unit [4] by sliding it to the left to release the groove from two pins [3].
The pick-up unit weighs about 27kg. Use maximum care not to drop it or let it hit other objects.
c) Precaution in removing the lower roll unit
In removing the lower roll unit from the printer body, hold the middle parts (front/rear) of the unit firmly.
Be careful in placing the lower roll unit on the floor temporarily not to get your fingers pinched between the floor and unit.
4-30
[3]
[2] [1]
[1]
[4]
F-4-61
F-4-62
[3]
[1]
