4.3.6 Cutter

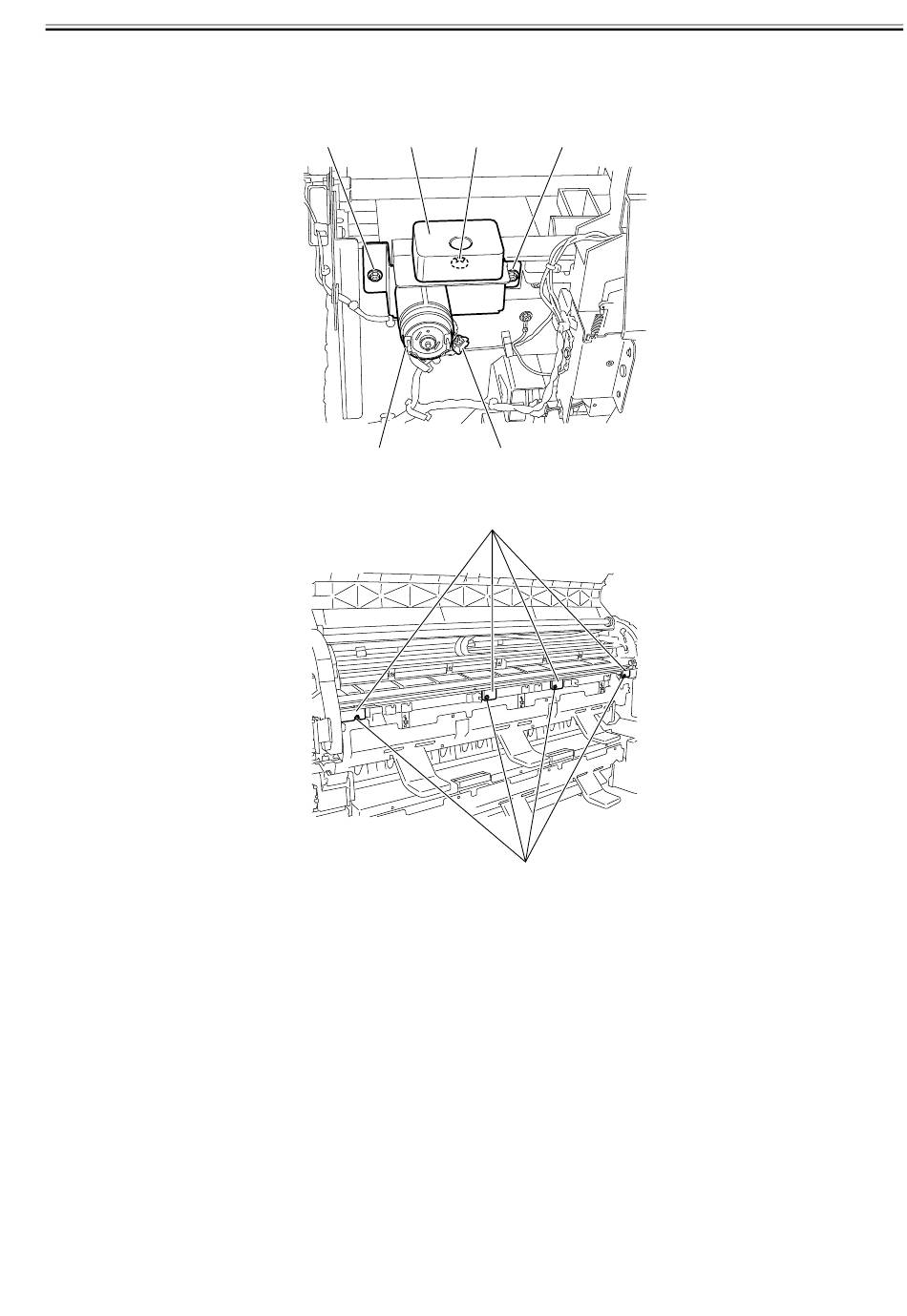

a) Removing the cutter
1) Remove the ejection guides.
2) Remove screw [1] to remove gear cover [2]. Then, remove two screws [3] and connector [4] to remove cutter motor unit [5].
3) Remove four screws [4] to remove four guides [2].
[3] [2] [1]
[5]
F-4-37
[2]
F-4-38
[3]
[4]
[1]
Chapter 4
0020-5669
4-19
