rotate is detected by a pump cam sensor.
Suction pump
Rotating
rollers
HP maintenance jet tray
Suction
pump
Cap
Ink tubes
Purge motor
Pump encoder sensor

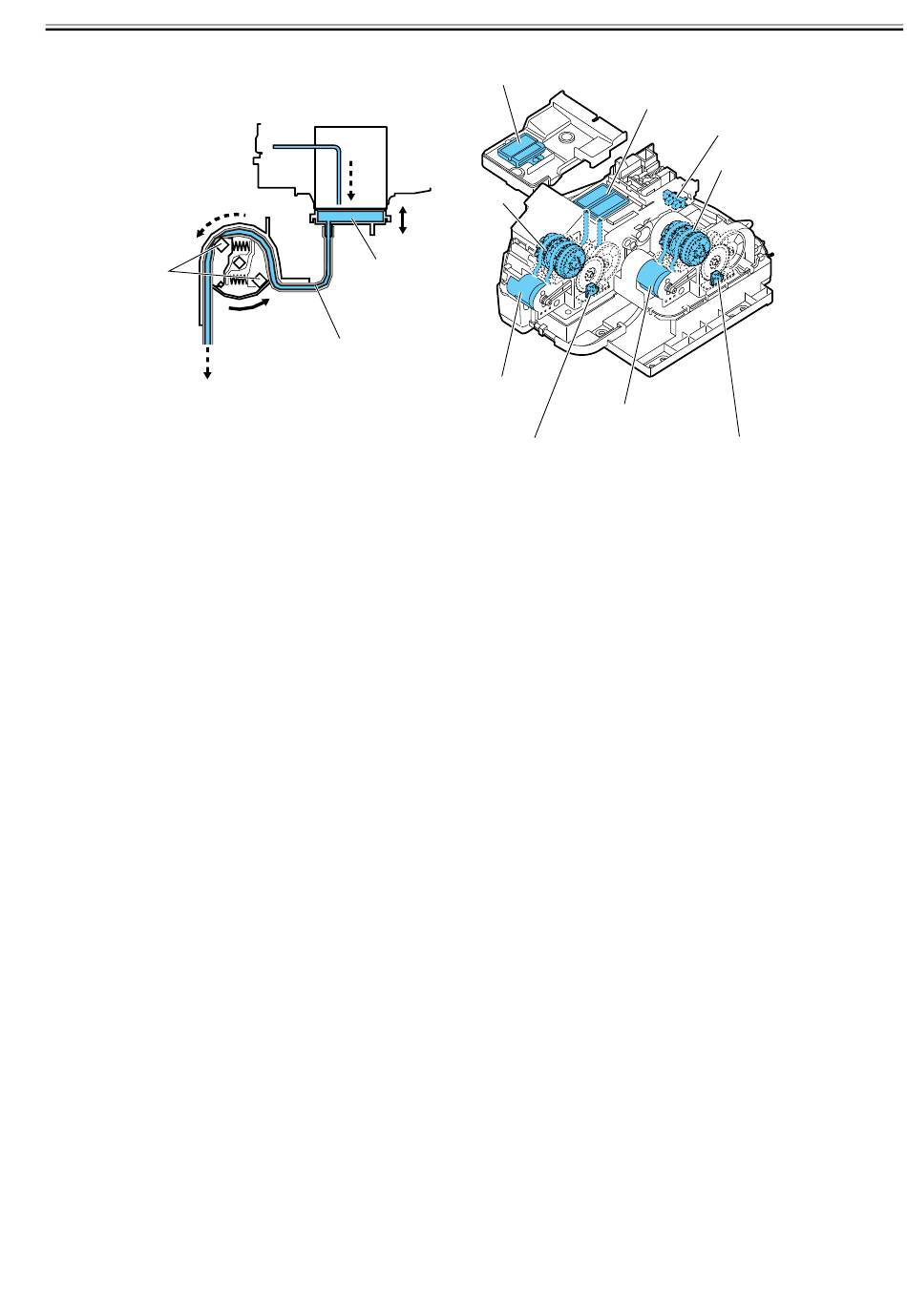

F-2-17
Cap
Pump cam sensor
HP maintenance jet
suction pump
HP maintenance jet
pump motor
HP maintenance jet
pump encoder sensor
Chapter 2
2-29
