Canon imagePROGRAF iPF825 Service Manual page 179

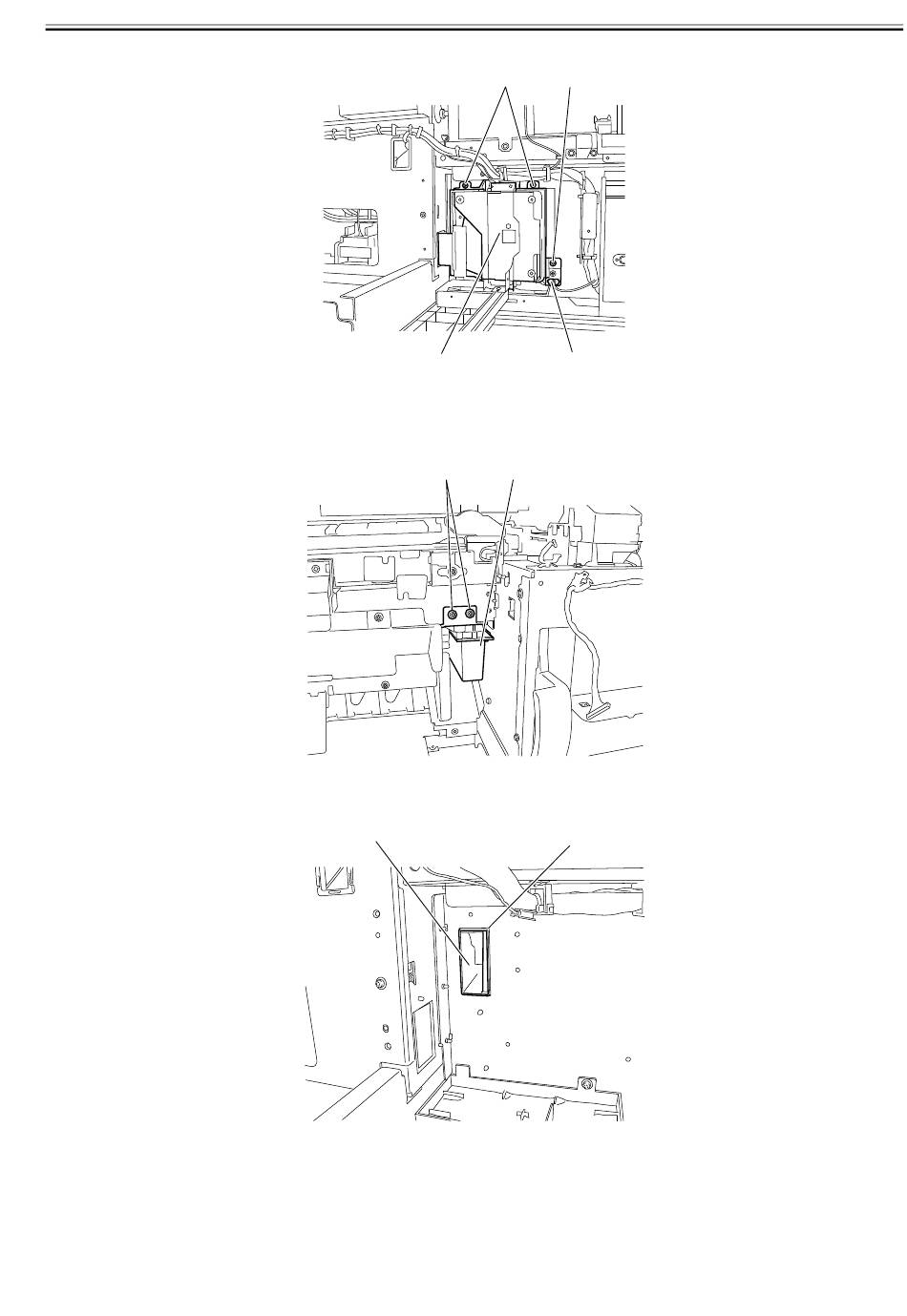

3) Remove three screws [1] and connector [2] to remove platen suction fan unit [3].
d) Removing the platen suction duct
1) Removed the cover stay unit (R).
2) Remove two screws [1] to remove platen suction duct [2].
e) Precaution in mounting the platen suction duct
Check that platen suction duct [1] is firmly seated in hole [2] in the rear side plate.
[1]
[3]
F-4-82
[1] [2]
F-4-83
[1]
F-4-84
[1]
[2]
[2]
Chapter 4
4-37
