Canon imagePROGRAF iPF825 Service Manual page 183

i) Removing the BP maintenance jet ink BOX unit

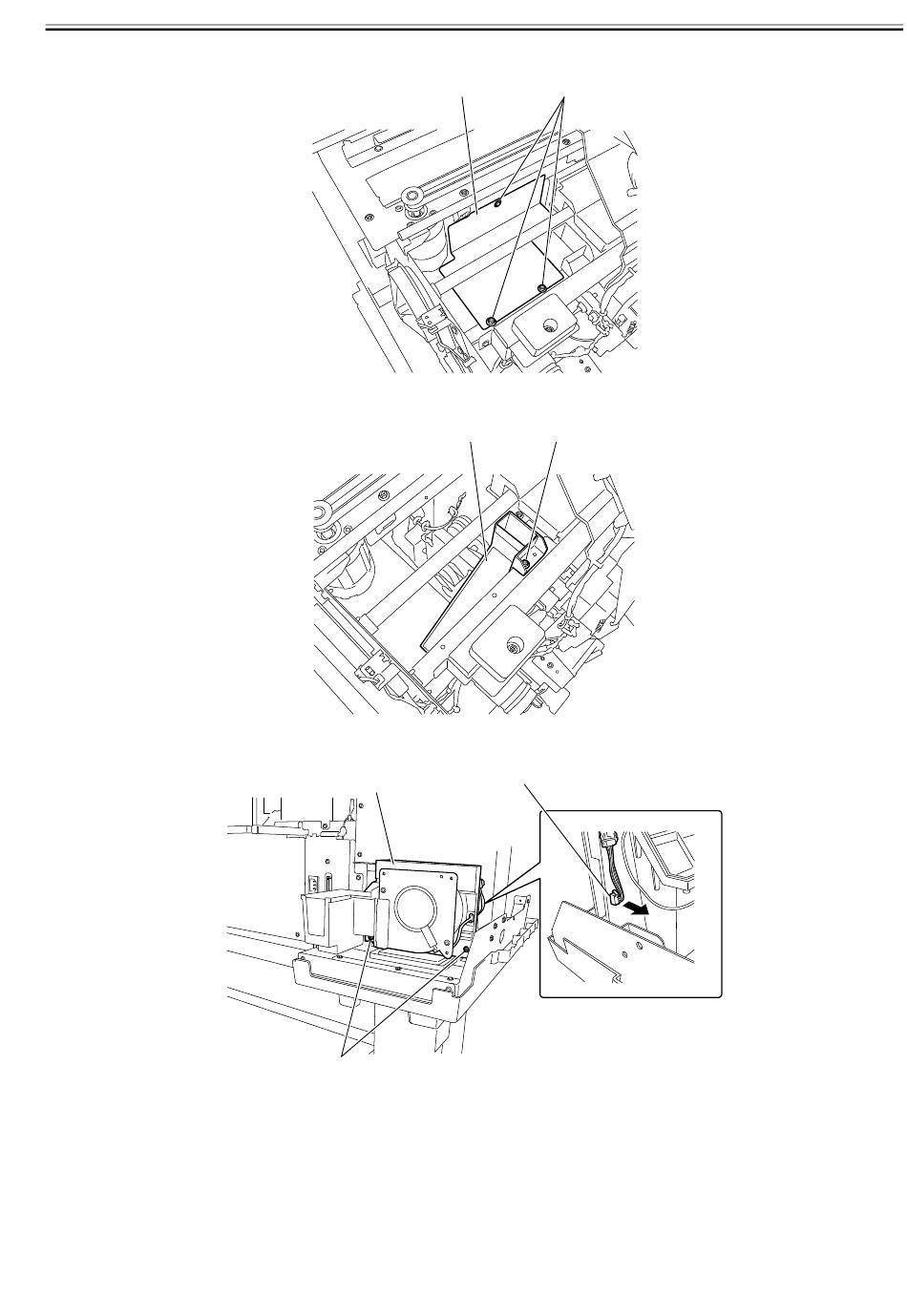

1) Remove three screw [1] to remove support plate [2].
2) Remove screw [1] to remove duct [2].
3) Remove two screws [1] and connector [2] to remove BP maintenance jet ink BOX unit [3].
[2]
F-4-94
[2]
F-4-95
[3]
[1]
F-4-96
[1]
[1]
[2]
