Canon imagePROGRAF iPF825 Service Manual page 182

Chapter 4

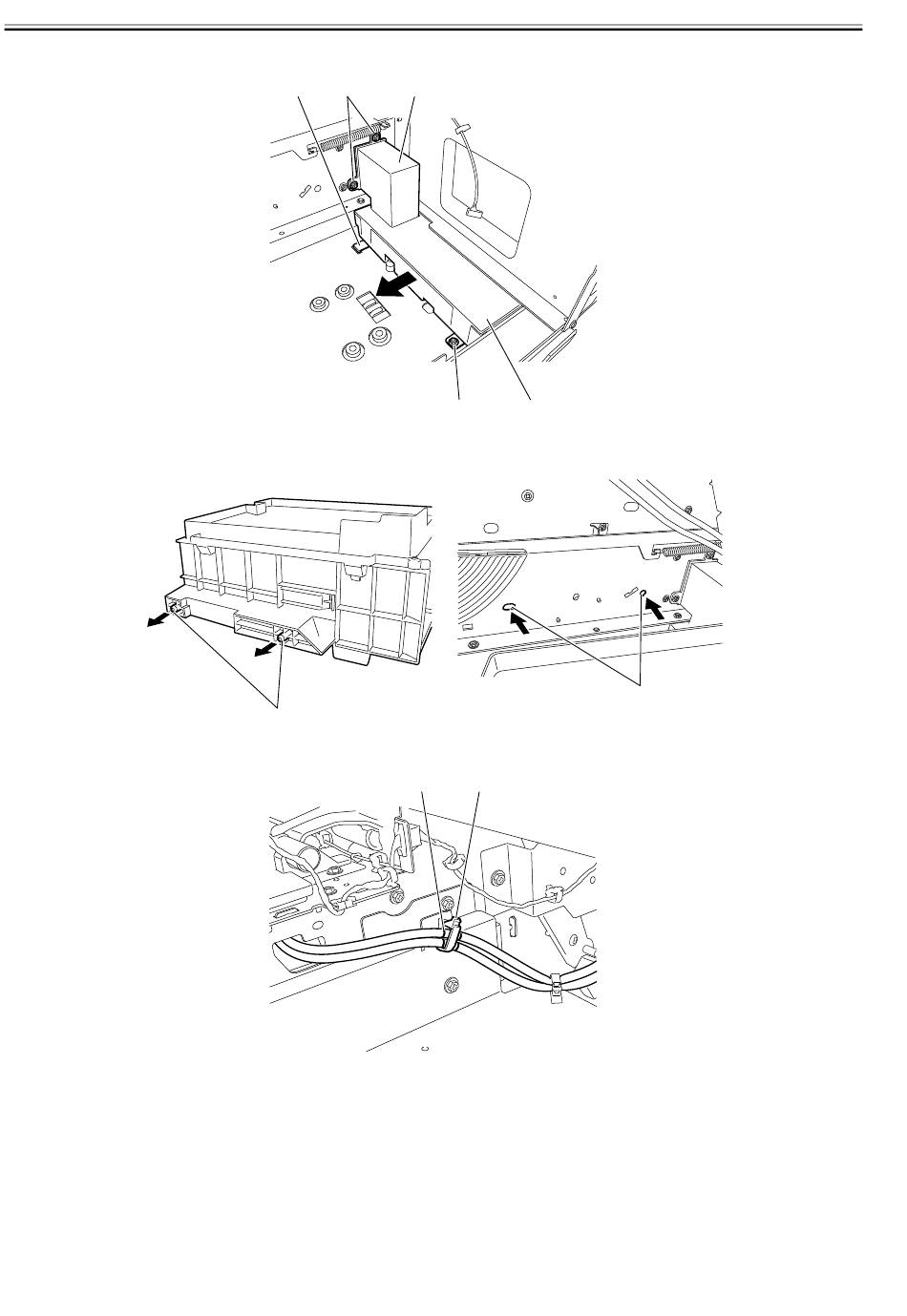

7) Remove two screws [2] to remove duct [2].
8) Remove screw [3] and hook [4] to remove platen suction ink BOX unit [5] from the front.
h) Precaution in mounting the platen suction ink BOX unit
- Mount the maintenance cartridge base unit to ensure that two bosses [1] are inserted in hole [2] in the side plate.
- Clamp the ink tube so its mark [1] will come at the position of harness guide [2].
4-40
[4] [1] [2]
F-4-91
[1]
F-4-92
[1]
F-4-93
[3] [5]
[2]
[2]
