Canon imagePROGRAF iPF825 Service Manual page 160

Chapter 4

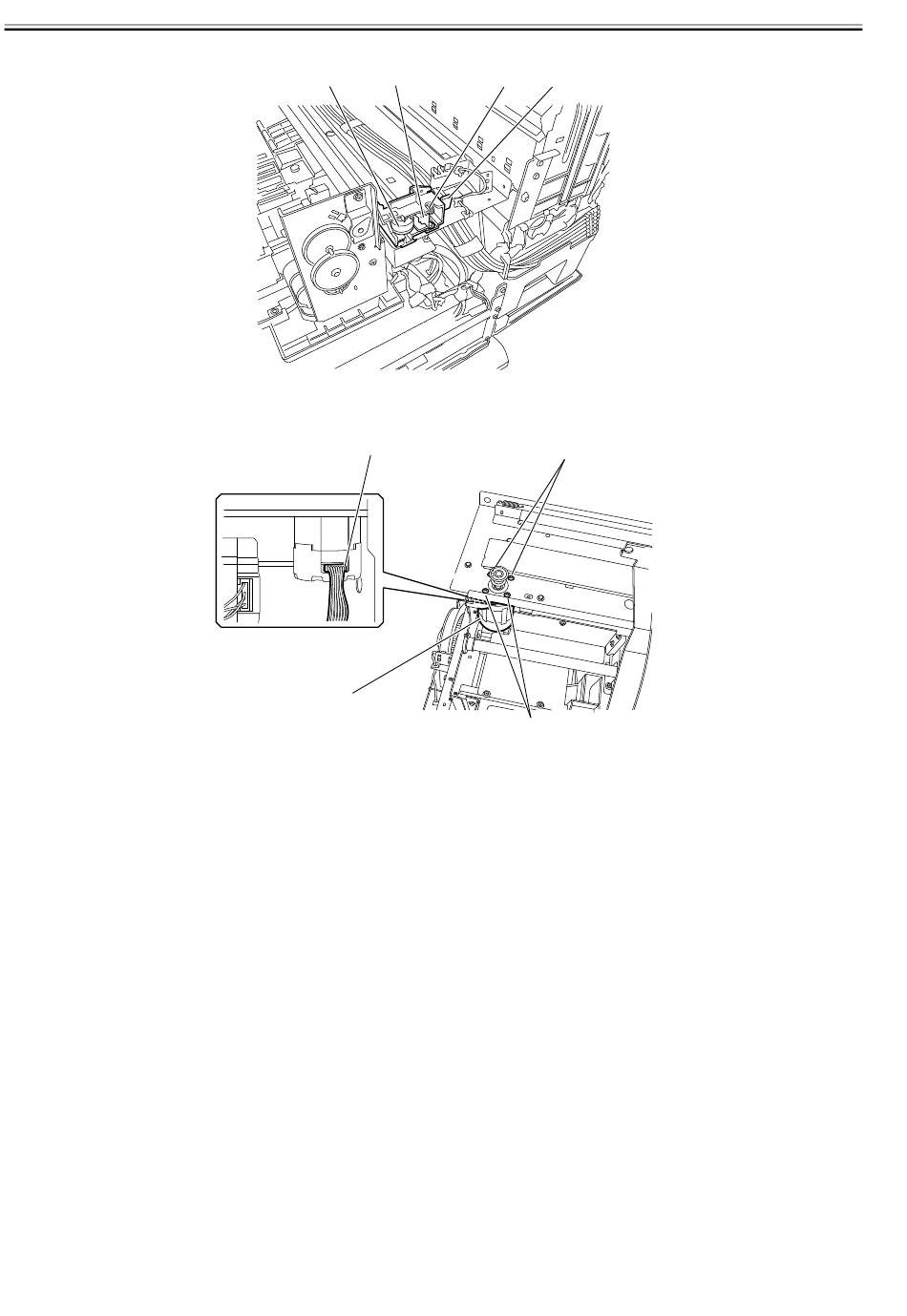

3) Twist off belt fixer knob [1] to loosen the carriage belt. Remove spring [2], guide [3] and pulley [4].
4) Release the carriage belt from the carriage motor pulley.
5) Remove connector [1] and four screws [2] to remove carriage motor [3].
4-18
[4] [3]
F-4-35
[1]
[3]
F-4-36
[2] [1]
[2]
[2]
