PROFITEST H+E EXPERT CHECK
7
User Interface
The tester is equipped with a membrane keypad including function keys and a
rotary switches. The screen is used to display measurement results.
The rotary switches can be used to select the test and adjust the test parameters.
The operating keys are used for general operation and fault simulation.
Control Panel and Navigation

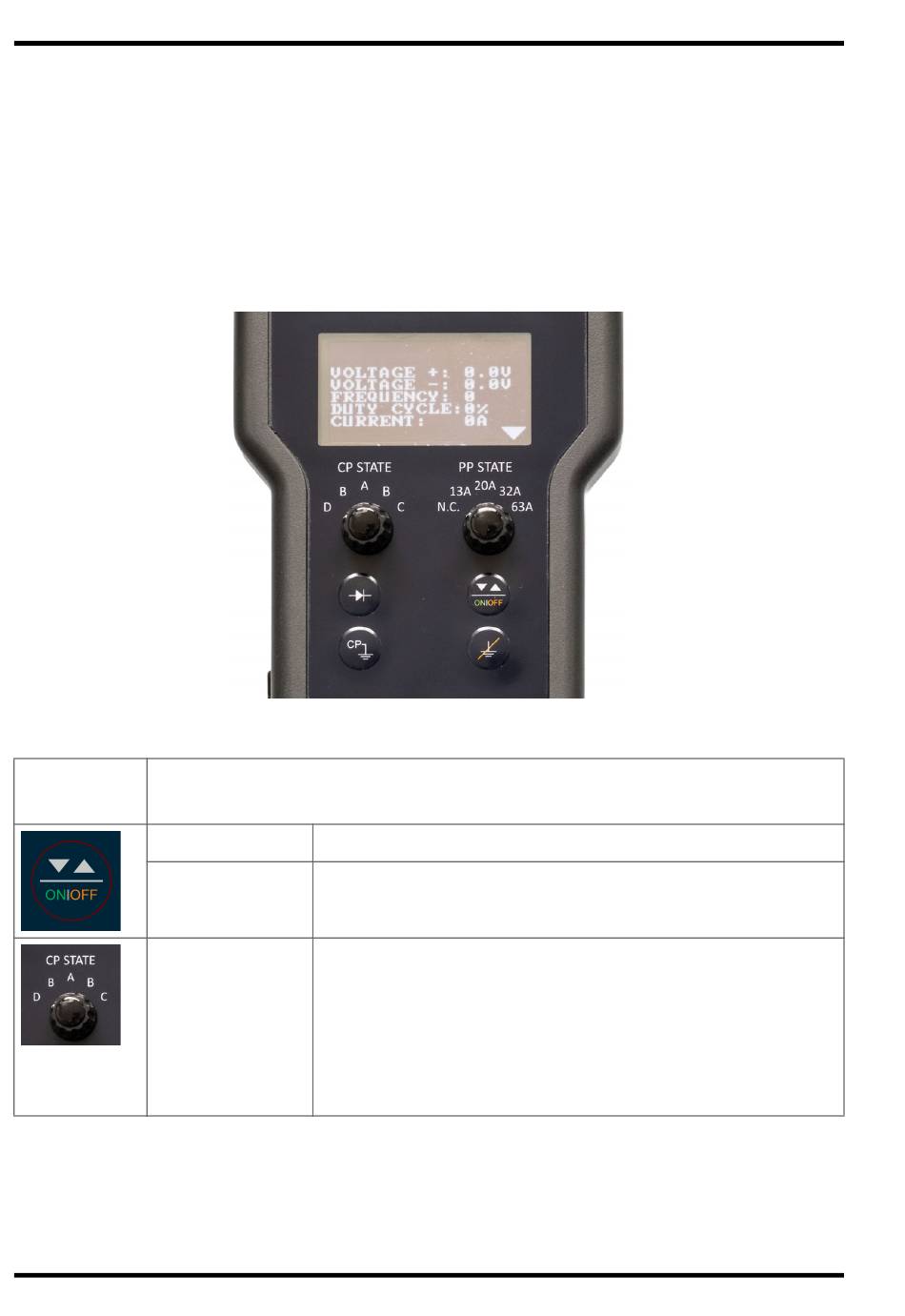

Figure 4: Membrane Keypad with Control Panel, Rotary Switches and Screen
Control
Description
Element
ON|OFF
CP STATE
13
Scroll down/up
Press: the tester is switched on.
Press and hold: the tester is switched off.
Vehicle simulation:
A No vehicle connected
B Vehicle connected, but not ready for charging
C Vehicle connected and ready for charging
D Vehicle connected and ready for charging,
venting required
Gossen Metrawatt GmbH
