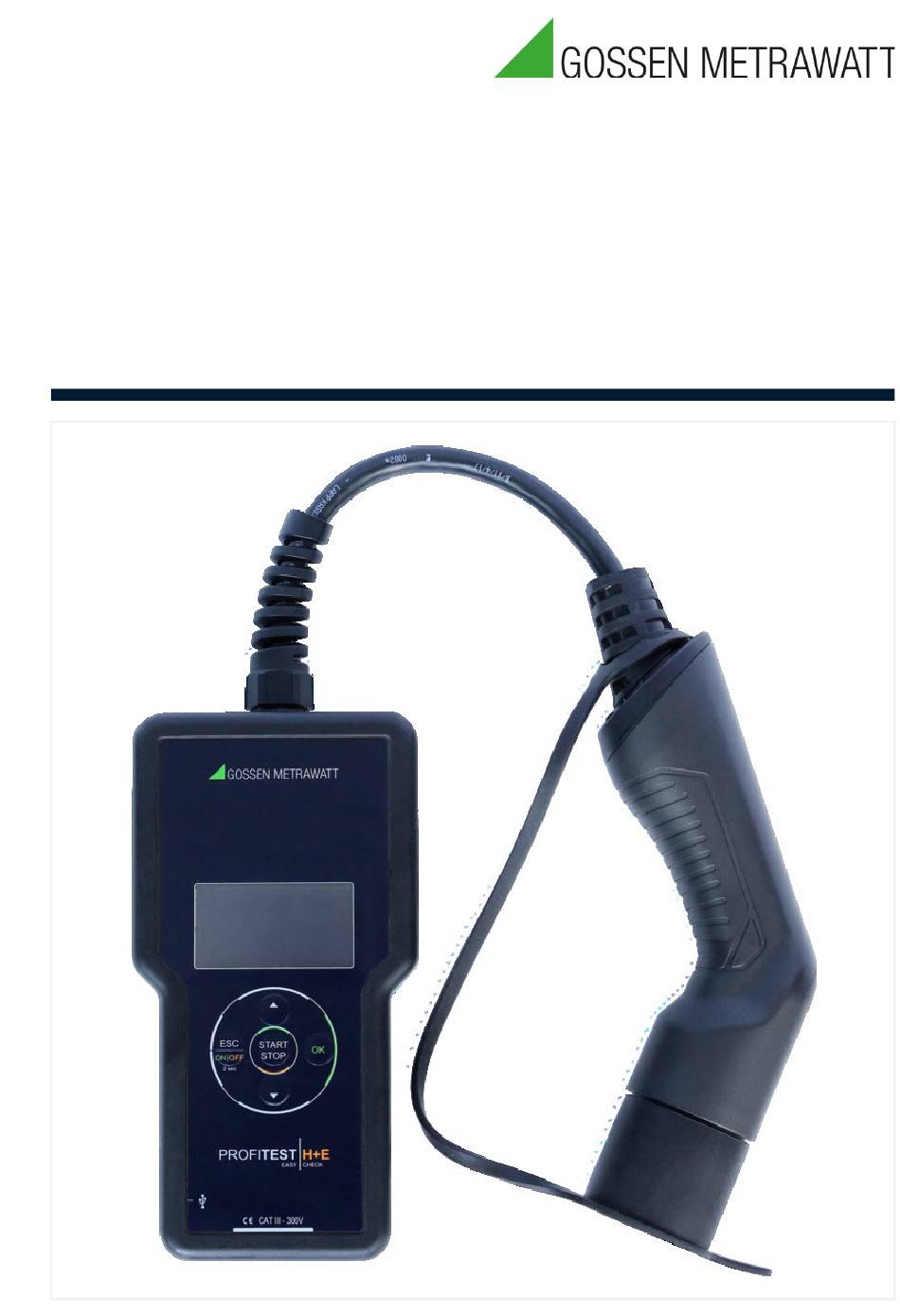

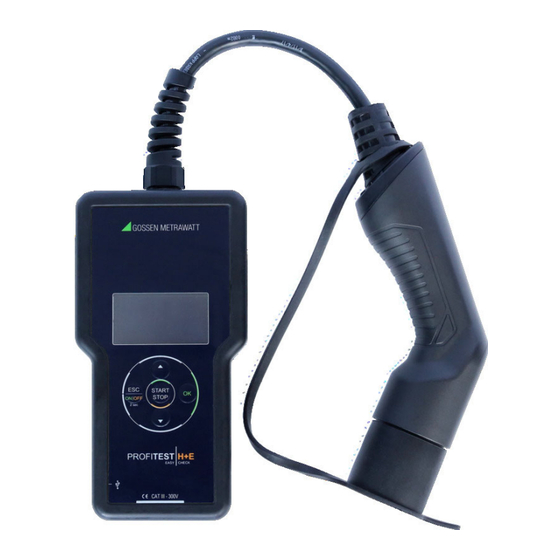

- Page 1 Operating Instructions PROFITEST H+E EASY CHECK Function Tester for AC Charging Stations per 3-447-123-03 IEC 61851-1, VDE 0122-1 3/9.23...
-
Page 2: Table Of Contents
PROFITEST H+E EASY CHECK Gossen Metrawatt GmbH Table of Contents 1 Safety Instructions ..............1 1.1 General ...................... 1 1.2 Personnel Qualifications ................1 1.3 Handling the Tester ..................1 1.4 Damaged Tester ..................2 2 Applications................3 2.1 Intended Use / Use for Intended Purpose........... 3 2.2 Use for Other than Intended Purpose ............ - Page 3 Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK 9.3 Performing the Function Test ..............16 9.4 Retrieving Stored Test Results ..............20 9.5 Test Results ..................... 21 9.6 Switching the Tester Off ................21 10Registering the Tester.............22 11Maintenance ................22 12Contact, Support and Service ..........23 13CE Declaration.................24...
-
Page 4: Safety Instructions
PROFITEST H+E EASY CHECK Gossen Metrawatt GmbH Safety Instructions General • Carefully and completely read and adhere to these operating instructions. The documents can be found at http://www.gossenmetrawatt.com. Retain these documents for future reference. • Carefully and completely read and adhere to the product documentation for the tested/inspected AC charging point. -
Page 5: Damaged Tester
Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK Damaged Tester • The tester may not be used: – If external damage is apparent – If the test plug is damaged – If it no longer functions flawlessly – After long periods of storage under unfavorable conditions (e.g. humidity, dust or extreme temperature) –... -
Page 6: Applications
Please read this important information! Intended Use / Use for Intended Purpose The PROFITEST H+E EASY CHECK is a function tester for testing AC charging points in accordance with DIN EN / IEC 61851-1 (VDE 0122-1) and permits auto- matic testing of functional performance by laypersons. In the event of a confirmed malfunction of the AC charging point, qualified personnel must become involved. -
Page 7: Documentation
Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK Documentation Identifiers The following identifiers are used in this documentation: Identifier Meaning Safety information that must be complied with Attention! Warning Important information which must be taken into consid- Note! eration and complied with Important ... -
Page 8: Background Knowledge Concerning Electromobility
PROFITEST H+E EASY CHECK Gossen Metrawatt GmbH Background Knowledge Concerning Electromobility Charging Point / Wallbox Electric vehicles are charged with alternating current (AC) at AC charging points in charging mode 3 with type 2 plug. Since electric vehicle batteries can only store direct current (DC), the alternating current is converted to direct current by the elec- tric vehicle’s on-board charger. - Page 9 Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK Figure 2: Type 2 Plug Layout Function Function Phase conductors Neutral conductor Protective conductor Proximity plug Signal line for detecting the current carrying capacity of the cable Control pilot Pilot line for safety testing and communication...
-
Page 10: The Tester
If the 20 A test is not passed (e.g. if the AC charging point does not support 20 A cables), a test for 32 A cables can be started. Scope of Delivery Please check for completeness. PROFITEST H+E EASY CHECK (M525F) Charging cable (micro USB plug) Operating instructions (this document) -
Page 11: Device Overview
Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK Device Overview 6.4.1 Front Display Type 2 Control Panel Plug Cover Cap Micro USB Socket (on the side) with Cover Figure 3: Front Panel 6.4.2 Symbols on the Tester and the Included Accessories... -
Page 12: Relevant Standards
PROFITEST H+E EASY CHECK Gossen Metrawatt GmbH Relevant Standards The tester has been manufactured in accordance with the following safety regula- tions: IEC 61010-1 Safety requirements for electrical equipment for measure- EN 61010-1 ment, control and laboratory use – general requirements... -
Page 13: Technical Data
Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK Technical Data Internal rechargeable battery (charging via USB port) Type 18650H-2600 Nominal voltage 3.7 V 2600 mAh Energy 9,62 Wh Power Supply Protective function PCB/IC protection Charging current Max. 1 C Discharge current Max. - Page 14 PROFITEST H+E EASY CHECK Gossen Metrawatt GmbH 6.6.2 Test Parameters 20 A 32 A * Cable Simulation * Only if the 20 A test fails State A State B State C Phase Vehicle Simulation tAUS Rotary field Duty cycle...
-
Page 15: User Interface
Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK User Interface The tester is equipped with a membrane keypad which serves as a central control panel. Individual function keys are located on the control panel. The screen is used to display measurement results. -
Page 16: Initial Startup
PROFITEST H+E EASY CHECK Gossen Metrawatt GmbH Available navigation options for the current step are displayed at the screen. Press the corresponding function key on the membrane keypad in order to display options or trigger the desired action. • Press ON/OFF in order to switch the tester on or off. -
Page 17: Operation
Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK Display Battery Level BATTERY CHARGE LEVEL OK The battery charge level is sufficient. LOW BATTERY – The battery charge level is low. The battery must be PLEASE RECHARGE charged. Charging the Tester’s Internal Battery ... -
Page 18: Language Selection
PROFITEST H+E EASY CHECK Gossen Metrawatt GmbH The initial screen appears. After a few seconds, the display changes and TEST STANDARD (20A) appears. Language Selection The initial screen appears. 1. Press Up or Down until the LANGUAGE SELECTION submenu appears. -
Page 19: Performing The Function Test
Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK Performing the Function Test 9.3.1 Performing the Test with a 20 A Cable The TEST STANDARD (20A) start screen is displayed. The USB socket is sealed with the cover. 1. Press START/STOP in order to confirm your selection. - Page 20 PROFITEST H+E EASY CHECK Gossen Metrawatt GmbH Rotary field Testing for correct phase sequence The pulse-to-pause ratio of the PWM signal is checked. Avail- Duty cycle able charging current is indicated in this way. When testing with 20 A has been completed, the TEST FINISHED message appears.
- Page 21 Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK 9.3.2 Performing the Test with a 32 A Cable 20 A cable testing has been executed and has failed. The TEST 32A CABLE? prompt appears at the display. The USB socket is sealed with the cover.
- Page 22 PROFITEST H+E EASY CHECK Gossen Metrawatt GmbH 5. Press OK again to view test details. Test details are displayed. 6. Press Up or Down in order to scroll forward or backward in the results pages. 7. Press ESC in order to end the test.
-
Page 23: Retrieving Stored Test Results
Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK 8. Press OK in order to save the values. The display is returned to the initial screen. The function test has been completed. Retrieving Stored Test Results The initial screen appears. -
Page 24: Test Results
PROFITEST H+E EASY CHECK Gossen Metrawatt GmbH Test Results Test Result Meaning 20A CABLE AC charging point functional 20A CABLE FAILED AC charging point functional 32A CABLE 20A CABLE FAILED AC charging point not functional 32A CABLE FAILED Switching the Tester Off 1. -
Page 25: 10Registering The Tester
Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK 10 Registering the Tester You can register your tester in your personal myGMC account. 1. Access the website at https://www.gmc-instruments.de/services/mygmc/. 2. Create a personal myGMC account. 3. Register your tester in your personal myGMC account. -
Page 26: 12Contact, Support And Service
Gossen Metrawatt GmbH 12 Contact, Support and Service Gossen Metrawatt GmbH can be reached directly and simply – we have a single number for everything! Whether you require support or training, or have an individ- ual inquiry, we can answer all of your questions here: Monday to Thursday: 8 a.m. -
Page 27: 13Ce Declaration
Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK 13 CE Declaration The tester fulfills all requirements of applicable EU directives and national regula- tions. We confirm this with the CE mark. The CE declaration is available upon request. 14 Returns and Environmentally Sound Disposal... - Page 28 Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK © Gossen Metrawatt GmbH Prepared in Germany • Subject to change, errors excepted • PDF version available on the Internet All trademarks, registered trademarks, logos, product names and company names are the property of their respective owners.
