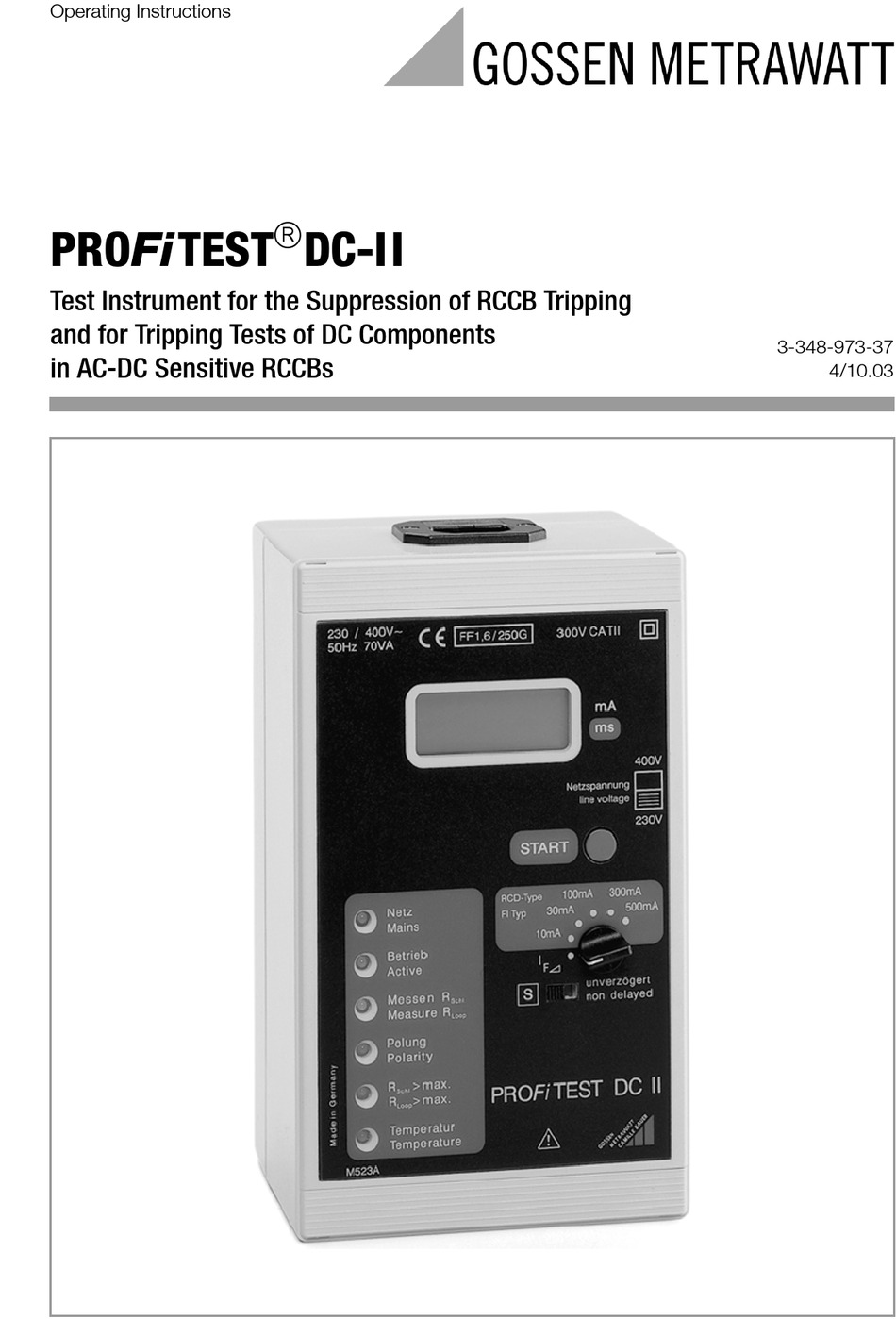

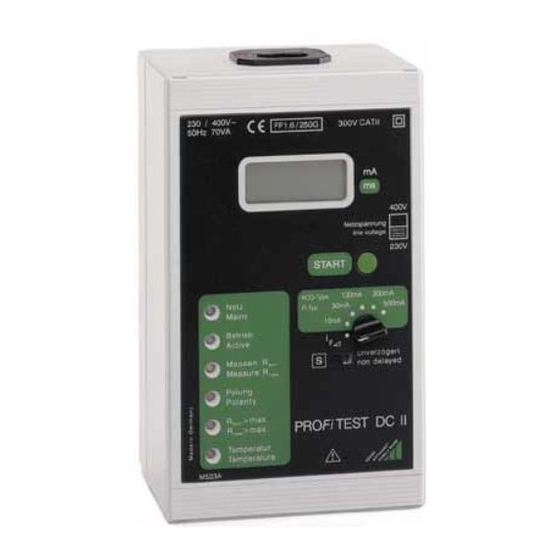

- Page 1 Operating Instructions PROFiTEST DC-II Test Instrument for the Suppression of RCCB Tripping and for Tripping Tests of DC Components 3-348-973-37 in AC-DC Sensitive RCCBs 4/10.03...
-
Page 2: Table Of Contents
Pulse-controlled RCCB Characteristic Values .........6 AC-DC sensitive RCCB Maintenance ..........7 Rising DC residual current Internal Fuse ............7 External Fuse ............7 Housing ...............7 Repair and Replacement Parts Service DKD Calibration Lab and Rental Instrument Service ....8 Product Support .........8 GOSSEN METRAWATT GMBH... -
Page 3: Description
100 mA allows for more rapid testing. A residual current curve with a lesser slope between 0 and 100 mA provides for enhanced resolution. Start Measurement of Tripping Current for AC-DC Sensitive RCCBs GOSSEN METRAWATT GMBH... -
Page 4: 2.2.3 With Constant Dc Residual Current And Measurement Of Time To Trip
400 V. Otherwise the internal Proceed as follows in order to test RCCBs in sys- device fuse will blow! tems without a neutral conductor: Set the voltage selector switch to 400 V. Use the Z523A test adapter with three test probes. GOSSEN METRAWATT GMBH... -
Page 5: Operation
Saturation current is displayed in mA for to test for proper functioning. Either activate the test button at the approximately 30 s, after which the displayed RCCB, or perform a tripping test with the current value again approaches 0. PROFiTEST 0100S-II. GOSSEN METRAWATT GMBH... -
Page 6: With Rising Dc Residual Current And Measurement Of Tripping Current For Delayed Rccbs
5 mm x 20 mm: 2000 ms. Time overflow is indicated thereaf- FF 1.6/250 ter by means of a flush left 1 at the display. GOSSEN METRAWATT GMBH... -
Page 7: Maintenance
1.5 kg (without power Housing cable) The test instrument may only be cleaned with a soft cloth or brush. If the housing should become statically charged, discharging may be performed with an antistatic agent or a damp cloth. GOSSEN METRAWATT GMBH... -
Page 8: Repair And Replacement Parts Service
AC active power, AC appar- ent power, DC power, capacitance and frequency Competent Partner GOSSEN METRAWATT GMBH is certified in accordance with DIN EN ISO 9001:2000. Our DKD calibration laboratory is accredited by the Physikalisch Technische Bundesanstalt (Ger-...
