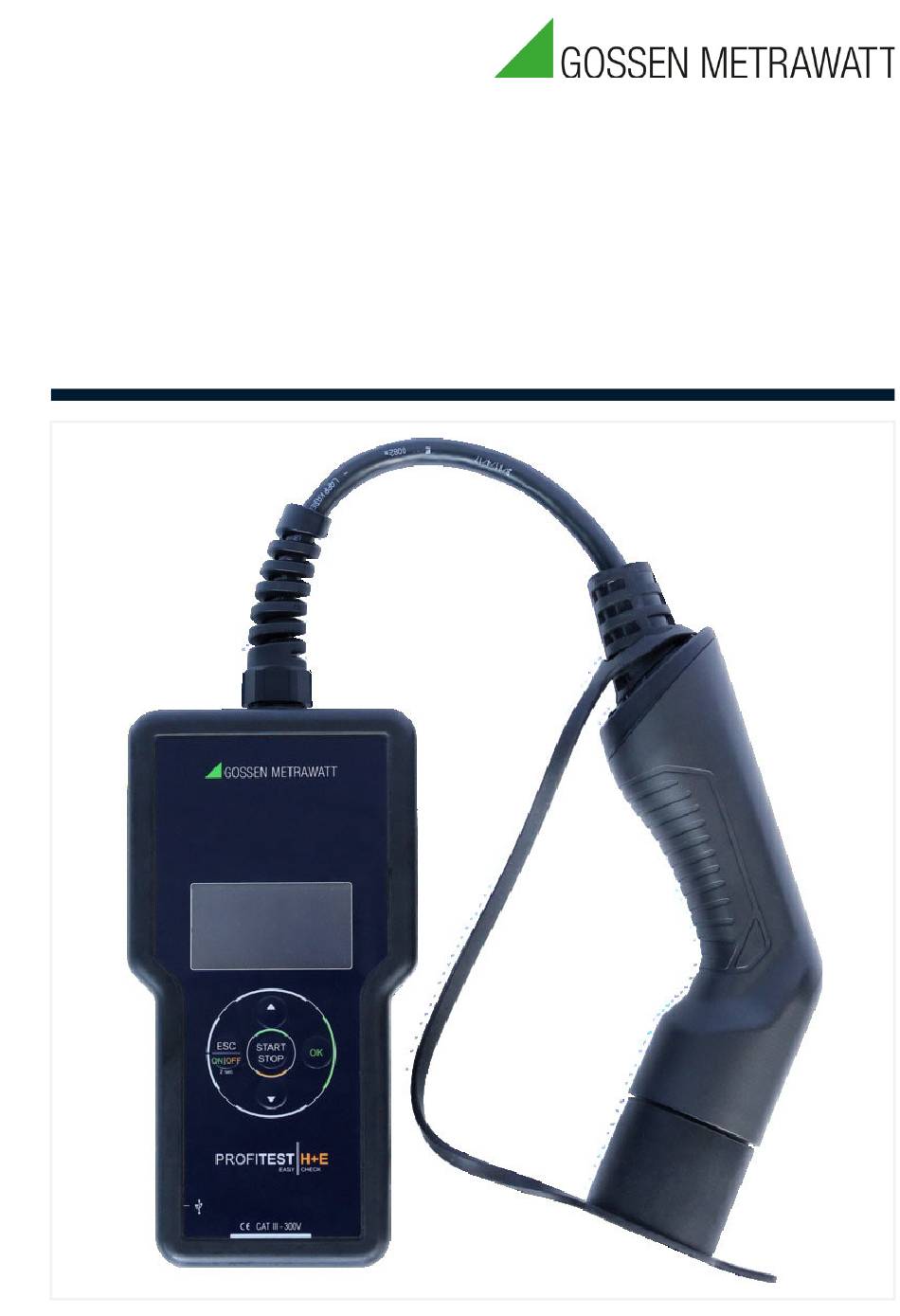

- Page 1 Operating Instructions PROFITEST H+E EASY CHECK Function Tester for AC Charging Stations 3-447-123-03 per IEC 61851-1, VDE 0122-1 1/10.22...
-
Page 2: Table Of Contents
PROFITEST H+E EASY CHECK Gossen Metrawatt GmbH Table of Contents Safety Instructions..............1 1.1 General ....................1 1.2 Personnel Qualifications ................ 1 1.3 Handling the Instrument ................ 1 1.4 Damaged Instrument ................1 Applications ................3 2.1 Intended Use / Use for Intended Purpose ..........3 2.2 Use for Other than Intended Purpose ............ - Page 3 Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK Operation ................14 9.1 Switching the Instrument On ............... 14 9.2 Language Settings ................15 9.3 Performing the Function Test .............. 16 9.4 Retrieving Saved Test Results ............. 20 9.5 Test Results..................21 9.6 Switching the Instrument Off ............... 21 10 Registering the Instrument............22...
-
Page 4: Safety Instructions
PROFITEST H+E EASY CHECK Gossen Metrawatt GmbH Safety Instructions General • Carefully and completely read and adhere to the operating instructions for the tester, as well as the operating instructions for the associated instrument. The documents can be found at http://www.gossenmetrawatt.com. Retain these documents for future reference. - Page 5 Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK • If the instrument or its accessories don’t function flawlessly, permanently remove the instrument/accessories from operation and secure them against inadvertent use. • If the instrument or accessories are damaged during use, for example if they’re dropped, permanently remove the instrument/accessories from operation and secure them against inadvertent use.
-
Page 6: Applications
Please read this important information! Intended Use / Use for Intended Purpose The PROFITEST H+E EASY CHECK is a function tester for testing AC charging points in accordance with DIN EN / IEC 61851-1 (VDE 0122-1) and permits auto- matic testing of functional performance by laypersons. In the event of a confirmed malfunction of the AC charging point, qualified personnel must become involved. -
Page 7: Documentation
Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK Documentation Identifiers The following identifiers are used in this documentation: Identifier Meaning Safety information that must be complied with Attention! Warning Important information which must be taken into consid- Note! eration and complied with Important ... -
Page 8: Background Knowledge Concerning Electromobility
PROFITEST H+E EASY CHECK Gossen Metrawatt GmbH Background Knowledge Concerning Electromobility Charging Point / Wallbox Electric vehicles are charged with alternating current (AC) at AC charging points in charging mode 3 with type 2 plug. Since electric vehicle batteries can only store direct current (DC), the alternating current is converted to direct current by the elec- tric vehicle’s on-board charger. - Page 9 Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK Figure 2: Type 2 Plug Layout Function Function Phase conductors Neutral conductor Protective conductor Proximity plug Signal line for detecting the current carrying capacity of the cable Control pilot Pilot line for safety testing and communication...
-
Page 10: The Instrument
2 plug of an AC charging point. • During the automatic program sequence, the instrument checks values for 20 and 32 A cables. Scope of Delivery Please check for completeness. PROFITEST H+E EASY CHECK (M525F) Charging cable (micro USB plug) Operating instructions... -
Page 11: Instrument Overview

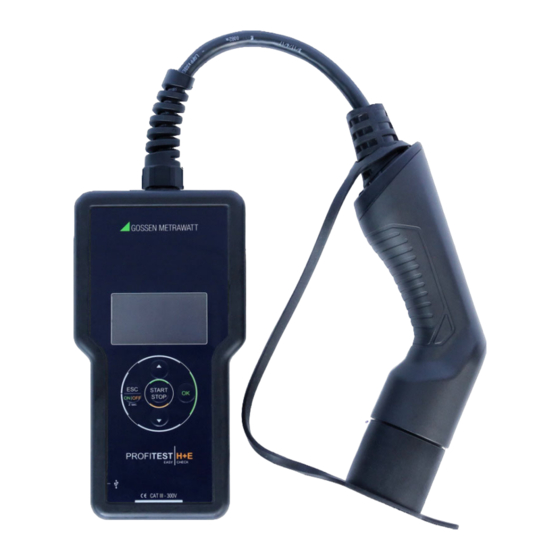

Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK Instrument Overview 6.4.1 Front Display Type 2 Control Plug Panel Cover Cap Micro USB Socket (on the side) Figure 3: Front Panel 6.4.2 Symbols on the Instrument and the Included Accessories Warning concerning a point of danger... -
Page 12: Relevant Standards
PROFITEST H+E EASY CHECK Gossen Metrawatt GmbH Relevant Standards The instrument has been manufactured and tested in accordance with the follow- ing safety regulations: IEC 61010-1 Safety requirements for electrical equipment for measure- EN 61010-1 ment, control and laboratory use – general requirements... -
Page 13: Technical Data
Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK Technical Data Internal rechargeable battery (charging via USB port) Type 18650H-2600 Nominal voltage 3.7 V 2600 mAh Energy 9,62 Wh Power Supply Protective function PCB/IC protection Charging current Max. 1 C Discharge current Max. - Page 14 PROFITEST H+E EASY CHECK Gossen Metrawatt GmbH Data Inter- Micro USB faces Internal Last measurement is saved automatically Memory 6.6.1 Test/Analysis Standards DIN EN IEC 61851-1 VDE 0122-1 Electric vehicle conductive charging system – Part 1: General requirements Measurement of voltage values in all three phases and N 6.6.2...
-
Page 15: User Interface
Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK User Interface The instrument is equipped with a membrane keypad which serves as a central control panel. Individual function keys are located on the control panel. The screen is used to display measurement results. -
Page 16: Initial Startup
PROFITEST H+E EASY CHECK Gossen Metrawatt GmbH Available navigation options for the current step are displayed at the screen. Press the corresponding function key on the membrane keypad in order to display options or trigger the desired action. • Press ON/OFF in order to switch the instrument on or off. -
Page 17: Operation
Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK Display Battery Level BATTERY CHARGE LEVEL OK The battery charge level is sufficient. LOW BATTERY – PLEASE The battery charge level is low. The battery must be RECHARGE charged. 8.2.1 Charging the Instrument’s Internal Battery 1. -
Page 18: Language Settings
PROFITEST H+E EASY CHECK Gossen Metrawatt GmbH After a few seconds, the display changes and TEST STANDARD (20A) appears. Language Settings The initial screen appears. 1. Press Up or Down until the LANGUAGE SETTINGS submenu appears. 2. Press START/STOP in order to open the LANGUAGE SETTINGS submenu. -
Page 19: Performing The Function Test
Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK Performing the Function Test 9.3.1 Performing the Test with a 20 A Cable The FUNCTION TEST (20A) start screen is displayed. 1. Press START/STOP in order to confirm your selection. The CONNECT PLUG & AUTHORIZE prompt appears at the display. - Page 20 PROFITEST H+E EASY CHECK Gossen Metrawatt GmbH The pulse-to-pause ratio of the PWM signal is checked. Avail- Duty cycle able charging current is indicated in this way. When testing with 20 A has been completed, the TEST FINISHED message appears.
- Page 21 Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK 9.3.2 Performing the Test with a 32 A Cable Testing with the 20 A cable has been completed. The TEST 32A CABLE? prompt appears at the display 1. Connect the instrument’s plug to the AC charging point under test.
- Page 22 PROFITEST H+E EASY CHECK Gossen Metrawatt GmbH 5. Press OK again to view test details. Test details are displayed. 6. Press Up or Down in order to scroll forward or backward in the results pages. 7. Press ESC in order to end the test.
-
Page 23: Retrieving Saved Test Results
Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK 8. Press OK in order to save the values. The display is returned to the initial screen. The function test has been completed. Retrieving Saved Test Results The initial screen appears. -
Page 24: Test Results
PROFITEST H+E EASY CHECK Gossen Metrawatt GmbH Test Results Test Results Meaning 20A CABLE FAILED AC charging point functional 32A CABLE 20A CABLE AC charging point functional 32A CABLE FAILED 20A CABLE FAILED AC charging point not functional 32A CABLE... -
Page 25: Registering The Instrument
Clean the instrument by gently wiping it with a slightly damp, lint-free cloth. 12 Contact, Support and Service Gossen Metrawatt GmbH can be reached directly and simply – we have a single number for everything! Whether you require support or training, or have an individ-... -
Page 26: Ce Declaration
PROFITEST H+E EASY CHECK Gossen Metrawatt GmbH Please contact GMC-I Service GmbH for repairs, replacement parts and calibra- tion +49-911-817718-0 Beuthener Str. 41 90471 Nürnberg service@gossenmetrawatt.com Germany www.gmci-service.com 13 CE Declaration The instrument fulfills all requirements of applicable EU directives and national regu- lations. -
Page 27: Returns And Environmentally Sound Disposal
Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK 14 Returns and Environmentally Sound Disposal This instrument is subject to directive 2012/19/EC on Waste Electrical and Elec- tronic Equipment (WEEE) and its German national equivalent implemented as the Waste Electrical and Electronic Equipment Act (ElektroG) on the marketing, return and environmentally sound disposal of electrical and electronic equipment. - Page 28 Gossen Metrawatt GmbH PROFITEST H+E EASY CHECK © Gossen Metrawatt GmbH Prepared in Germany • Subject to change, errors excepted • PDF version available on the Internet All trademarks, registered trademarks, logos, product names and company names are the property of their respective owners.
