Gossen Metrawatt GmbH

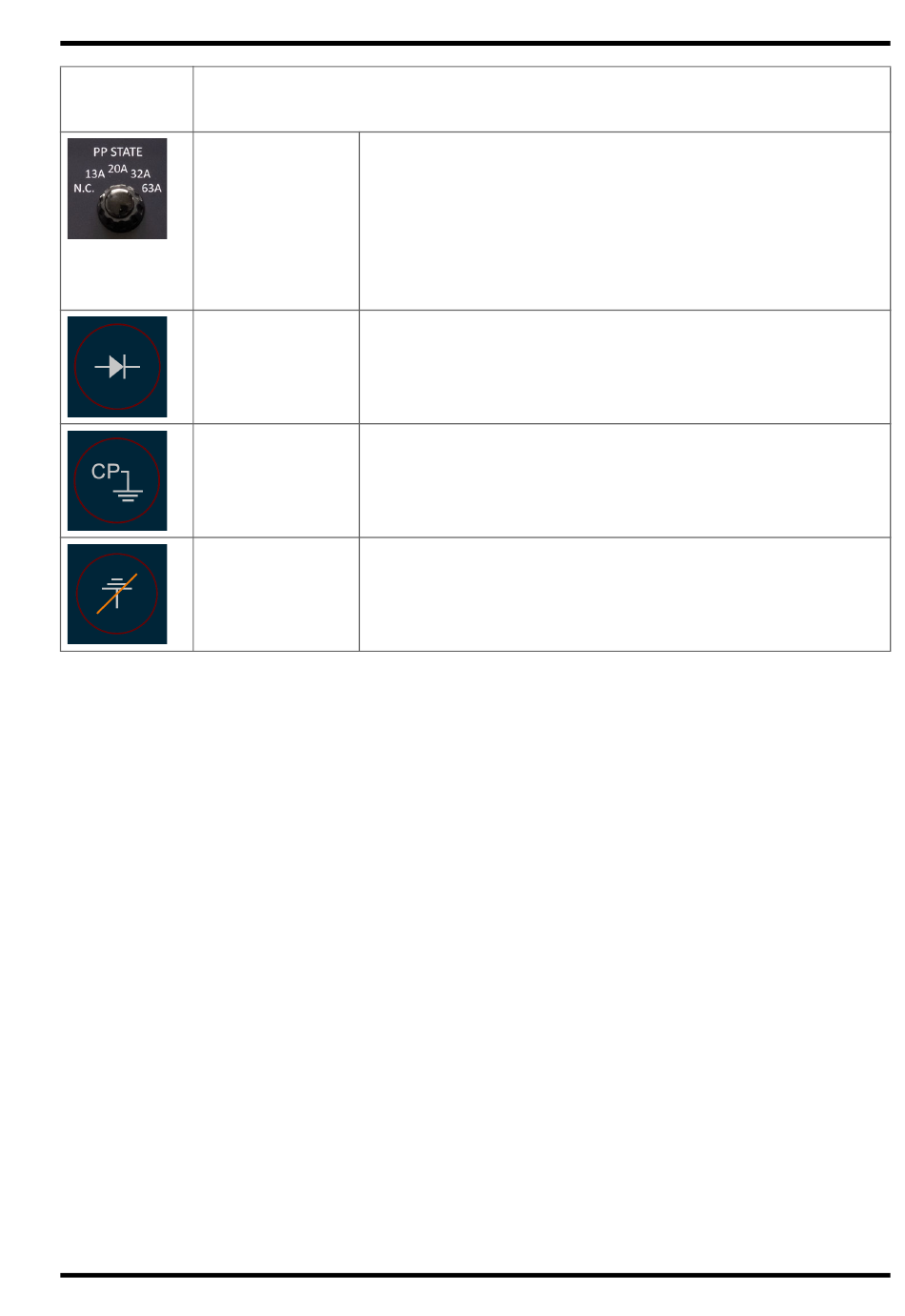

Control
Description
Element
PP STATE
Diode test
Short-circuit
CP-PE
PE fault
(ground fault)
Momentary measurement results appear at the display. Activate the respective
control element in order to trigger the desired action.
• Press and hold  ON|OFF in order to switch the tester on or off.
• Briefly press  ON|OFF in order to scroll in the corresponding direction.
• Set the CP STATE rotary switch to a parameter in order to simulate the respective
vehicle state.
• Set the PP STATE rotary switch to a parameter in order to simulate the respective
vehicle state.
• Press one of the fault keys in order to simulate the respective fault.
8

Initial Startup

8.1

Unpacking the Tester

1. Carefully remove the tester and its accessories from the packaging.
2. Check for completeness and possible damage.
3. If any damage, hidden defects or missing items are detected, contact the man-
ufacturer or you dealer without delay.
4. Retain the packaging materials for future use.
Cable simulation:
N.C. no cable connected (∞ Ω)
13 A 13 A cable (1.5 kΩ)
20 A 20 A cable (680 Ω)
32 A 32 A cable (220 Ω)
63 A 63 A cable (100 Ω)
Simulation of a short-circuited diode
Simulation of a CP fault in accordance with
DIN EN 62196-1 / VDE 0623-5-1 (state E)
(charging aborted)
Simulation of a PE fault (ground fault)
(charging aborted)
PROFITEST H+E EXPERT CHECK
