Removing the pet mask

Remove the pet mask if you do not require pet immunity.
1. Open the device cover. See
2. To extract the internal assembly, use a screwdriver to open the four clips. See
3. Gently remove the pet mask. See the following figure.

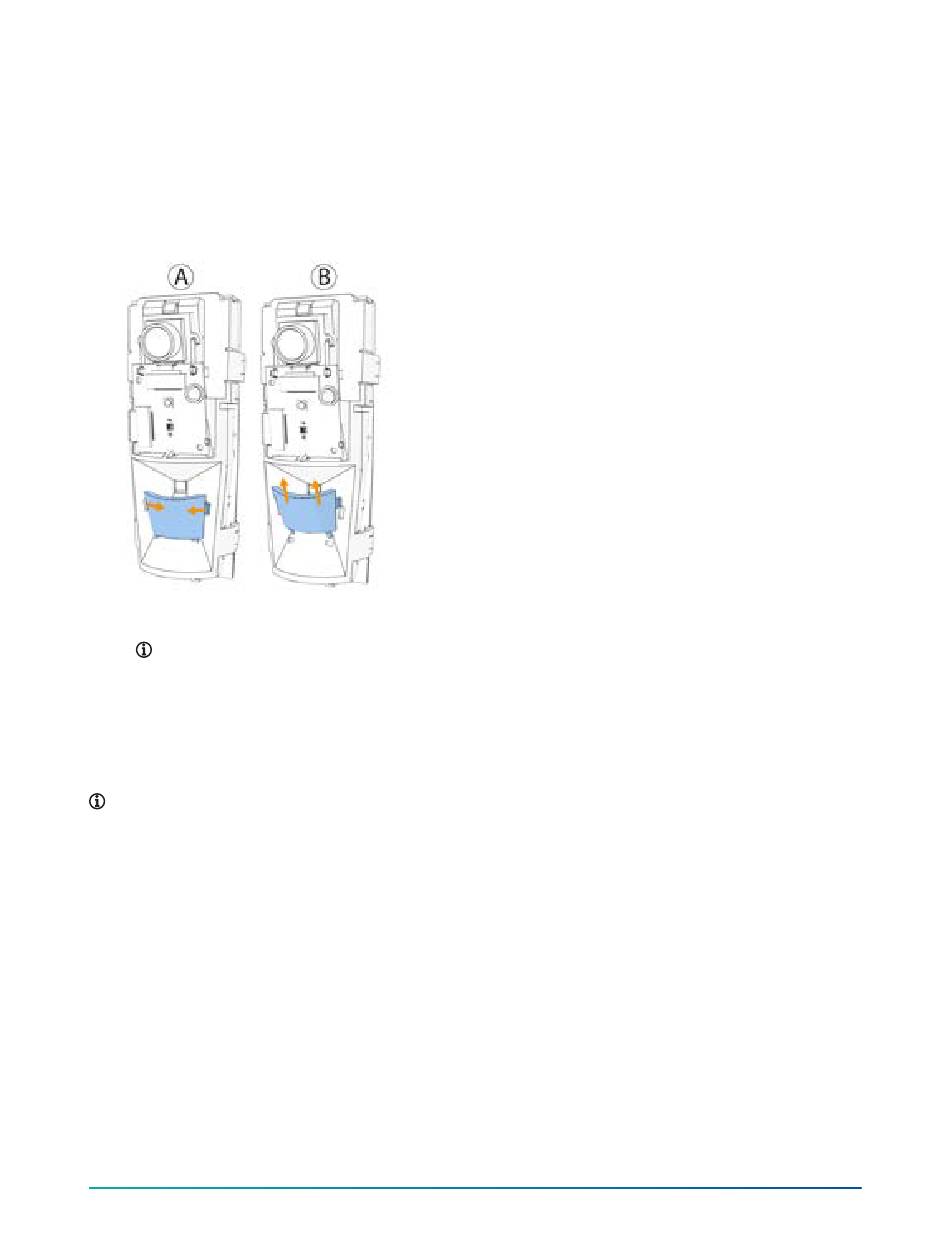

Figure 8: Removing the pet mask
4. Reassemble the internal assembly.
Note: To maintain the position of the microphone seal when removing the pet mask
make sure that the microphone seal is in place, and replace it if necessary. See
5. Close the device cover. See
Mounting the device using screws
Note: Make sure to fasten the break-away segment to the frame. If the device is forcibly
removed from the wall, this segment will break away from the base, causing the tamper switch
to open.
1. To open the device cover, use a screwdriver to loosen the cover screw located on the
underside of the device. See
2. Identify the holes that match the mounting option, then drill out those holes. See the
following figure for mounting options.
Figure 3.
Figure 7.
Figure 3.
