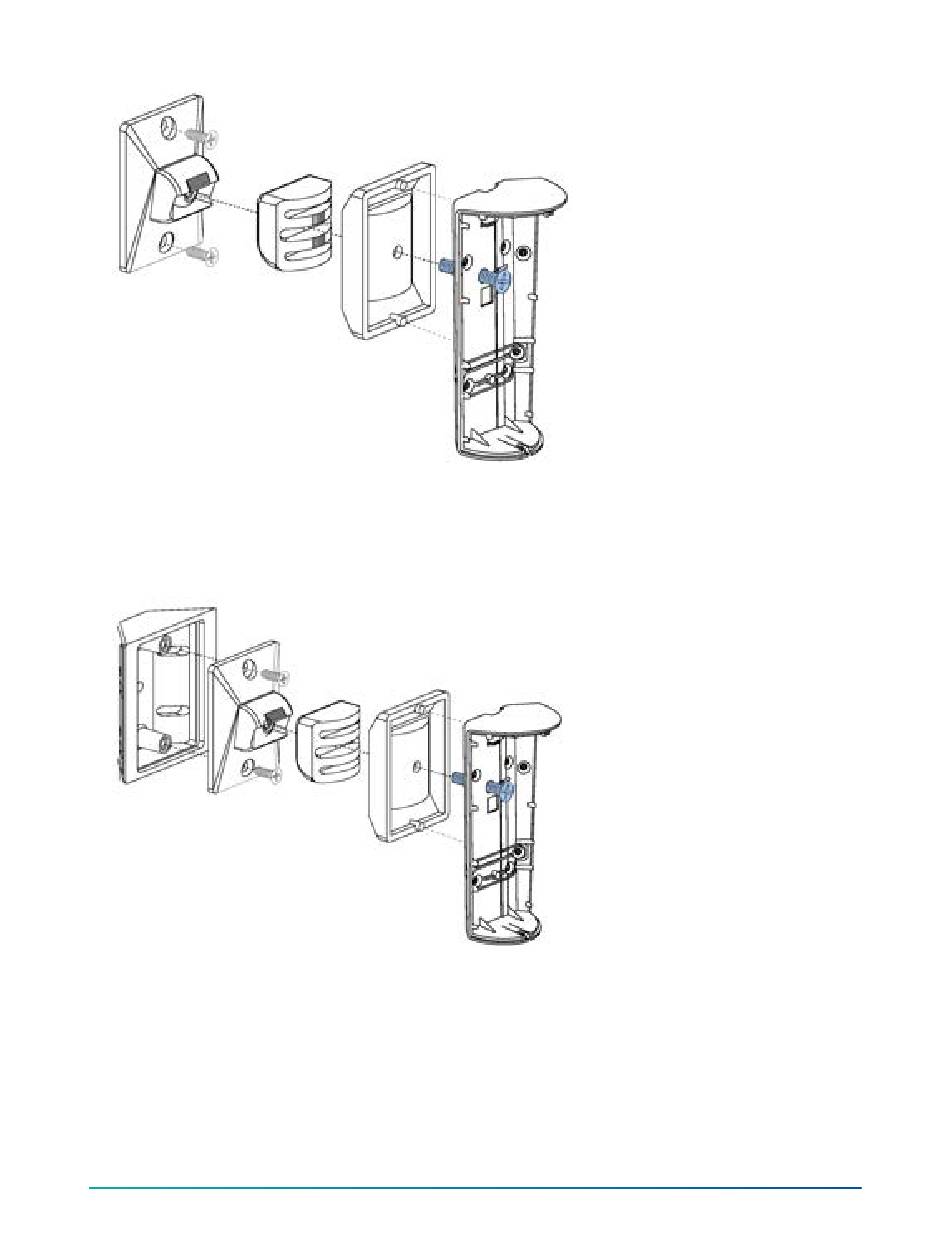

Figure 10: Wall-mount bracket (BR-1) installation
2.
To mount the device in the corner with the option to change the angle of the device, use the
BR-2 bracket. See the following figure for the assembly of the BR-2 bracket on the wall.
Figure 11: Corner-mount bracket (BR-2) installation
3.
To mount the device on the ceiling with the option to change the angle of the device, use the
BR-3 bracket. See the following figure for the assembly of the BR-3 bracket on the ceiling.
NEXT CAM PG+ Motion Detector with Integrated Camera Installation Guide
D-308840 NEXT CAM PG+ Rev. 0
9
