1. INTRODUCTION
The LC-224 detector represents the best choice for residential and industrial installations in the security sector. It only use digital PIRs which bypass the
conversion that usually must be done with traditional detectors where an analog PIR is amplified and converted to digital. The FULLY digital technology
helps the detector more accurately detect intrusions and not be affected of alterations in white light, ultraviolet light, temperature and air movement
caused by heating/cooling systems. It is also fully immune to radiated and conducted electromagnetic interference. The LC-224 detector is equipped with
lenses designed by Johnson Controls and are manufactured by Fresnel Technologies, Inc. LODIFF
materials make it a product of the highest quality and efficiency. The LC-224 detector is pet immune (feature not evaluated by UL/ULC) and have a 15 m
range and a 100-degree detection range. The LC-224 is equipped with latest generation microwave modules, with very low background noise.
White Light Protection
The detector digitally filters white light
components.
High RFI Protection
The detector has very high RFI immunity due to
the complete lack of traditional amplifiers.
POLY IR 4 Plastic Material
®
for Detection Stability
POLY IR lens material. This materials offers a better
®
combination of transmittance, environmental stability and
color than any other polymer on the market. Materials are
available for the 8-14 micron infrared region. LODIFF
and POLY IR
®
Technologies, Inc.

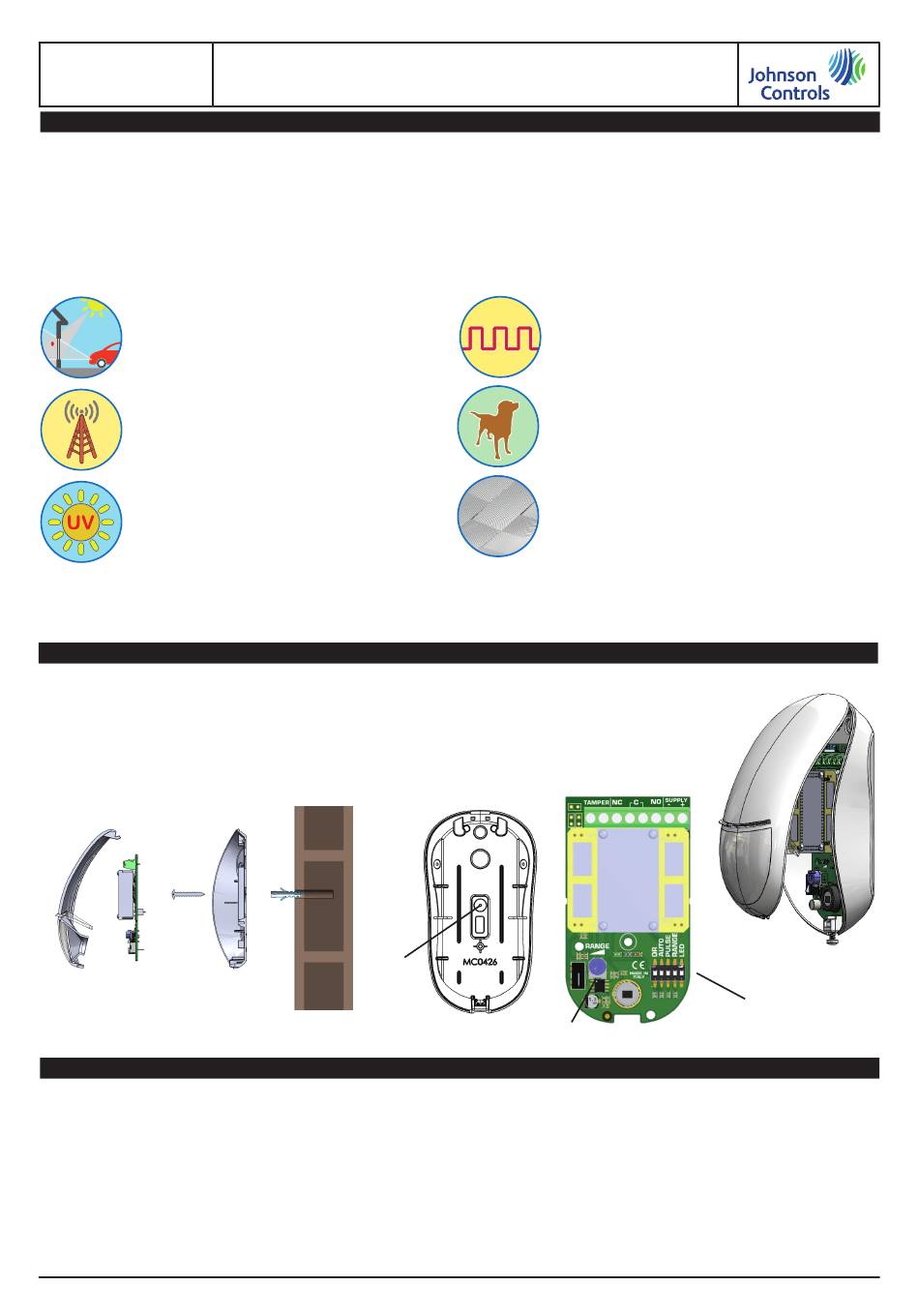

2. INSTALLATION
- Using a thin screwdriver, loosen the bottom screw and open the cover (see Fig 1)
- Remove the board from the plastic base by removing the screw on the board (see Fig 2)
- Open the knockouts needed for mounting onto the wall or use the optional swivel (not UL/ULC evaluated)
- Open the knockouts for removal protection and fix the anchor to the wall (see Fig 2)
- Recommended height is from 1.8 m to 2.5 m
- Run the connection cables through the bottom of the container and out the top
- Connect the wires on the board as described below
- Fig 2 -
NOTE: Do not partially or completely cover the detector's field of vision
3. MEANING OF THE LEDS
During normal operation, the LED signals are:
- GREEN LED = PIR Alarm
- YELLOW LED = MW Alarm
- RED LED = General Alarm (both PIR and MW)
ISTISJCELC224 0.0

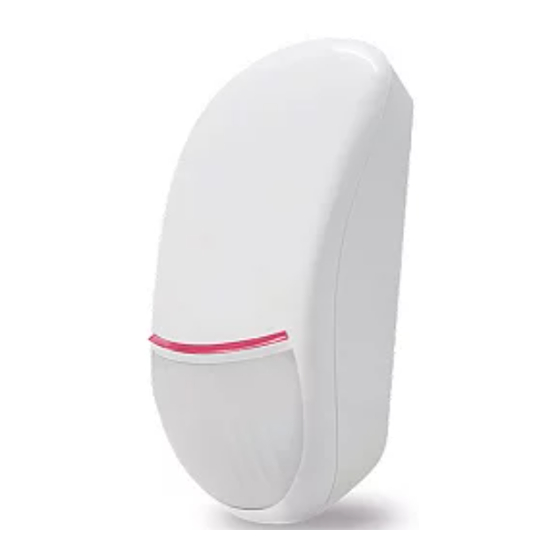

DUAL TECHNOLOGY DETECTOR
are registered trademarks of Fresnel
Anchor
LC-224
optic creation technology combined with POLY IR
®
Fully Digital PIR
The detector has no analog components, and the fully
digital PIR interfaces directly with the microprocessor.
Pet Immunity
Thanks to a new lens design and the digital analysis
system, all of our detectors are immune to pets weighing
up to 15 kg.
LODIFF
This lens series is made by tiling LODIFF
These lenses offer significantly improved performance
over the typical constant-bandwidth Fresnel lens.
LODIFF
Fresnel Technologies, Inc.
®
Trimmer
LC-224
1
Fresnel Technology Lenses
®
® and POLY IR ® are registered trademarks of
- Fig 1 -
DIP Switch
Installation Instructions
®
lens pieces.
®
