Johnson Controls LC-200S Installation Instructions

2012/19/EU
1. INTRODUCTION

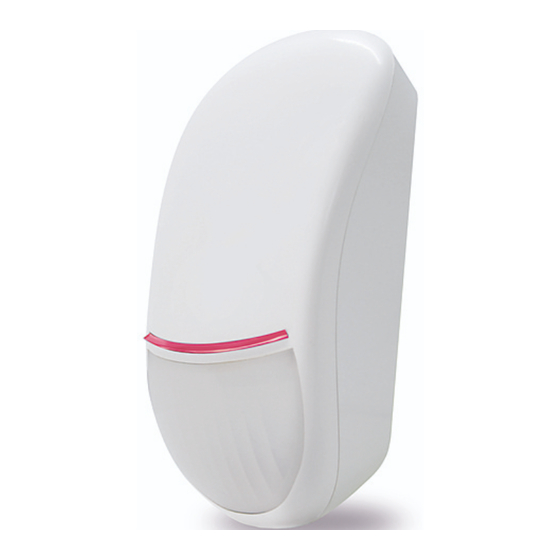

LC-200S is the detector for all security installations needing an excellent product that is easy to install, suitable for any residential installation and does not
require special attention for programming. No special care is required for the detector. It can simply be installed and turned on.
LC-200S detectors are equipped with lenses designed by Johnson Controls and are manufactured by Fresnel Technologies, Inc.
LODIFF optic creation technology combined with POLY IR
®
LC-200S detector is pet immune (feature not evaluated by UL/ULC) and has a 12 m (40 ft) range at a 100-degree angle.
White Light Protection
The detector digitally filters white light
components.
High RFI Protection
The detector has very high RFI immunity due to
the complete lack of traditional amplifiers.
Ultraviolet Stabilization
POLY IR
The lens is printed with POLY IR
This materials offers a better combination of
transmittance, environmental stability and color
than any other polymer on the market. Materials
are available for the 8-14 micron infrared region.
LODIFF
Fresnel Technologies, Inc.
2. INSTALLATION
- Using a thin screwdriver, loosen the bottom screw and open the cover (see Fig 1)
- Remove the board from the base by levering the ABS cover (see Fig 2)
- Drill the stopper on the base of the cover at the desired fastening location (or use the optional swivel that is not IMQ certified)
- Recommended height is 2.1 m
- Slide the cable in through the back slot and out the top hole
- Wire the terminals following the connections shown in "Connection and Setup"
- Fig 2 -
NOTE: Do not partially or completely cover the detector's field of vision
NOTE: the pet function is not IMQ certified
ISTISJCELC200S 0.0
IR DETECTOR
materials make it a product of the highest quality and efficiency.
®
4 Lens Material
®
® material.
and POLY IR are registered trademarks of
® ®
LC-200S
Digital Signal Analysis
This detector is equipped with a traditional PIR with
a processor that converts the analysis into digital
format for optimum performance in all situations.
Pet Immunity
Thanks to a new lens design and the digital analysis
system, all of our detectors are immune to pets
weighing up to 15 kg.
LODIFF
This lens series is made by tiling LODIFF
These lenses offer significantly improved performance
over the typical constant-bandwidth Fresnel lens.
LODIFF
Fresnel Technologies, Inc.
T-A-EOL
jumpers
LC-200S
1
Fresnel Lens Technology
®
® and POLY IR ® are registered trademarks of
- Fig 1 -
PULSE
jumper
Installation Instructions
lens pieces.
®
LED
jumper
