Installation guidelines
The reference to NEXT CAM PG+ throughout this manual includes the model NEXT CAM P9M0, NEXT
CAM P8M0, and NEXT CAM P8M1.
CAUTION: Only qualified personnel may install this equipment. Place this device in non-
hazardous indoor locations only.
Important: Check the device and the entire alarm system weekly to ensure optimal
performance.

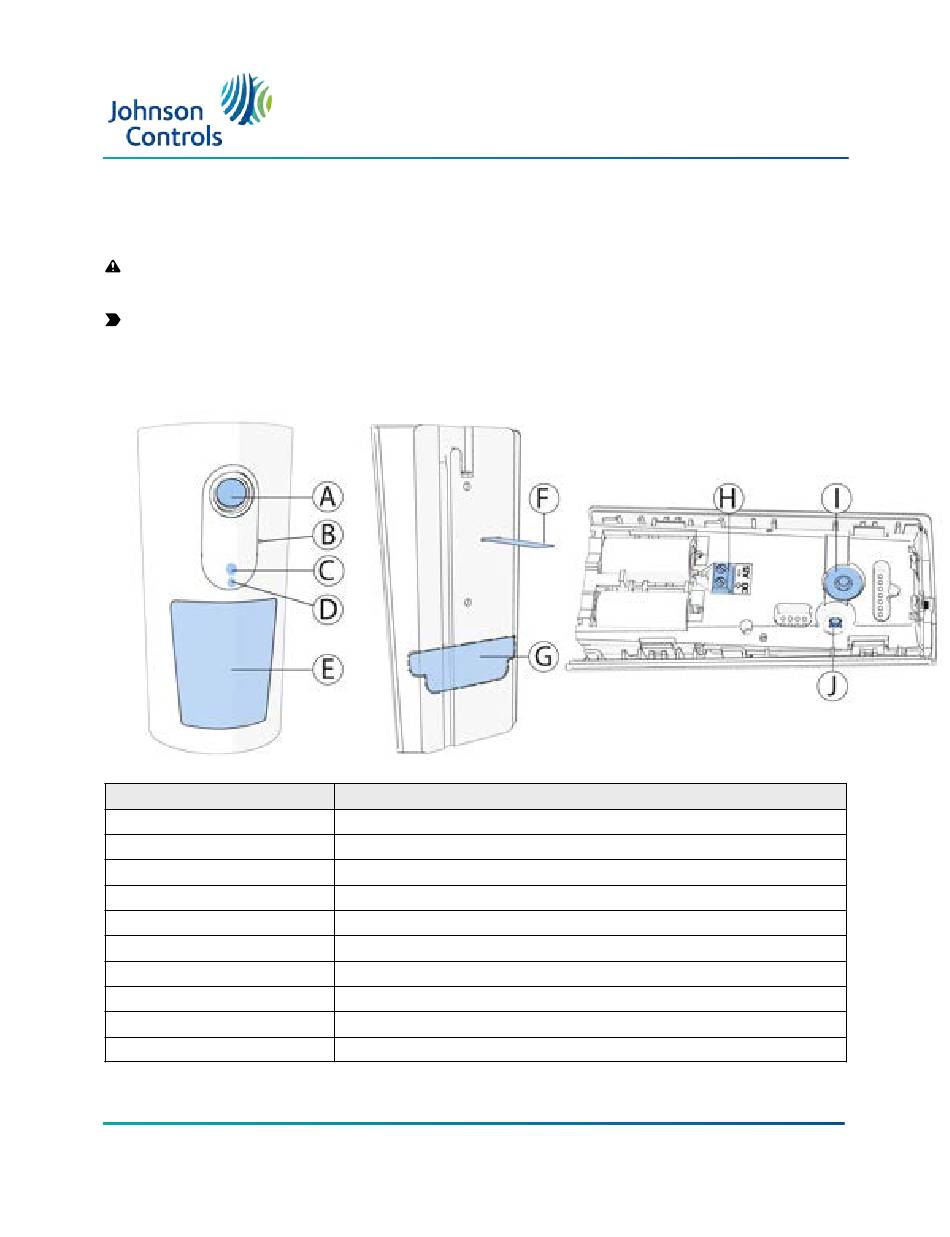

Figure 1: NEXT CAM PG+
Callout
A
B
C
D
E
F
G
H
I
J
For more information refer to section
NEXT CAM PG+ Motion Detector with
Integrated Camera Installation Guide
Description
Camera lens
Microphone
LED
Light sensor
PIR lens
Battery pull-tab
Break-away segment
Terminal block
Tamper switch
Enroll button
About NEXT CAM PG+
D-308840 NEXT CAM PG+ Rev. 0
.
*D-308840*
D-308840
Advertisement
Table of Contents
Related Manuals for Johnson Controls NEXT CAM PG+
Summary of Contents for Johnson Controls NEXT CAM PG+
- Page 1 NEXT CAM PG+ Motion Detector with Integrated Camera Installation Guide Installation guidelines The reference to NEXT CAM PG+ throughout this manual includes the model NEXT CAM P9M0, NEXT CAM P8M0, and NEXT CAM P8M1. CAUTION: Only qualified personnel may install this equipment. Place this device in non- hazardous indoor locations only.
- Page 2 Figure 2: Optimizing detection and avoiding false alarms 1. Do not install near high-voltage electrical lines. 2. Keep away from heat sources. 3. Do not install outdoors. 4. Avoid direct sunlight. 5. Do not expose to air drafts. 6. Do not install behind partitions. 7.
-
Page 3: Configuring The Device Parameters
Configuring the device parameters Enter the DEVICE SETTINGS menu and select the required configuration as described in the following table. Option Action General configuration options Alarm LED Define whether the alarm LED indication will be activated. Optional settings: LED ON (default) and LED OFF. Event counter Define whether an alarm will be activated upon continued motion (low sensitivity) or upon a single alarm event (high sensitivity).. - Page 4 Installing the pet mask Install the pet mask if you require pet immunity. The optimal installation height for pet immunity is 2.1 m (7 ft.), measured from the center of the device. Pet immunity is for pets weighing up to 38 kg (85 lb).
- Page 5 Figure 4: Extracting the internal assembly Insert the tabs at the base of the pet mask into the bottom holes and align the tabs on the sides with the holes on both sides. See the following figure. Figure 5: Inserting the pet mask Press down gently to install the pet mask.
- Page 6 Figure 6: Microphone seal To close the device cover, clip the cover onto the device base and tighten the cover screw. See the following figure. Figure 7: Closing the device cover NEXT CAM PG+ Motion Detector with Integrated Camera Installation Guide D-308840 NEXT CAM PG+ Rev.
-
Page 7: Removing The Pet Mask
Removing the pet mask Remove the pet mask if you do not require pet immunity. Open the device cover. See Figure To extract the internal assembly, use a screwdriver to open the four clips. See Figure Gently remove the pet mask. See the following figure. Figure 8: Removing the pet mask Reassemble the internal assembly. - Page 8 Figure 9: Mounting options Callout Description Flat wall installation. See the note below the table. Right corner installation. Left corner installation. BR-1/2/3 bracket installation. Use the screw from the BR-1/2/3 installation kit. Note: For flat wall installation, use two screws diagonally to include the tamper option, or two screws horizontally to exclude the tamper option.
- Page 9 Figure 10: Wall-mount bracket (BR-1) installation To mount the device in the corner with the option to change the angle of the device, use the BR-2 bracket. See the following figure for the assembly of the BR-2 bracket on the wall. Figure 11: Corner-mount bracket (BR-2) installation To mount the device on the ceiling with the option to change the angle of the device, use the BR-3 bracket.
- Page 10 Figure 12: Ceiling-mount bracket (BR-3) installation NEXT CAM PG+ Motion Detector with Integrated Camera Installation Guide D-308840 NEXT CAM PG+ Rev. 0...
-
Page 11: Replacing The Battery
Replacing the battery CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the manufacturer's instructions and according to local rules and regulations. Note: It is recommended to wait about 1 minute after battery removal before inserting the new battery. - Page 12 Optional: wiring the power cable Important: Use only safety approved AC/DC power supply or another DC source which is certified to IEC/EN/UL 62368-1 with rated voltage of 12 VDC and rated current of 1 A. Mark the cable 110 mm from the end. See the following figure. Figure 14: Marking the cable Remove the device cover.
-
Page 13: Local Diagnostics Test
Local diagnostics test After power-up or closing the cover, the device automatically enters Test Mode for 15 minutes. To manually enter the devices into Test Mode refer to the Control Panel Installer Guide. Before you start the test, remove the device cover from the base. See Figure Close the cover to return the tamper switch to its normal position. - Page 14 Figure 16: Coverage Pattern & Walk-test Fresnel and cylinder type lens with optical attenuation (pet mask) in the lower pattern part of the lens. Number of beams / curtains: 18 Fresnel far, 10 Cylinder mid, 6 Cylinder close. Important: Instruct the user to walk test at least once a week to verify proper function of the device.
-
Page 15: Specifications
Specifications Frequency band 868 to 869 MHz, 912 to 919 MHz Maximum Tx Power +14 dBm @ 868 MHz Modulation GFSK Communication Protocol PowerG Battery Type 6V Lithium battery Panasonic, Duracell, and GP only (two CR-123A 3V batteries) Battery Life 5 years with typical use at room temperature 25°C (77°F) Low Battery Threshold 4.5 V at room temperature 25°C (77°F) -
Page 16: Compliance With Standards
Compliance with standards NEXT CAM PG+ complies with the following standards: NEXT CAM P9M0 FCC (912 to 919 MHz): 47CFR part 15.247 NEXT CAM P8M0 Europe (868 Mhz): EN 300220, EN 301489, EN 50130-4, EN NEXT CAM P8M1 50130-5, EN 61000-6-3, EN 62368-1, EN 50131-1, EN 50131-2-2 Grade 2, Class II and EN 50131-6 Type C or Type B UK (868 MHz): is suitable for use in systems installed to conform to PD6662 at Grade 2 and environmental class II, DD243 and... - Page 17 Read the safety information before you install the equipment. The detector shall be installed and used within an environment that provides the pollution degree max 2 and over voltages category II in non-hazardous locations, indoor only. The equipment is designed to be installed by SERVICE PERSONS only; (SERVICE PERSON is defined as a person having the appropriate technical training and experience necessary to be aware of hazards to which that person may be exposed in performing a task and of measures to minimize the risks to that person or other persons).
-
Page 18: Warranty
• Auto-setup (brightness, contrast). • Camera tuning by simple walk-test. • Day and night CMOS camera, with IR illumination. • Instant capture guarantees capture of fast moving intruder. • Camera operation modes: Post alarm – pictures are taken after detection by detector. On demand –... - Page 19 Items Not Covered by Warranty: In addition to the items which void the Warranty, the following items shall not be covered by Warranty: (i) freight cost to the repair centre; (ii) customs fees, taxes, or VAT that may be due; (iii) Products which are not identified with the Seller's product label and lot number or serial number;...
- Page 20 Email: info@visonic.com Website: www.visonic.com D-308440 Rev. 0 (05/23) ©2023 Johnson Controls. All rights reserved. JOHNSON CONTROLS and Visonic are trademarks and/or registered trademarks. Unauthorized use is strictly prohibited. D-308840 NEXT CAM PG+ Rev. 0...
