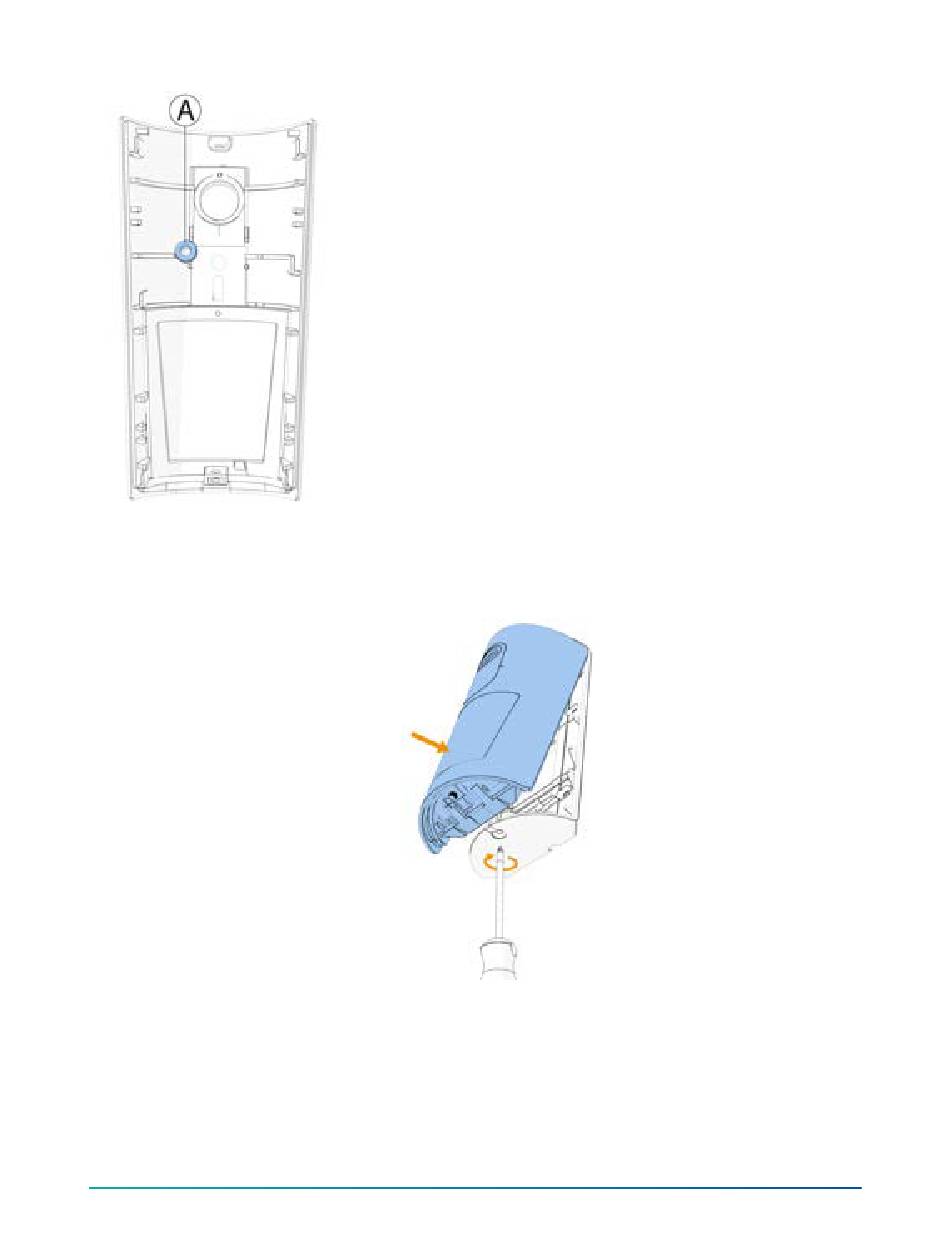

Figure 6: Microphone seal
6.
To close the device cover, clip the cover onto the device base and tighten the cover screw. See
the following figure.
Figure 7: Closing the device cover
6
NEXT CAM PG+ Motion Detector with Integrated Camera Installation Guide
D-308840 NEXT CAM PG+ Rev. 0
