Installation guidelines
The reference to PGP922 throughout this manual includes the model PGP9922.
CAUTION: Only qualified personnel may install this equipment. Place this device in non-
hazardous indoor locations only.
Important: Check the device and the entire alarm system weekly to ensure optimal
performance.
Note:
To comply with FCC and ISED Canada RF exposure compliance requirements, locate the device
at a distance of at least 20 cm from all persons during normal operation.
Do not co-locate the antennas used for this product, or operate them in conjunction with any
other antenna or transmitter.
Install the PGP9922 in accordance with the Standard for Installation and Classification of
Residential Burglar Alarm Systems, UL 1641 and ULC-S302.

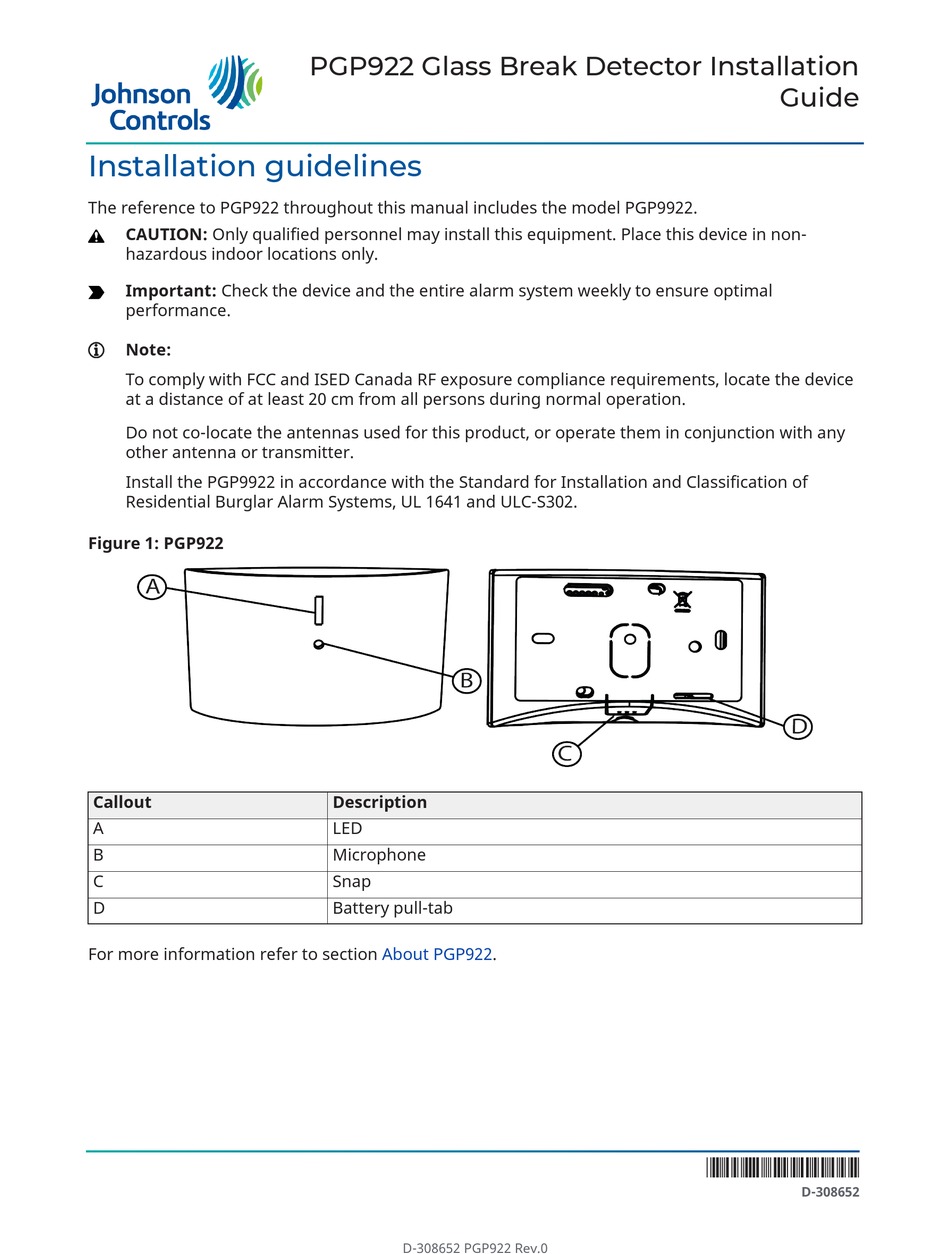

Figure 1: PGP922
Callout
A
B
C
D
For more information refer to section
PGP922 Glass Break Detector Installation
Description
LED
Microphone
Snap
Battery pull-tab
About
PGP922.
D-308652 PGP922 Rev.0
Guide
*D-308652*
D-308652
Advertisement
Table of Contents
Related Manuals for Johnson Controls PGP922
Summary of Contents for Johnson Controls PGP922
- Page 1 PGP922 Glass Break Detector Installation Guide Installation guidelines The reference to PGP922 throughout this manual includes the model PGP9922. CAUTION: Only qualified personnel may install this equipment. Place this device in non- hazardous indoor locations only. Important: Check the device and the entire alarm system weekly to ensure optimal performance.
- Page 2 Avoid rooms smaller than 3 x 3 m (10 x 10 ft) and rooms with multiple noise sources such as small kitchens, glass booths noisy areas, garages, and small bathrooms. • Do not install in humid rooms. The PGP922 is not hermetically sealed. Excess moisture on the electronic board can shorten the circuit and cause false alarms. •...
- Page 3 Scan the QR Code on the device box, using the IQ4 camera if available, or see step b. Manually enter the device ID, printed on the product label, in the format 162-XXXX. The PGP922 is enrolled with device ID 162-XXXX. In fall back mode it enrolls as PGx922 with device ID 161-XXXX.
-
Page 4: Configuring The Device Parameters
1 °C (1.8 °F) below threshold for at least the Restore Delay duration. Note: The default threshold value for freezer is -10°C (14°F). Optional settings: See Configuring the Temperature Alerts. PGP922 Glass Break Detector Installation Guide D-308652 PGP922 Rev.0... - Page 5 Peel the release liners off the two strips of double-sided adhesive tape and attach the tape to the back of the device. See the following figure. Figure 2: Double-sided adhesive tape placement on the device Callout Description Double-sided adhesive tape Place the device on the desired surface. PGP922 Glass Break Detector Installation Guide D-308652 PGP922 Rev.0...
- Page 6 7.6 m (25 ft) 7 m (23 ft) 5.5 m (18 ft) 4 m (13ft) 2.5 m (8 ft) 0 m (0 ft) Figure 4: Angle between device and window Callout Description Device Window PGP922 Glass Break Detector Installation Guide D-308652 PGP922 Rev.0...
- Page 7 Callout Description Screwing device base Break-away segment Up arrow Clip the cover on the device base and tighten the cover screw. See the following figure. Figure 6: Closing the device cover PGP922 Glass Break Detector Installation Guide D-308652 PGP922 Rev.0...
-
Page 8: Replacing The Battery
Important: Reliable reception must be assured. Therefore, poor signal strength is not acceptable. If you receive a poor signal from the device, relocate it and re-test until a strong signal strength is received . PGP922 Glass Break Detector Installation Guide D-308652 PGP922 Rev.0... - Page 9 Testing the Glass Break sensor About this task: The PGP922 detects when framed glass mounted on an outside wall shatters. Testing the sensor with unframed glass, broken bottles, etc. might not trip the sensor. False alarms such as glass breaking in the middle of a room will not activate the sensor.
-
Page 10: Specifications
Room acoustics can artificially extend the range of a glass-break sensor. The specified range of the PGP922 has been established for worst-case conditions. While the sensor is likely to function at an additional range, it may miss a minimum output break, or room acoustics may be changed at some future time, restoring sensor coverage back to the normal range of 6 m (20 ft). - Page 11 Room Size Not larger than 12 x 12 m (40 x 40 ft) Not smaller than 3 x 3 m (10 x 10 ft) Min. Distance from Glass 1.5 m (5 ft) PGP922 Glass Break Detector Installation Guide D-308652 PGP922 Rev.0...
-
Page 12: Compliance With Standards
Compliance with standards The PGP922 complies with the following standards: PGP9922 FCC (912 to 919 MHz): 47CFR part 15.247 ISED Canada (912 to 919 MHz): RSS-247 UL/ULC: UL 634, ULC/ORD-C634 FCC and ISED Compliance Statement This device complies with FCC Rules Part 15 and with ISED Canada license-exempt RSS standard(s). -
Page 13: Limited Warranty
Directive 2012/19/EU Waste Electrical and Electronic Equipment. About PGP922 The PGP922 is a wireless PowerG two-way acoustic glass-break detector designed to detect the breaking of framed glass mounted in an outside wall. This device is wall or ceiling mountable and suitable for most types of window or door glass, including the following: plate, tempered, laminated, wired, coated, and sealed insulating glass. - Page 14 You may use the back up copy solely for archival purposes. Except as expressly provided in this EULA, You may not otherwise make copies of the SOFTWARE PRODUCT, including the printed materials accompanying the SOFTWARE. PGP922 Glass Break Detector Installation Guide D-308652 PGP922 Rev.0...
- Page 15 (a) NO WARRANTY DSC PROVIDES THE SOFTWARE "AS IS" WITHOUT WARRANTY. DSC DOES NOT WARRANT THAT THE SOFTWARE WILL MEET YOUR REQUIREMENTS OR THAT OPERATION OF THE SOFTWARE WILL BE UNINTERRUPTED OR ERROR-FREE. PGP922 Glass Break Detector Installation Guide D-308652 PGP922 Rev.0...
- Page 16 SOFTWARE PRODUCT to fail to perform as expected. Website: www.dsc.com Tech. support: 1-800- 387-3630 D-308652 Rev. 0 (02/22) ©2022 Johnson Controls. All rights reserved. JOHNSON CONTROLS, TYCO and DSC are trademarks and/or registered trademarks. Unauthorized use is strictly prohibited. D-308652 PGP922 Rev.0...
