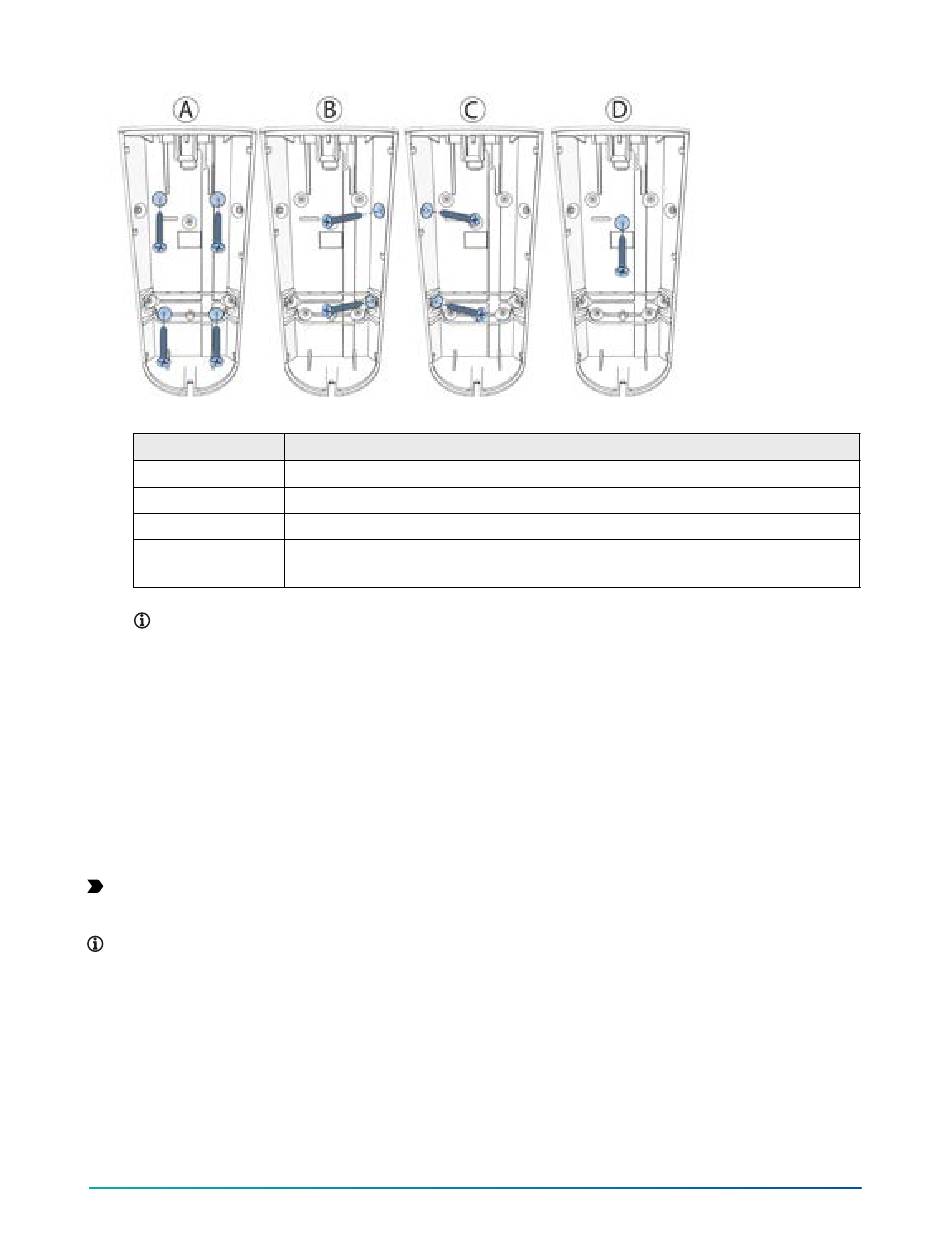

Figure 9: Mounting options
Callout
A
B
C
D
Note: For flat wall installation, use two screws diagonally to include the tamper option,
or two screws horizontally to exclude the tamper option. Four screws can also be used.
3. Press the base against the wall at the selected mounting position and mark the drilling points
through the mounting holes.
4. Drill the required holes.
5. Screw the base to the wall.
6. Close the device cover. See
Optional: Mounting the device using a bracket
For more information see the BR-1/2/3 manual (DE1781-).
Important: When mounted using the BR-1, BR-2, or BR-3 bracket, back tamper protection is
not available.
Note: Mounting the device using a bracket is not approved by EN.
1. To mount the device on a flat wall with the option to change the angle of the device, use the
BR-1 bracket. See the following figure for the assembly of the BR-1 bracket on the wall.
8 NEXT CAM PG+ Motion Detector with Integrated Camera Installation Guide
Description
Flat wall installation. See the note below the table.
Right corner installation.
Left corner installation.
BR-1/2/3 bracket installation. Use the screw from the BR-1/2/3
installation kit.
Figure 7.
