Johnson Controls LC-203 Quick Start Manual

1. INTRODUCTION
The new line of LC-203/BLC-203 and LC-204/BLC-204 detectors is the best choice for residential and commercial security installations: BLC-203 and BLC-
204 are not UL/ULC listed. They only use digital PIRs which bypass the conversion that usually must be done with traditional detectors where an analog PIR is
amplified and converted to digital. The FULLY digital technology helps the detector more accurately detect intrusions and not be affected by alterations in white
light, ultraviolet light, temperature and air movement caused by heating/cooling systems. It is also fully immune to radiated and conducted electromagnetic
interference. LC-203/BLC-203 and LC-204/BLC-204 detectors are equipped with lenses designed by Johnson Controls and are manufactured by Fresnel
Technologies, Inc. LODIFF optic creation technology combined with POLY IR
®
203 and LC-204/BLC-204 detectors are pet immune (feature not evaluated by UL/ULC) and have a 15 m range and a 100-degree detection range. LC-203/BLC-
203 includes mask detection.
White Light Protection
The detector digitally filters white light
components.
High RFI Protection
The detector has very high RFI immunity due to
the complete lack of traditional amplifiers.
POLY IR 4 Plastic Material
®
for Detection Stability
POLY IR ® lens material. This materials offers a better
combination of transmittance, environmental stability and
color than any other polymer on the market. Materials are
available for the 8-14 micron infrared region. LODIFF
POLY IR are registered trademarks of Fresnel Technologies,
®
Inc.

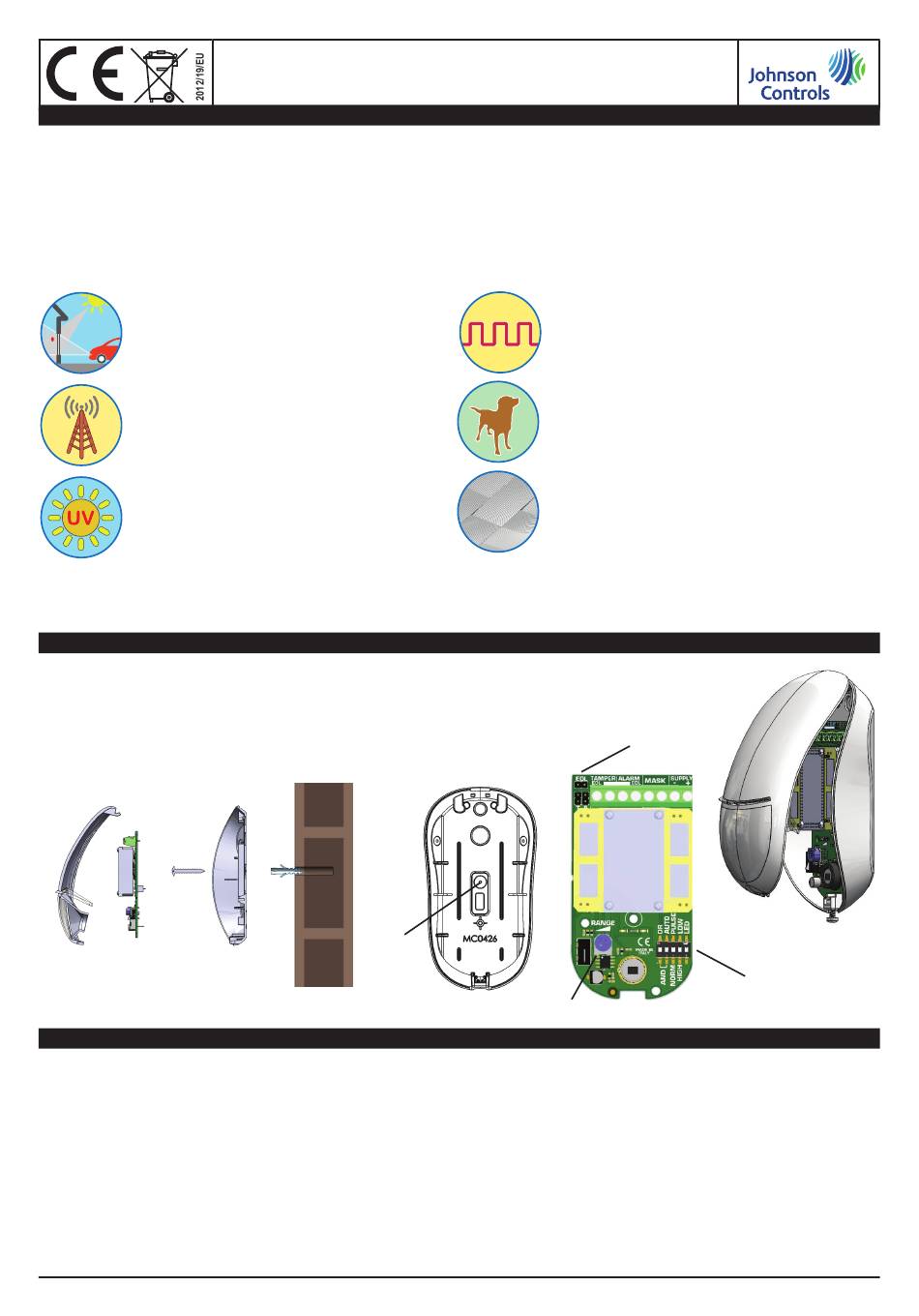

2. INSTALLATION
- Using a thin screwdriver, loosen the bottom screw and open the cover (see Fig 1)
- Remove the board from the plastic base by removing the screw on the board (see Fig 2)
- Open the knockouts needed for mounting onto the wall (or use the non-certified IMQ joint)
- Open the knockouts for removal protection and fix the anchor to the wall (see Fig 2)
- Recommended height is 2.1 m
- Run the connection cables through the bottom of the container and out the top
- Connect the wires on the board as described below
- Fig 2 -
NOTE: Do not partially or completely cover the detector's field of vision
NOTE: the pet function is not IMQ certified
3. MEANING OF THE LEDS
During normal operation, the LED signals are:
GREEN LED = PIR Alarm; YELLOW LED = MW Alarm; BLUE LED = General Alarm (both PIR and MW)
- LC-203/BLC-203: In the case of detector masking, the LED corresponding to the masked technology will flash, and the MASK alarm contacts open
LC-203/BLC-203 VERSION
The LC-203/BLC-203 provides continuous detector self-testing, in the case of an anomaly lasting longer than 15 seconds, the detector will report:
- POWER SUPPLY ABOVE THE NOMINAL THRESHOLDS:
Alternating flashing of YELLOW and GREEN LEDs and opening of the MASK contact
- INFRARED SELF-TEST FAILURE
Flashing of GREEN LED and opening of the MASK contact
- MICROWAVE SELF-TEST FAILURE
Flashing of YELLOW LED and opening of the MASK contact
ISTISJCEBLC2034 0.0
LC-203/BLC-203 and LC-204/BLC-204
DUAL TECHNOLOGY DETECTORS
and
®
Anchor
LC-203/BLC-203 and LC-204/BLC-204
® materials make it a product of the highest quality and efficiency. LC-203/BLC-
Fully Digital PIR
The detector has no analog components, and the fully
digital PIR interfaces directly with the microprocessor.
Pet Immunity
Thanks to a new lens design and the digital analysis
system, all of our detectors are immune to pets weighing
up to 15 kg.
LODIFF Fresnel Technology Lenses
®
This lens series is made by tiling LODIFF
These lenses offer significantly improved performance over
the typical constant-bandwidth Fresnel lens.
LODIFF and POLY IR
®
Fresnel Technologies, Inc.
Trimmer
1
lens pieces.
®
are registered trademarks of
®
- Fig 1 -
Jumpers
DIP Switch
Installation Instructions
